TOYOTA CRESTA JZX90-CEMVZ / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

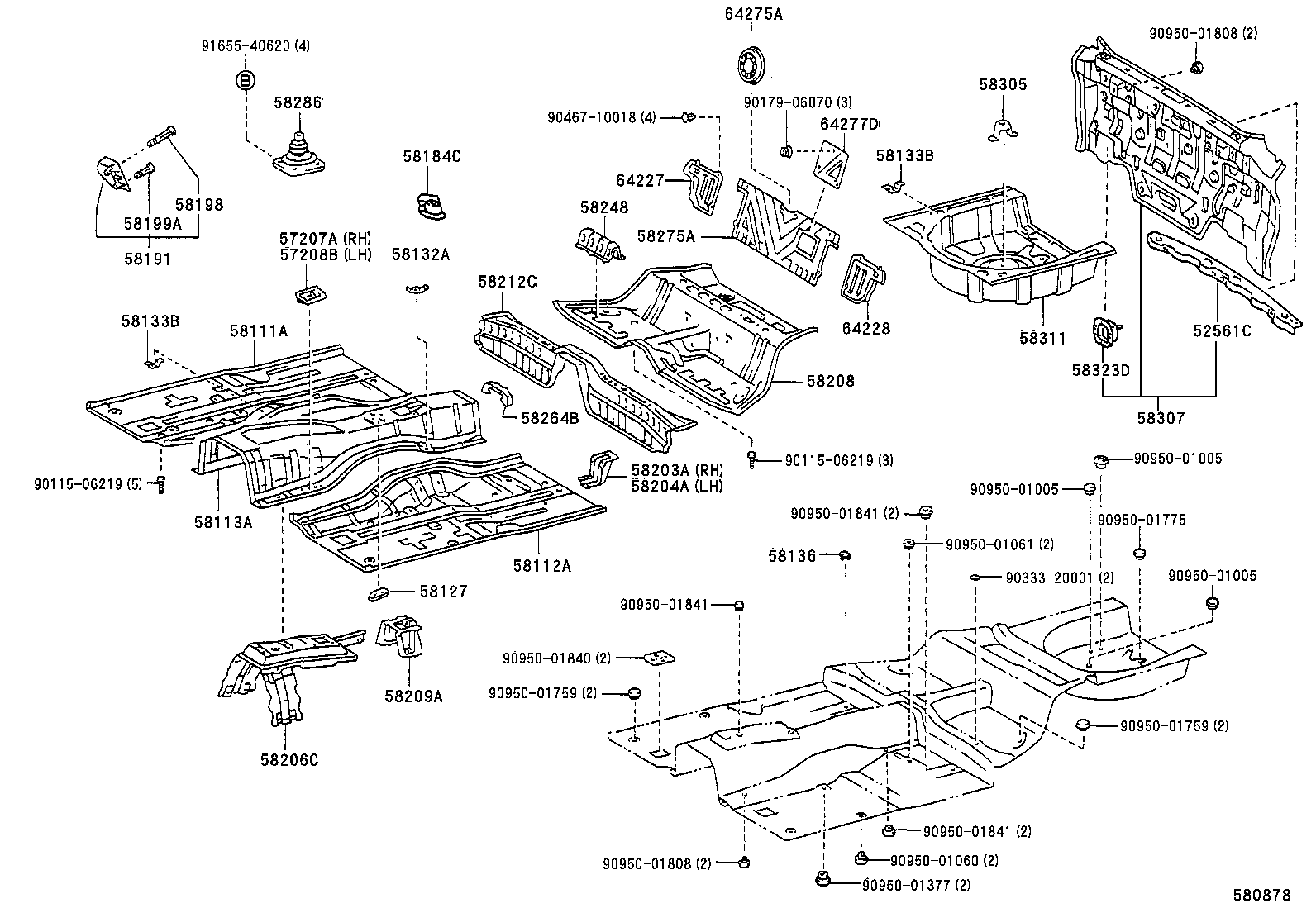

FLOOR PAN LOWER BACK PANEL

(9210- )

CRESTA | FLOOR PAN LOWER BACK PANEL 52561C - RETAINER, REAR BUMPER, UPPER CENTER 57207A - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH 57208B - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH 58111A - PAN, FRONT FLOOR, RH 58112A - PANEL, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58127 - PATCH, FRONT FLOOR PANEL 58132A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 58136 - COVER, FRONT FLOOR HOLE 58184C - BRACKET, FRONT SEAT MOUNTING, INNER LH 58191 - FOOTREST, FRONT FLOOR 58198 - CLIP, FOOTREST 58199A - CLIP, FOOTREST, NO.2 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH 58206C - COVER SUB-ASSY, TRANSMISSION, REAR 58208 - PAN, CENTER FLOOR 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT 58212C - PAN, CENTER FLOOR, FRONT 58248 - REINFORCEMENT, REAR SEAT CUSHION LOCK 58264B - BRACKET, PARKING BRAKE CABLE GUIDE 58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58323D - REINFORCEMENT, REAR BUMPER ARM SUPPORT 64227 - EXTENSION, CENTER FLOOR TO BRACE 64228 - EXTENSION, CENTER FLOOR TO BRACE, NO.2 64275A - COVER, ROOM PARTITION 64277D - COVER, ROOM PARTITION, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
