TOYOTA CROWN GS130H-AEPQD / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

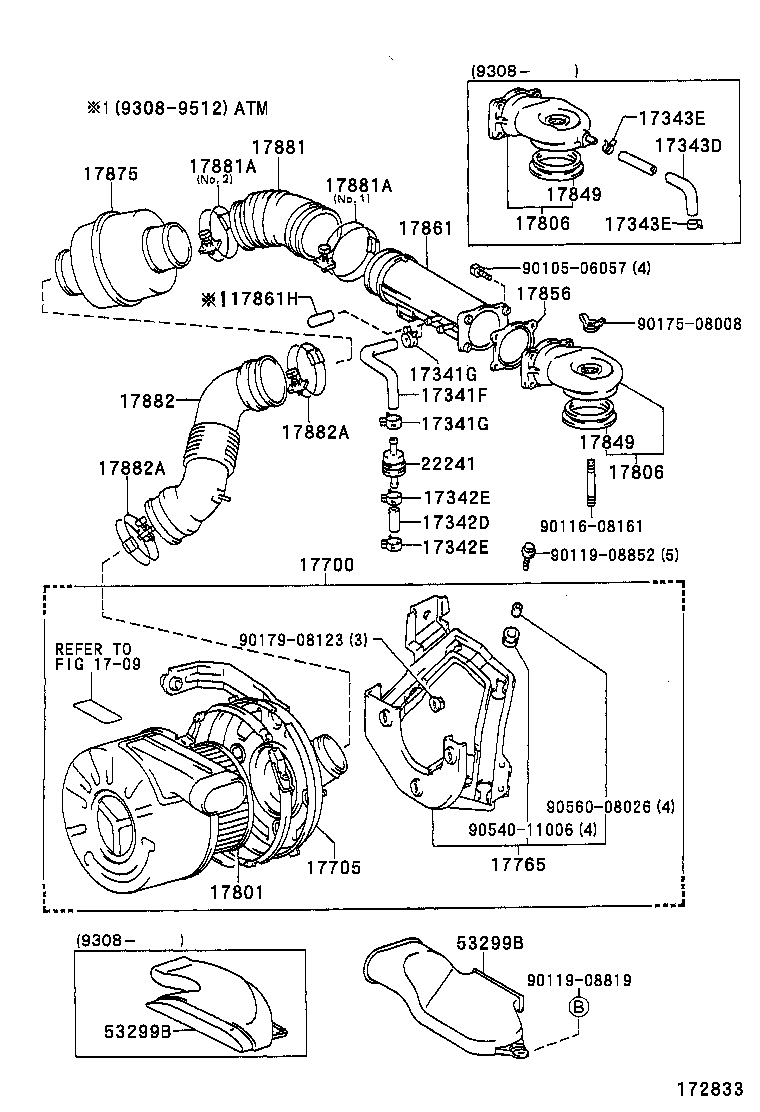

AIR CLEANER

(9112-9512)1GGP

CROWN | AIR CLEANER ** Refer Fig 17341F - HOSE, AIR, NO.1 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17342D - HOSE, AIR, NO.2 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17343D - HOSE, AIR, NO.3 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17765 - STAY, AIR CLEANER, NO.1 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 17849 - GASKET, INTAKE AIR CONNECTOR 17849 - GASKET, INTAKE AIR CONNECTOR 17856 - GASKET, AIR INTAKE FLANGE 17861 - CONNECTOR, INTAKE AIR 17861H - PLUG(FOR INTAKE AIR CONNECTOR) 17875 - PIPE, INTAKE AIR CONNECTOR 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 22241 - LIMITTER VACUUM 53299B - DUCT, COOL AIR INTAKE 53299B - DUCT, COOL AIR INTAKE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
