TOYOTA MARK 2 YX80-AEPNP / TOOL-ENGINE-FUEL / LPG OR CNG REGULATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

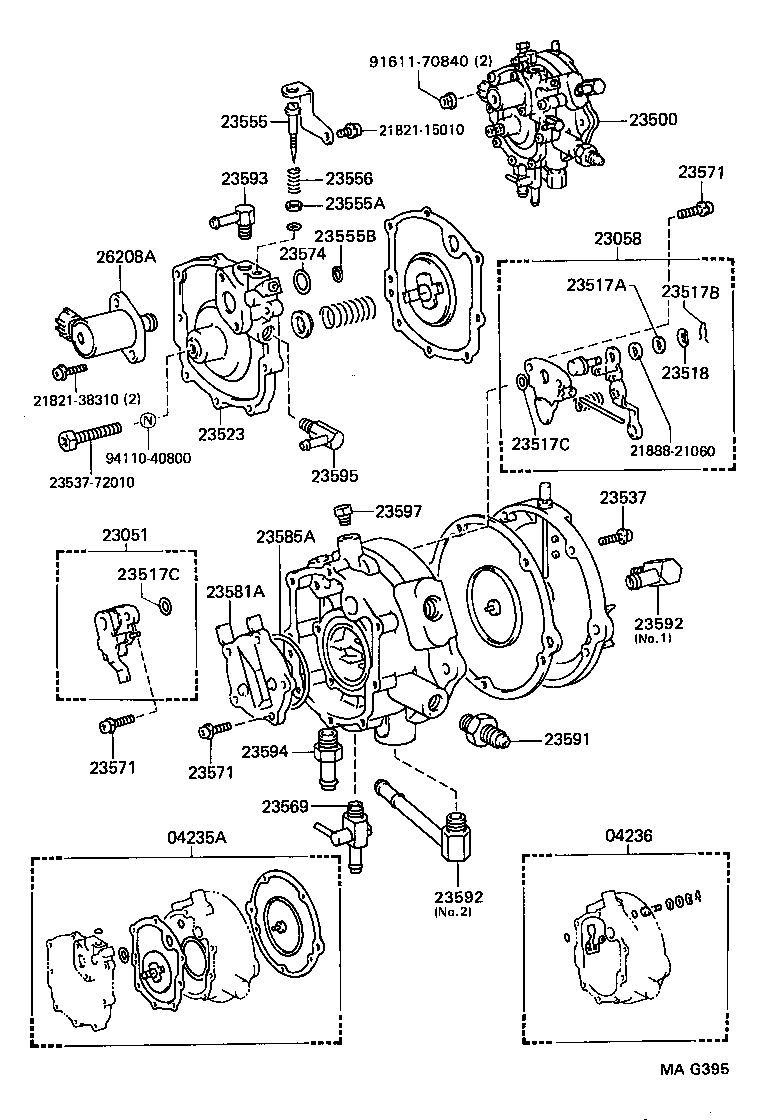

LPG OR CNG REGULATOR

(9302- )3YP..GL ; (9305- )3YP..KYO

MARK 2 | LPG OR CNG REGULATOR 04235A - DIAPHRAGM KIT, LPG REGULATOR, W/O VALVE 04236 - VALVE KIT, LPG REGULATOR ** Std Part ** Std Part ** Std Part 23051 - VALVE SUB-ASSY, 1ST 23058 - VALVE SUB-ASSY, 2ND 23500 - REGULATOR ASSY, LPG(CNG) 23517A - WASHER(FOR ELASTIC FACE VALVE SET) 23517B - RING, SNAP(FOR ELASTIC FACE VALVE SET) 23517C - GASKET(FOR ELASTIC FACE VALVE) 23517C - GASKET(FOR ELASTIC FACE VALVE) 23518 - WASHER, WAVE(FOR ELASTIC FACE VALVE SET) 23523 - COVER, 1ST REGULATOR 23537 - SCREW(FOR 2ND REGULATOR COVER SET) ** Std Part 23555 - SCREW, IDLE ADJUST 23555A - WASHER, IDLE ADJUST SCREW 23555B - RING, O(FOR IDLE ADJUST SCREW) 23556 - SPRING, IDLE ADJUST SCREW 23569 - COCK, DRAIN 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) 23574 - RING, O, NO.1(FOR BULB) 23581A - COVER, UPPER PREHEATER 23585A - RING, O(FOR PREHEATER) 23591 - UNION, NO.1, FUEL 23592 - UNION, NO.2, FUEL HOSE 23592 - UNION, NO.2, FUEL HOSE 23593 - UNION, NO.3 23594 - UNION, NO.4, WATER HOSE 23595 - UNION, NO.5 23597 - PLUG, LPG REGULATOR BODY 26208A - VALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR) ** Std Part ** Std Part
