TOYOTA MARK 2 YX80Y-AEPRP / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

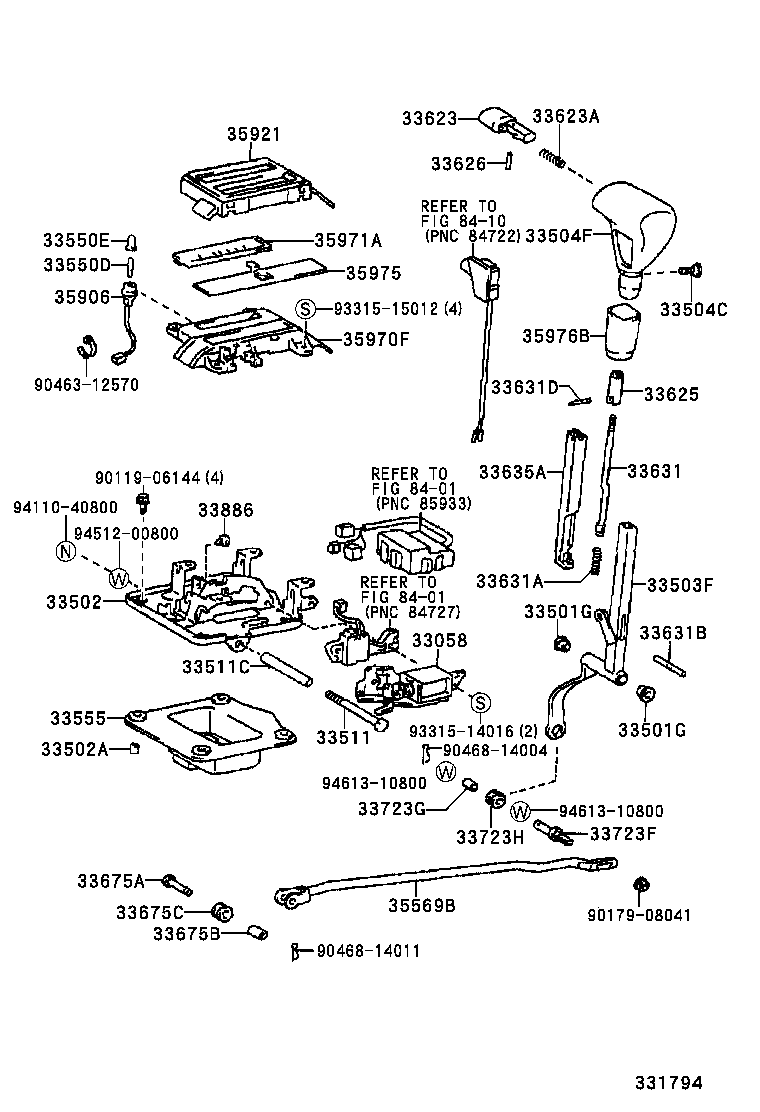

SHIFT LEVER RETAINER

(9302-9305)4FC..GD,GL,GR ; (9305- )4FC

MARK 2 | SHIFT LEVER RETAINER 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33502 - PLATE SUB-ASSY, SHIFT LEVER 33502A - COLLAR (FOR FLOOR SHIFT SETTING) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33511C - COLLAR (FOR CONTROL SHAFT) 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33555 - BOOT, SHIFT LEVER 33623 - BUTTON, SHIFT LEVER KNOB 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) 33625 - SLEEVE, SHIFT LEVER KNOB 33626 - STOPPER, SHIFT LEVER BUTTON 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) 33886 - STOPPER, SHIFT LEVER 35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35970F - HOUSING ASSY, POSITION INDICATOR 35971A - HOUSING, POSITION INDICATOR, UPPER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
