TOYOTA CAMRY VISTA CV40-AEMGX / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

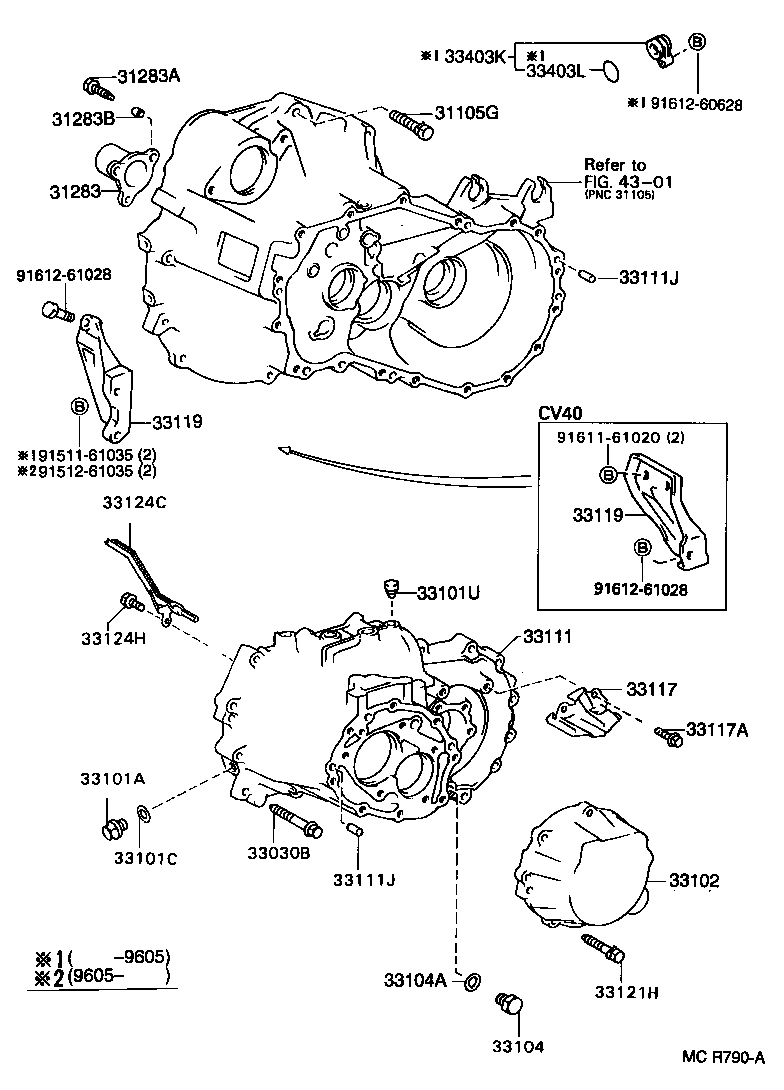

CLUTCH HOUSING TRANSMISSION CASE MTM

S50,S51 (9406- )CV40,SV40..MTM

CAMRY VISTA | CLUTCH HOUSING TRANSMISSION CASE MTM 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 31283 - RETAINER, CLUTCH RELEASE BEARING HUB 31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER) 31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER) 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE 33104 - PLUG SUB-ASSY, DRAIN(MTM) 33104A - GASKET, DRAIN PLUG(MTM) 33111 - CASE, MANUAL TRANSMISSION 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33117 - PROTECTOR, MANUAL TRANSMISSION CASE 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) 33119 - PLATE, STIFFENER, LH(MTM) 33119 - PLATE, STIFFENER, LH(MTM) 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) 33124C - PIPE, OIL RECEIVER, NO.1(MTM) 33124H - BOLT(FOR OIL RECEIVER PIPE) 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE 33403L - RING, O ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
