TOYOTA HILUX VZN130G-GKPQE / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

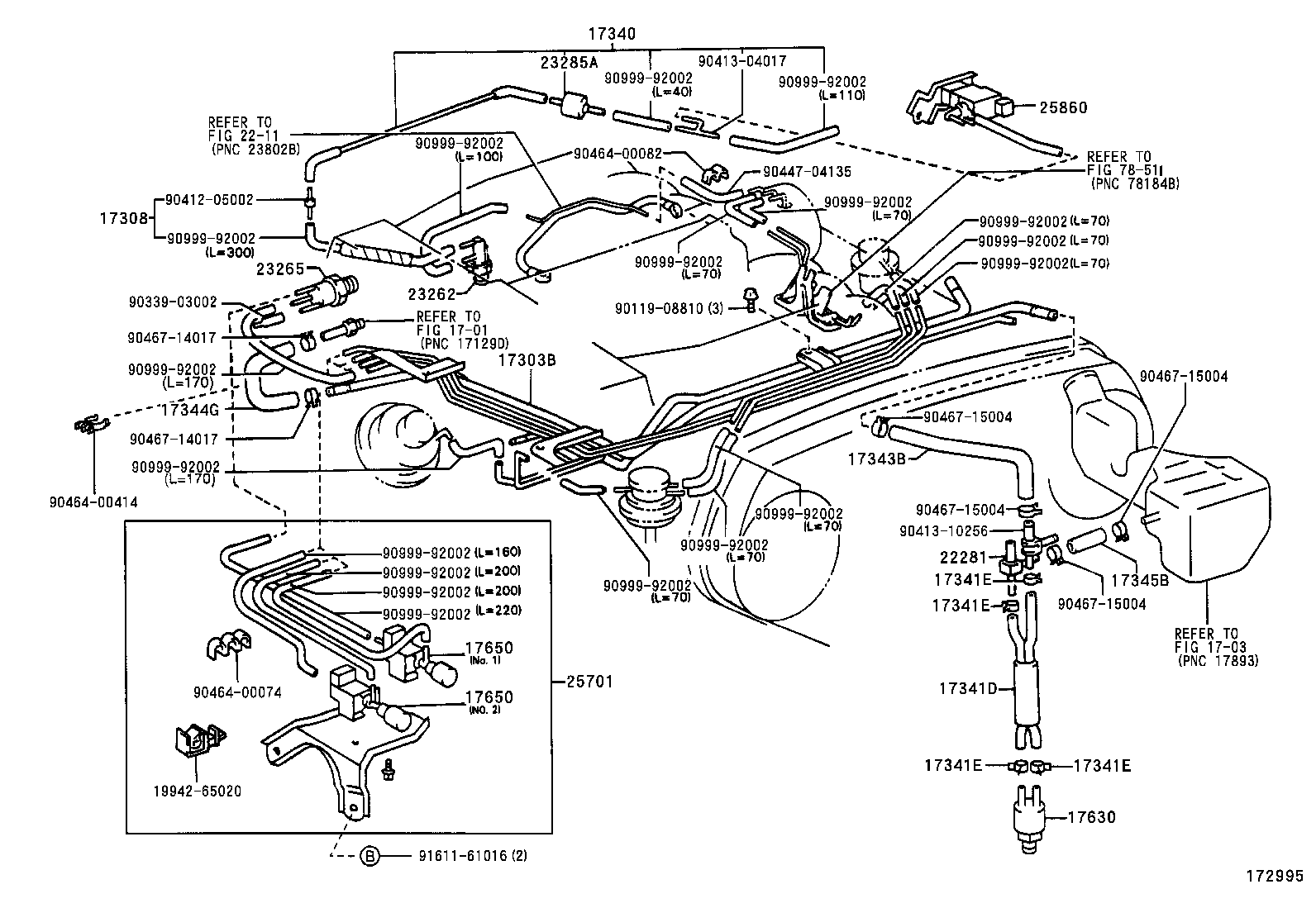

VACUUM PIPING

(9108-9511)3VZE

HILUX | VACUUM PIPING ** Refer Fig ** Refer Fig 17303B - PIPE SUB-ASSY, AIR, NO.1 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) 17340 - HOSE ASSY, VACUUM SWITCHING VALVE 17341D - HOSE, NO.1(FOR IDLE-UP) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17343B - HOSE, NO.3(FOR IDLE-UP) 17344G - HOSE, AIR, NO.4 17345B - HOSE, NO.5(FOR IDLE-UP) 17630 - VALVE ASSY, AIR CONTROL 17650 - VALVE ASSY, VACUUM SWITCHING 17650 - VALVE ASSY, VACUUM SWITCHING ** Std Part ** Refer Fig 22281 - WAY, AIR DELIVERY 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 23265 - FILTER, GAS, NO.1 23285A - VALVE, CHECK, NO.1 25701 - VALVE SET, EMISSION CONTROL 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
