TOYOTA RAV4 SXA10G-AZPGK / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SHIFT LEVER RETAINER

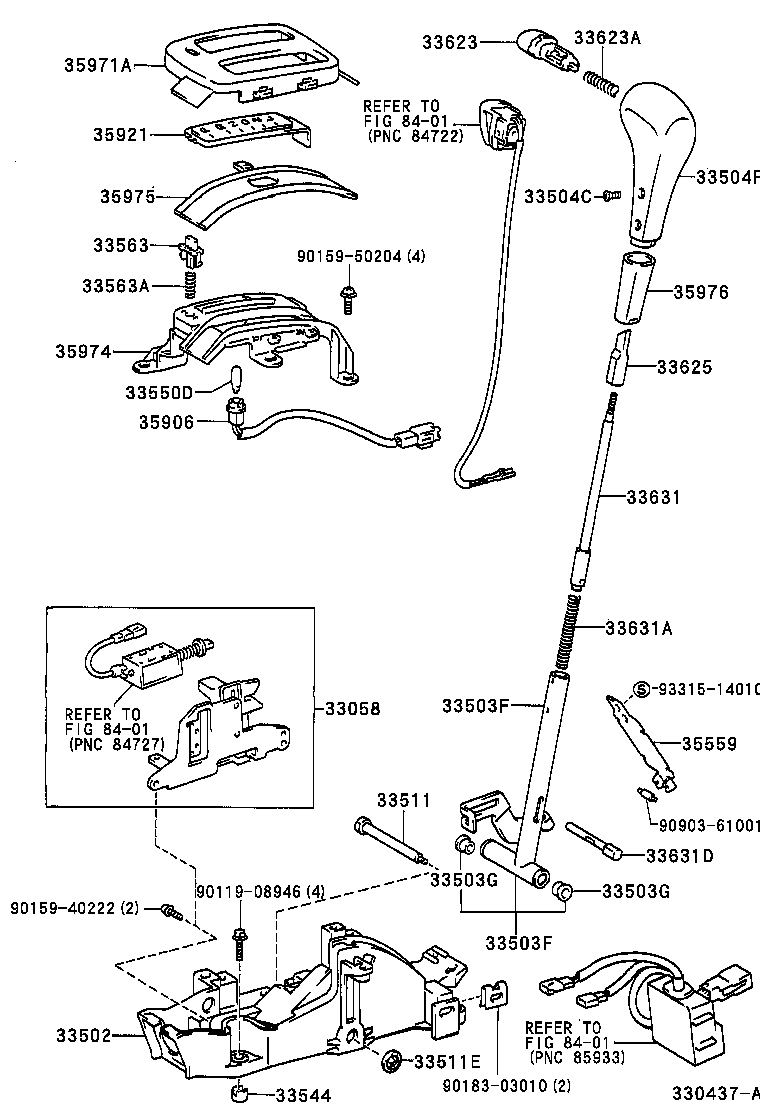

ILLUST NO. 1 OF 2(9404-9709)ATM

 RAV4 |  SHIFT LEVER RETAINER 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID 33502 - PLATE SUB-ASSY, SHIFT LEVER 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33503G - BUSH(FOR SHIFT LEVER) 33503G - BUSH(FOR SHIFT LEVER) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33511E - RING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT) 33544 - INSERT, SHIFT LEVER, NO.1 33550D - BULB, POSITION INDICATOR LAMP 33563 - BUTTON, SHIFT LOCK RELEASE 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) 33623 - BUTTON, SHIFT LEVER KNOB 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) 33625 - SLEEVE, SHIFT LEVER KNOB 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 35559 - SPRING, MANUAL DETENT 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35971A - HOUSING, POSITION INDICATOR, UPPER 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
