TOYOTA CROWN CROWN MAJESTA JZS143-ATAXF / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

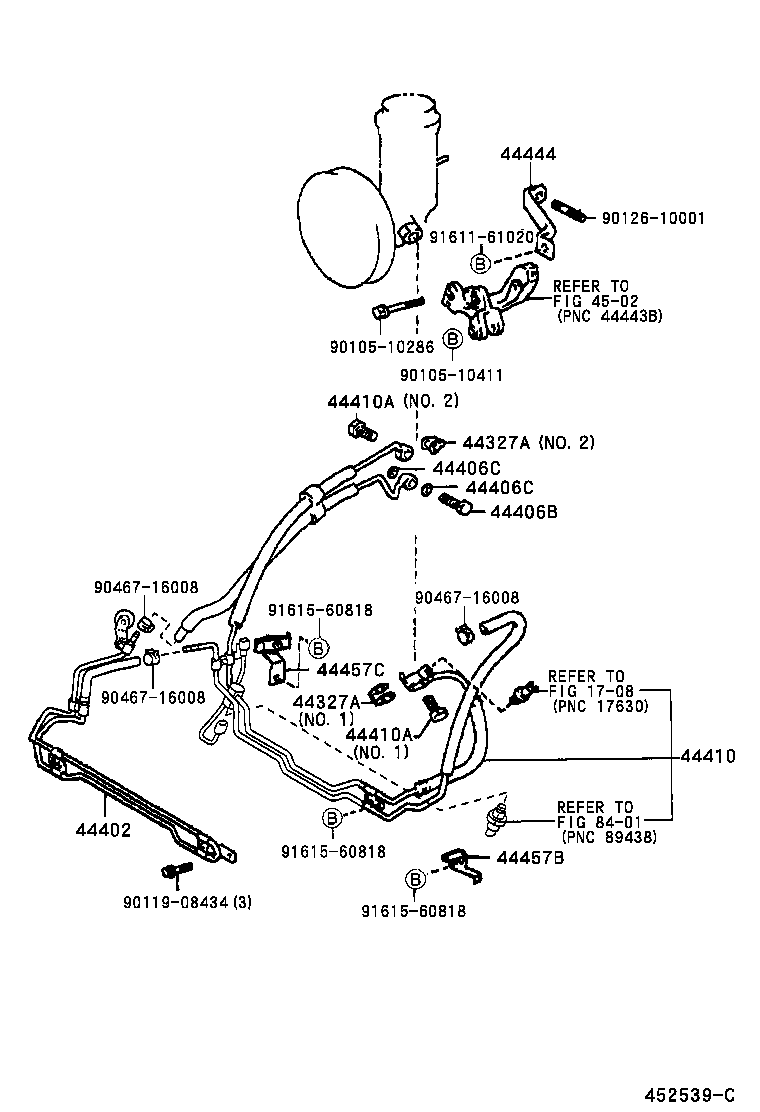

POWER STEERING TUBE

(9110- )JZS143,145

CROWN CROWN MAJESTA | POWER STEERING TUBE ** Refer Fig 44327A - GASKET, PRESSURE PORT, NO.1 44327A - GASKET, PRESSURE PORT, NO.1 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 44406B - BOLT, UNION(FOR RETURN TUBE) 44406C - GASKET(FOR RETURN TUBE) 44406C - GASKET(FOR RETURN TUBE) 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44444 - STAY, PUMP, REAR 44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
