TOYOTA CROWN CROWN MAJESTA JZS155-CTPZF / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

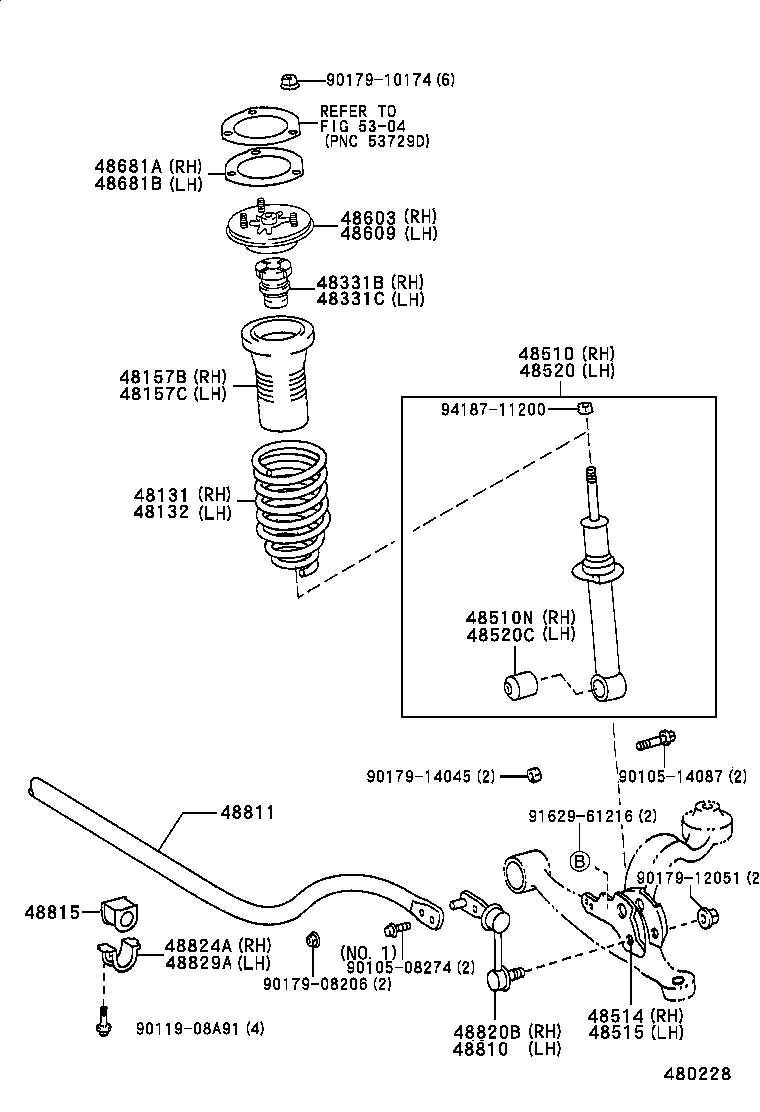

FRONT SPRING SHOCK ABSORBER

(9508- )A,E,F

CROWN CROWN MAJESTA | FRONT SPRING SHOCK ABSORBER 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH 48331B - BUMPER, FRONT SPRING, RH 48331C - BUMPER, FRONT SPRING, LH 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH 48681A - GASKET, FRONT SUSPENSION SUPPORT, RH 48681B - GASKET, FRONT SUSPENSION SUPPORT, LH 48810 - LINK ASSY, FRONT STABILIZER, LH 48811 - BAR, STABILIZER, FRONT 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48820B - LINK ASSY, FRONT STABILIZER, RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48829A - BRACKET, FRONT STABILIZER, NO.1 LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
