TOYOTA CROWN CROWN MAJESTA LS151H-ATPST / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

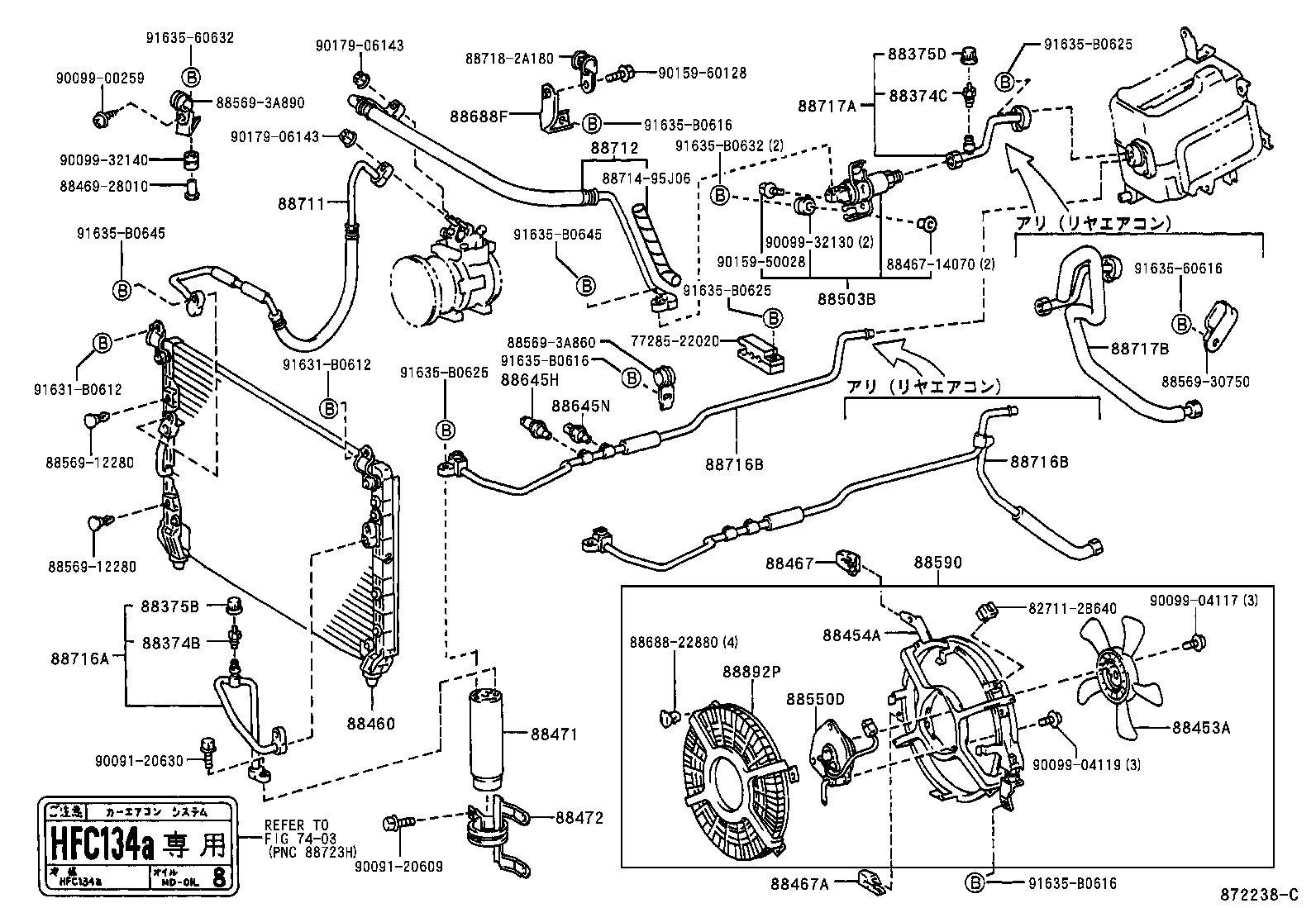

ﾌﾛﾝﾄ ILLUST NO. 1 OF 2(9508- )LS151

CROWN CROWN MAJESTA | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Std Part ** Std Part 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88453A - FAN, COOLING 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88467 - CUSHION, COOLER CONDENSER, NO.1 ** Std Part 88467A - CUSHION, COOLER CONDENSER, NO.2 ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88503B - REGULATOR SUB-ASSY, PRESSURE 88550D - MOTOR ASSY, BLOWER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88590 - BLOWER ASSY, W/SHROUD 88645H - SWITCH, PRESSURE NO.1 88645N - SWITCH, PRESSURE NO.2 ** Std Part 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 ** Std Part 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B ** Std Part 88892P - NET, FAN SHROUD ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
