TOYOTA CROWN CROWN MAJESTA LS151H-ATPST / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

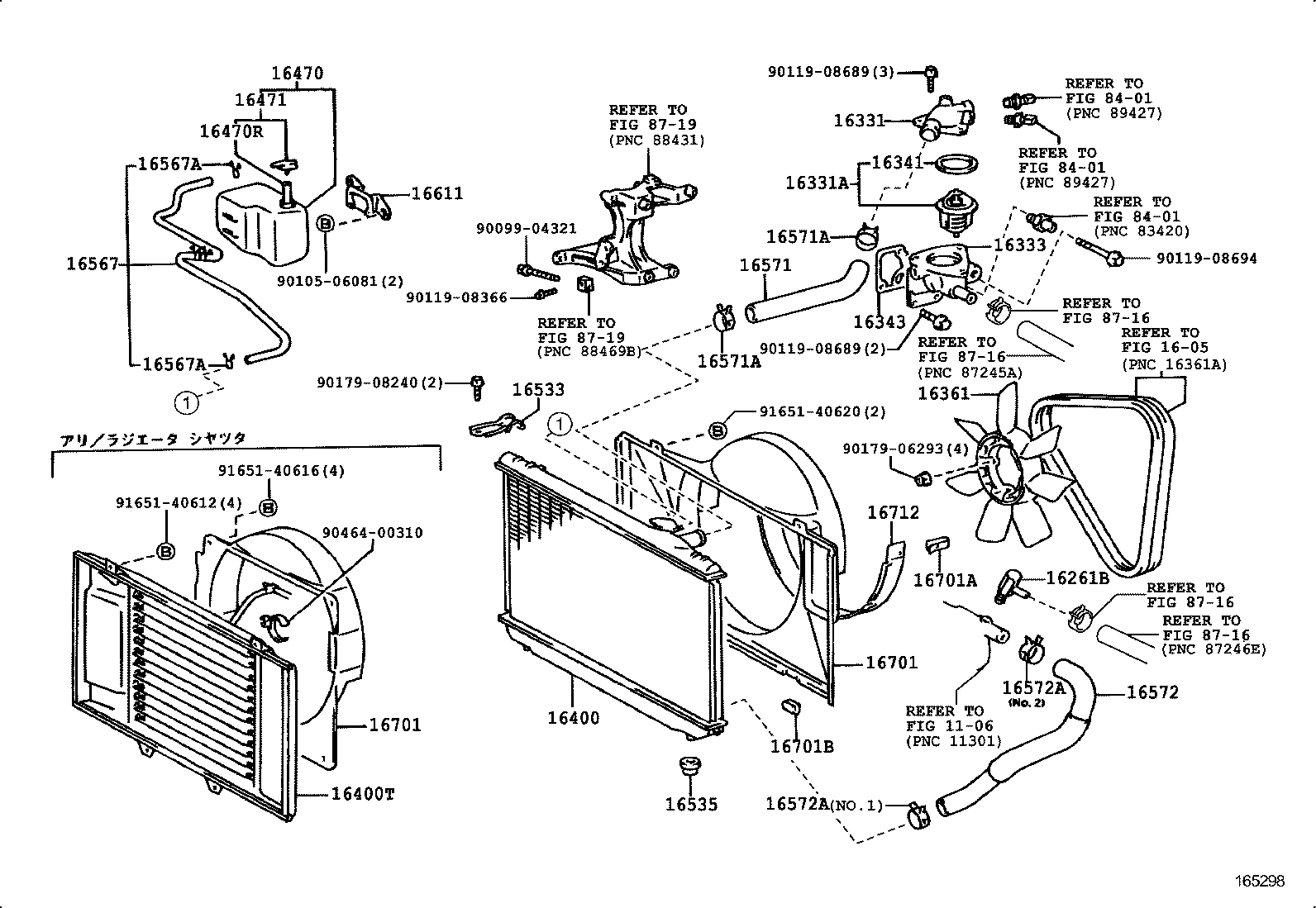

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(9508- )2LTE

CROWN CROWN MAJESTA | RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig 16261B - UNION(FOR WATER BY-PASS HOSE) 16331 - OUTLET, WATER 16331A - THERMOSTAT 16333 - HOUSING, WATER OUTLET 16341 - GASKET, WATER OUTLET 16343 - GASKET, WATER OUTLET HOUSING 16361 - FAN 16400 - RADIATOR ASSY 16400T - SHUTTER ASSY, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16611 - BRACKET, RADIATOR RESERVE TANK 16701 - SHROUD SUB-ASSY, FAN 16701 - SHROUD SUB-ASSY, FAN 16701A - CLIP(FOR FAN SHROUD) 16701B - CUSHION, FAN SHROUD 16712 - SHROUD, FAN, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
