TOYOTA DYNA TOYOACE BU68DH-MDKTUJ3 / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

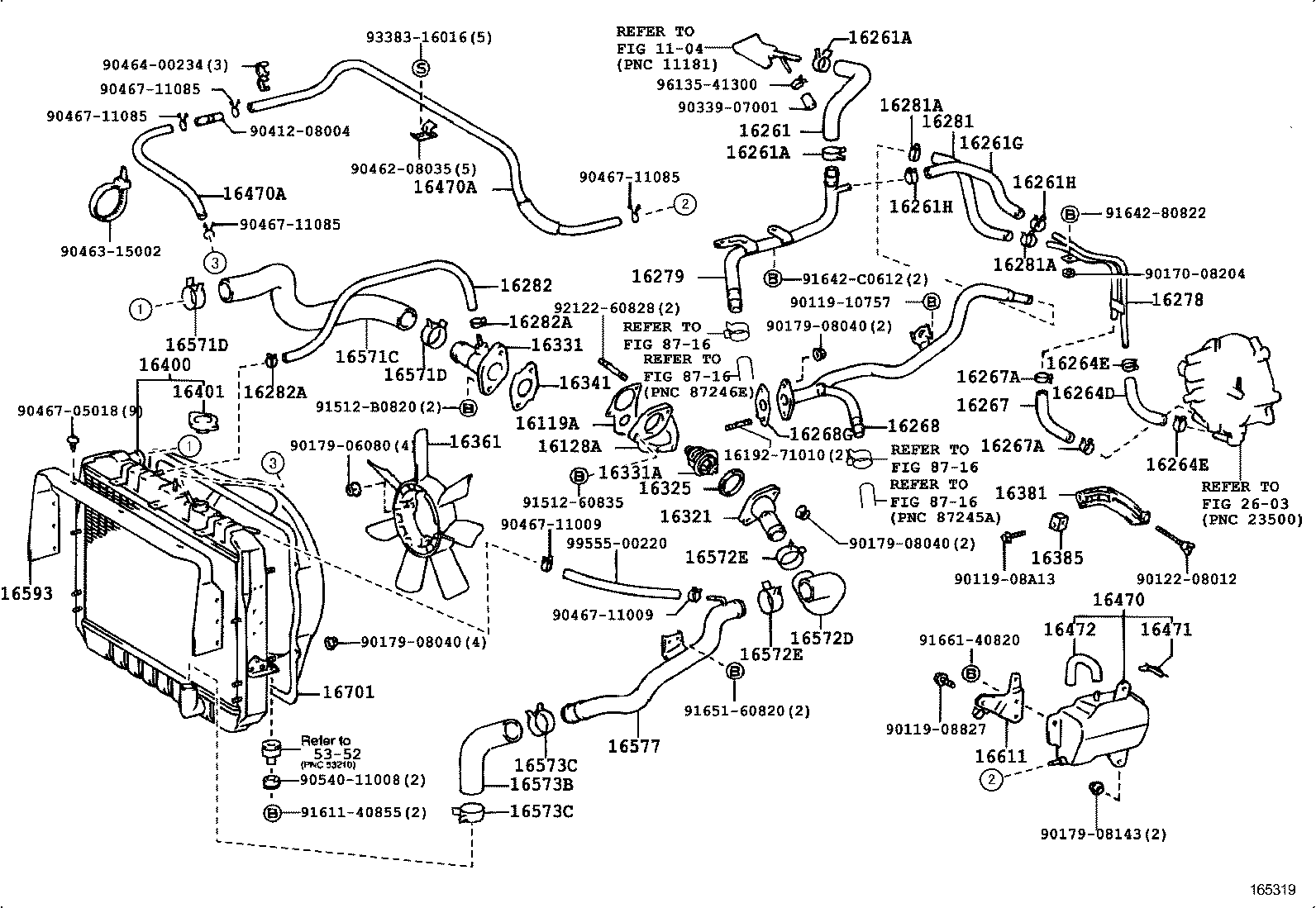

RADIATOR WATER OUTLET

(9311- )27LPG

DYNA TOYOACE | RADIATOR WATER OUTLET ** Refer Fig 16119A - GASKET, THERMOSTAT GUIDE 16128A - PLATE, WATER PUMP THERMOSTAT GUIDE ** Std Part 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16264D - HOSE, WATER BY-PASS, NO.2 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268 - PIPE, WATER BY-PASS, NO.1 16268G - GASKET(FOR WATER BY-PASS PIPE) 16278 - PIPE, WATER BY-PASS, NO.2 16279 - PIPE, WATER BY-PASS, NO.3 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16385 - SLIDER, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16401 - CAP SUB-ASSY, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16577 - PIPE, RADIATOR, NO.7 16593 - GUIDE, RADIATOR AIR, NO.1 16611 - BRACKET, RADIATOR RESERVE TANK 16701 - SHROUD SUB-ASSY, FAN ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
