TOYOTA GRANVIA GRAND HIACE KCH16W-GFSQT / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(9510-9606)KCH16

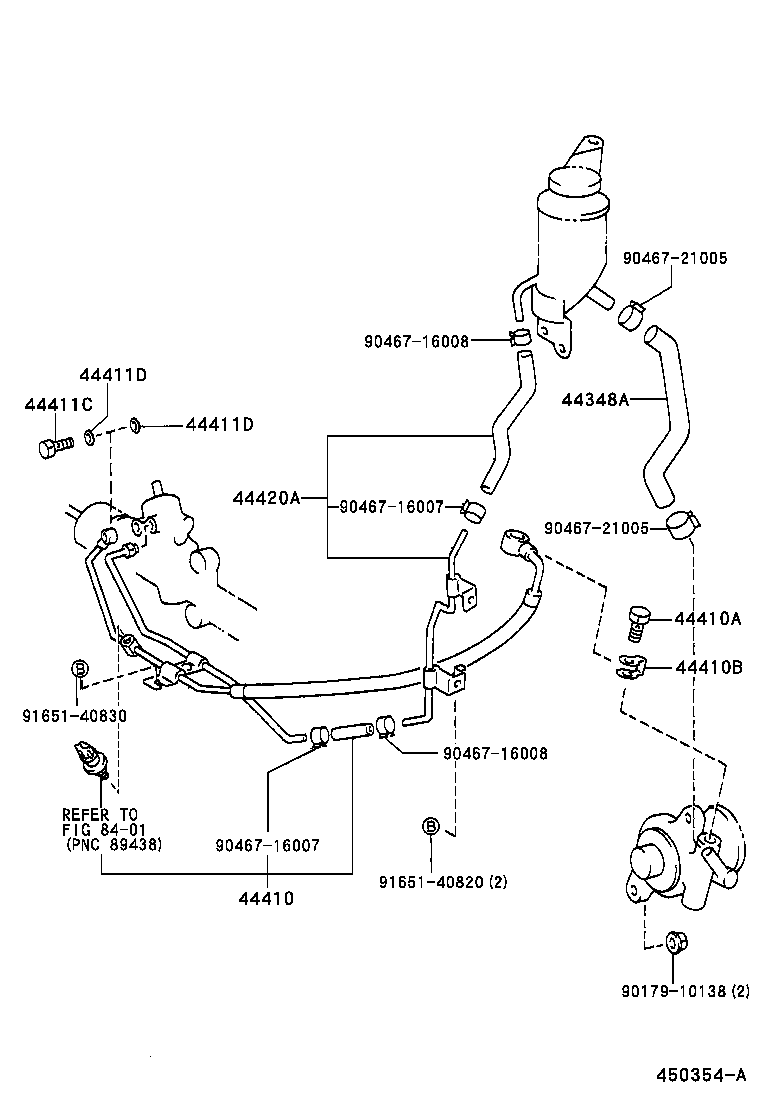

GRANVIA GRAND HIACE | POWER STEERING TUBE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44420A - TUBE ASSY, RETURN ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
