TOYOTA LAND CRUISER VAN FZJ80G-GCPNK / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

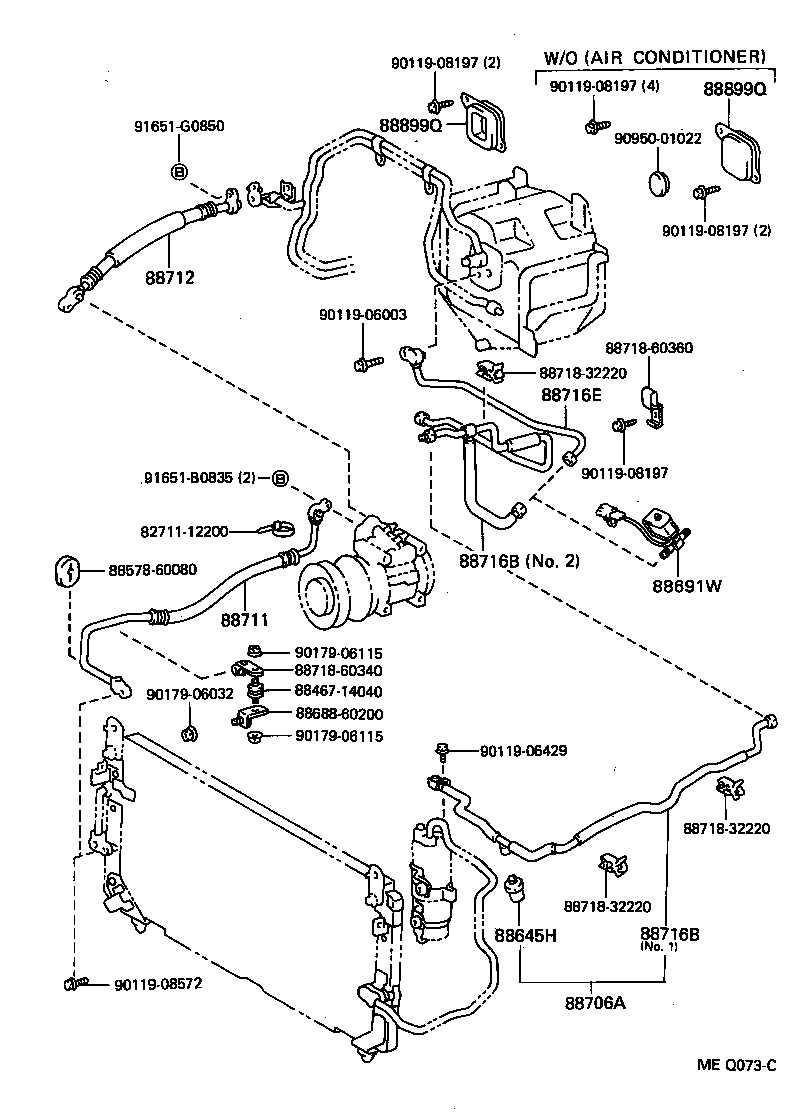

FRONT PIPING ﾒ-ｶ ｵﾌﾟｼﾖﾝ ILLUST NO. 2 OF 4(9001-9501)FJ80,FZJ80

LAND CRUISER VAN | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Std Part ** Std Part 88645H - SWITCH, PRESSURE NO.1 ** Std Part 88691W - VALVE, MAGNET 88706A - TUBE SUB-ASSY, LIQUID, A 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88899Q - PLATE, COVER 88899Q - PLATE, COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
