TOYOTA SPRINTER CARIB AE95G-CWPDH / POWERTRAIN-CHASSIS / HEIGHT CONTROL AUTO LEVELER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEIGHT CONTROL AUTO LEVELER

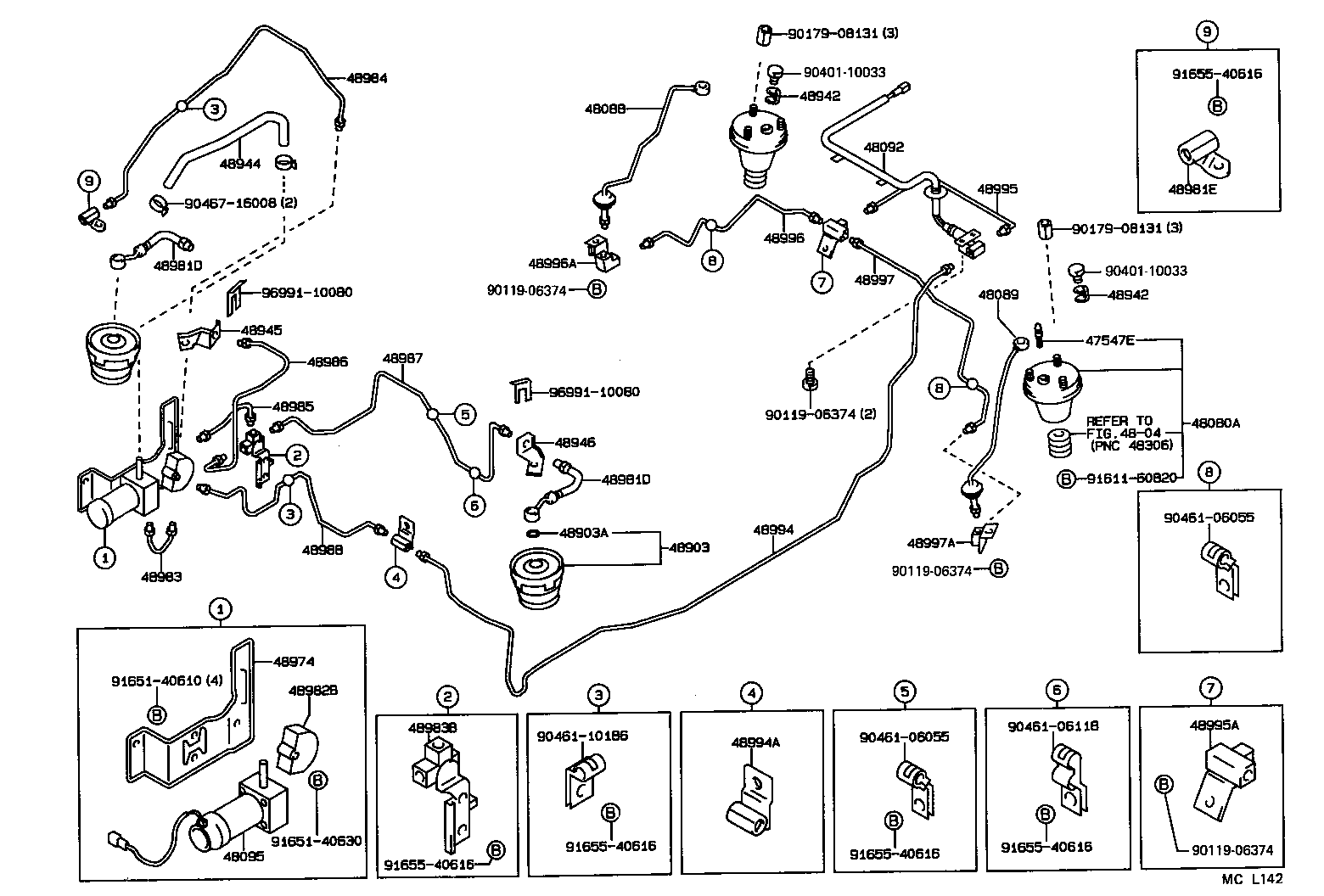

ILLUST NO. 1 OF 2(9009- )

SPRINTER CARIB | HEIGHT CONTROL AUTO LEVELER 47547E - PLUG, BLEEDER(FOR HEIGHT CONTROL CYLINDER) ** Refer Fig 48080A - CYLINDER ASSY, HEIGHT CONTROL, REAR 48088 - TUBE SUB-ASSY, HEIGHT CONTROL, NO.1 48089 - TUBE SUB-ASSY, HEIGHT CONTROL, NO.2 48092 - SENSOR SUB-ASSY, HEIGHT CONTROL 48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1 48903 - CYLINDER SUB-ASSY, HEIGHT CONTROL, FRONT 48903A - RING, O(FOR FRONT HEIGHT CONTROL CYLINDER) 48942 - GASKET, HEIGHT CONTROL UNION 48942 - GASKET, HEIGHT CONTROL UNION 48944 - HOSE, HEIGHT CONTROL, NO.2 48945 - BRACKET, HEIGHT CONTROL HOSE, RH 48946 - BRACKET, HEIGHT CONTROL HOSE, LH 48974 - BRACKET, HEIGHT CONTROL VALVE 48981D - HOSE, FLEXIBLE, NO.1(FOR FRONT HEIGHT CONTROL) 48981D - HOSE, FLEXIBLE, NO.1(FOR FRONT HEIGHT CONTROL) 48981E - WAY, NO.1(FOR FRONT HEIGHT CONTROL TUBE) 48982B - WAY, NO.2(FOR FRONT HEIGHT CONTROL TUBE) 48983 - TUBE, HEIGHT CONTROL, NO.3 48983B - WAY, NO.3(FOR FRONT HEIGHT CONTROL TUBE) 48984 - TUBE, HEIGHT CONTROL, NO.4 48985 - TUBE, HEIGHT CONTROL, NO.5 48986 - TUBE, HEIGHT CONTROL, NO.6 48987 - TUBE, HEIGHT CONTROL, NO.7 48988 - TUBE, HEIGHT CONTROL, NO.8 48994 - TUBE, HEIGHT CONTROL, REAR NO.1 48994A - WAY, NO.1(FOR REAR HEIGHT CONTROL TUBE) 48995 - TUBE, HEIGHT CONTROL, REAR NO.2 48995A - WAY, NO.2(FOR REAR HEIGHT CONTROL TUBE) 48996 - TUBE, HEIGHT CONTROL, REAR NO.3 48996A - WAY, NO.3(FOR REAR HEIGHT CONTROL TUBE) 48997 - TUBE, HEIGHT CONTROL, REAR NO.4 48997A - WAY, NO.4(FOR REAR HEIGHT CONTROL TUBE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
