TOYOTA TOYOACE DYNA YY61-PDGTU3 / TOOL-ENGINE-FUEL / LPG CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

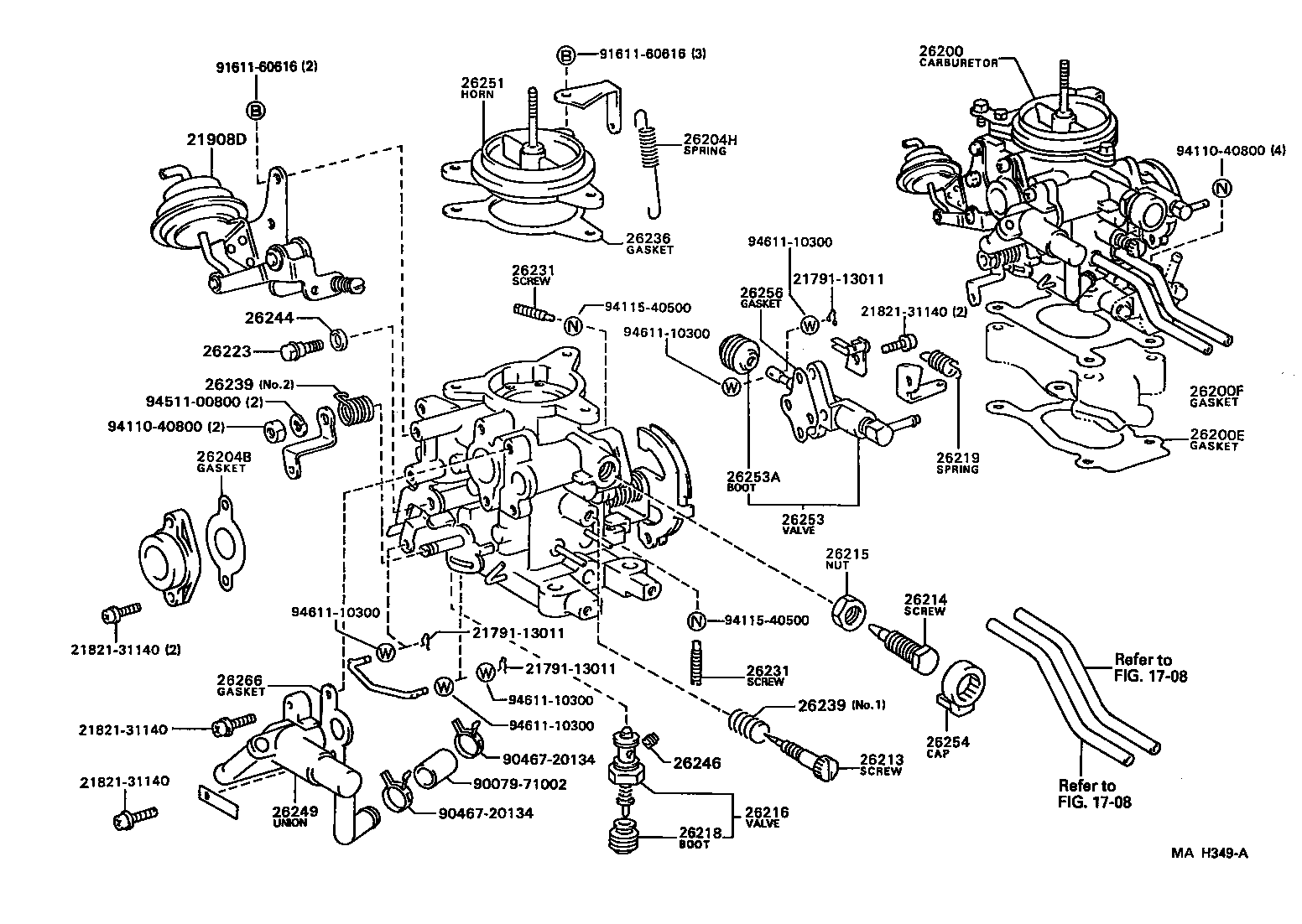

LPG CARBURETOR

(9406- )3YP

TOYOACE DYNA | LPG CARBURETOR ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 21908D - ACTUATOR SUB-ASSY, IDLE-UP 26200 - CARBURETOR ASSY, LPG 26200E - GASKET, CARBURETOR, NO.1 26200F - GASKET, CARBURETOR, NO.2 26204B - GASKET, SOLENOID VALVE(FOR LPG) 26204H - SPRING, THROTTLE RETURN(FOR LPG) 26213 - SCREW, ADJUST 26214 - SCREW, POWER ADJUST 26215 - NUT, POWER ADJUST 26216 - VALVE, POWER 26218 - BOOT(FOR POWER VALVE) 26219 - SPRING, POWER VALVE 26223 - SCREW, SET(FOR POWER VALVE CAM) 26231 - SCREW(FOR LPG CARBURETOR) 26231 - SCREW(FOR LPG CARBURETOR) 26236 - GASKET, AIR HORN 26239 - SPRING 26239 - SPRING 26244 - COLLAR(FOR LPG CARBURETOR) 26246 - JET 26249 - UNION, FUEL HOSE(FOR LPG) 26251 - HORN, AIR 26253 - VALVE, CHANGE(FOR SLOW) 26253A - BOOT(FOR CHANGE VALVE) 26254 - CAP, POWER SCREW LIMIT 26256 - GASKET, CHANGE VALVE 26266 - GASKET, FUEL INLET UNION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
