TOYOTA COASTER BB55-ZRPNU / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRAME

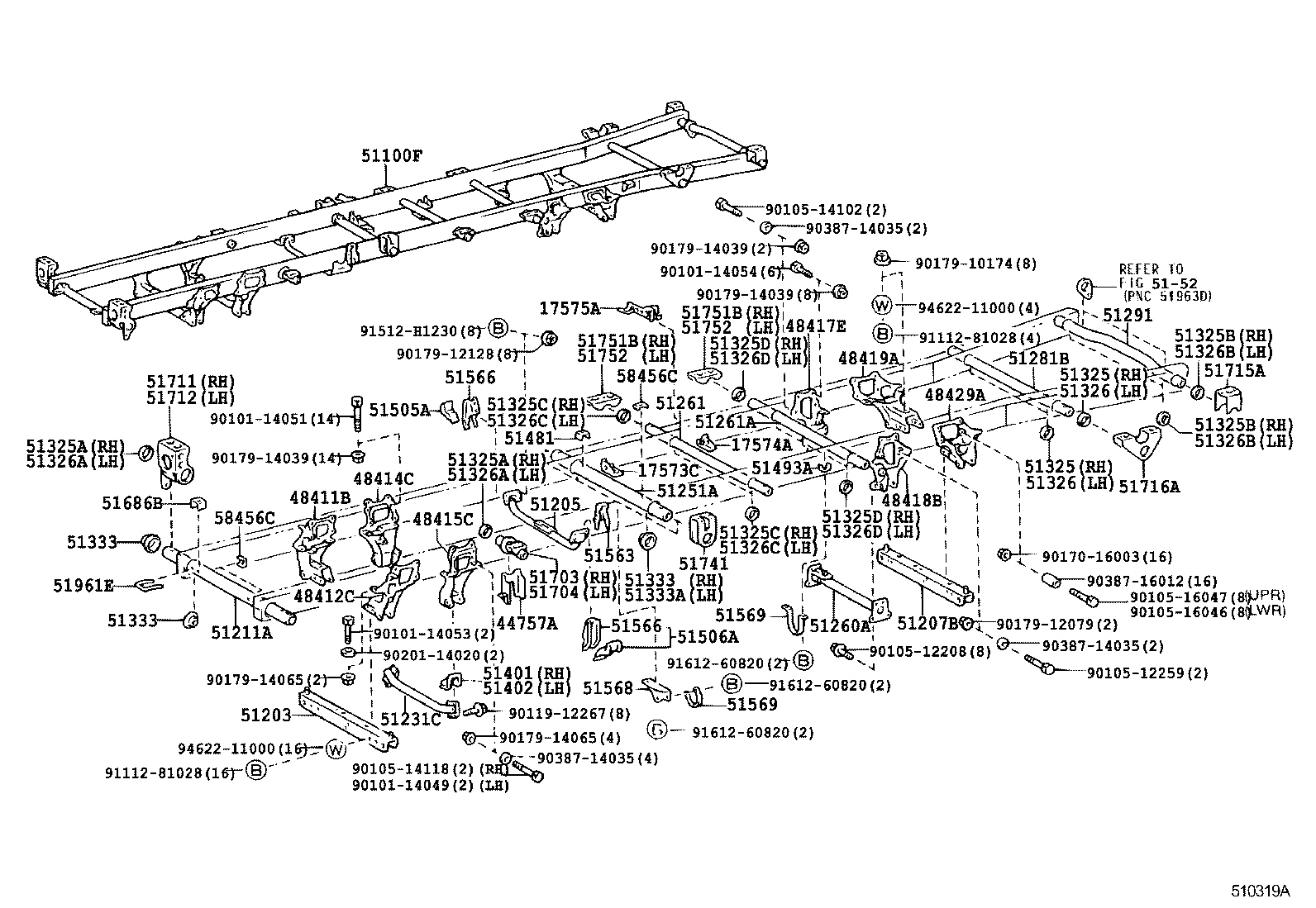

ILLUST NO. 1 OF 2(9512-9705)ST

COASTER | FRAME 17573C - BRACKET, EXHAUST PIPE SUPPORT, NO.3 17574A - BRACKET, EXHAUST PIPE SUPPORT, NO.4 17575A - BRACKET, EXHAUST PIPE SUPPORT, NO.5 44757A - BRACKET, VACUUM TANK CLAMP, NO.2 48411B - BRACKET, SPRING, NO.1 RH 48412C - BRACKET, SPRING, NO.1 LH 48414C - BRACKET, SPRING, NO.3 RH 48415C - BRACKET, SPRING, NO.3 LH 48417E - BRACKET, SPRING, NO.5 48418B - BRACKET, SPRING, NO.6 48419A - BRACKET, SPRING, NO.7 48429A - BRACKET, SPRING, NO.8 51100F - FRAME SUB-ASSY 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 51211A - CROSSMEMBER, FRAME, FRONT 51231C - CROSSMEMBER, FRAME, NO.3 51251A - CROSSMEMBER, FRAME, NO.5 51260A - CROSSMEMBER ASSY, FRAME, NO.6 51261 - CROSSMEMBER, FRAME, NO.6 51261A - CROSSMEMBER, FRAME, NO.6 51281B - CROSSMEMBER, FRAME, NO.8 51291 - CROSSMEMBER, FRAME, REAR 51325 - RETAINER, FRAME NO.2 CROSSMEMBER 51325 - RETAINER, FRAME NO.2 CROSSMEMBER 51325A - RETAINER, FRAME NO.2 CROSSMEMBER 51325A - RETAINER, FRAME NO.2 CROSSMEMBER 51325B - RETAINER, FRAME NO.2 CROSSMEMBER, RH 51325B - RETAINER, FRAME NO.2 CROSSMEMBER, RH 51325C - RETAINER, FRAME NO.2 CROSSMEMBER, RH 51325C - RETAINER, FRAME NO.2 CROSSMEMBER, RH 51325D - RETAINER, FRAME NO.2 CROSSMEMBER, RH 51325D - RETAINER, FRAME NO.2 CROSSMEMBER, RH 51326 - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51326 - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51326A - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51326A - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51326B - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51326B - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51326C - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51326C - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51326D - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51326D - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51333 - RETAINER, FRAME NO.3 CROSSMEMBER, RH 51333 - RETAINER, FRAME NO.3 CROSSMEMBER, RH 51333 - RETAINER, FRAME NO.3 CROSSMEMBER, RH 51333A - RETAINER, FRAME NO.3 CROSSMEMBER, RH 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51481 - BRACKET, POWER STEERING TUBE CLAMP 51493A - BRACKET, UNDER GUARD, FRONT NO.1 51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM 51506A - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH ** Refer Fig 51563 - BRACKET, ANCHOR ARM SUPPORT 51566 - SUPPORT, ANCHOR ARM 51566 - SUPPORT, ANCHOR ARM 51568 - BRACKET, PROPELLER SHAFT GUARD 51569 - GUARD, PROPELLER SHAFT 51569 - GUARD, PROPELLER SHAFT 51686B - BRACKET, CABLE CLAMP SIDE RAIL 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51711 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH 51712 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, LH 51715A - BRACKET, BODY SUPPORT, REAR RH 51716A - BRACKET, BODY SUPPORT, REAR LH 51741 - BRACKET, REAR BODY MOUNTING, NO.1 51751B - BRACKET, BODY SUPPORT, NO.1 RH 51751B - BRACKET, BODY SUPPORT, NO.1 RH 51752 - BRACKET, BODY SUPPORT, NO.1 LH 51752 - BRACKET, BODY SUPPORT, NO.1 LH 51961E - HOOK, FRONT 58456C - BRACKET, BRAKE TUBE CLAMP 58456C - BRACKET, BRAKE TUBE CLAMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
