TOYOTA COASTER BB55-ZRPNU / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

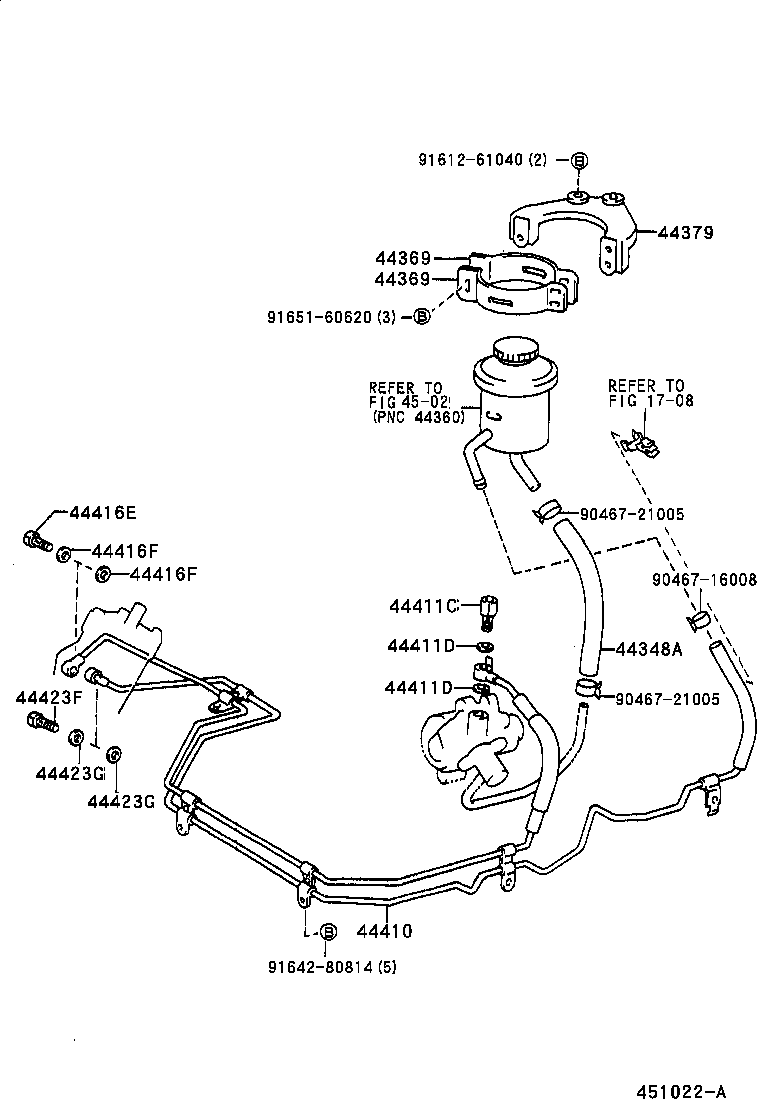

POWER STEERING TUBE

(9512-9907)BB5#

COASTER | POWER STEERING TUBE ** Refer Fig 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44369 - BRACKET, OIL RESERVOIR, NO.1 44369 - BRACKET, OIL RESERVOIR, NO.1 44379 - BRACKET, OIL RESERVOIR, NO.2 44410 - TUBE ASSY, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44416E - BOLT, UNION(FOR RETURN TUBE) 44416F - GASKET(FOR RETURN TUBE) 44416F - GASKET(FOR RETURN TUBE) 44423F - BOLT, UNION 44423G - GASKET, UNION BOLT 44423G - GASKET, UNION BOLT ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
