TOYOTA ESTIMA EMINA LUCIDA TCR11G-RFSZK / TOOL-ENGINE-FUEL / VENTILATION HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VENTILATION HOSE

(9312- )2TZFE

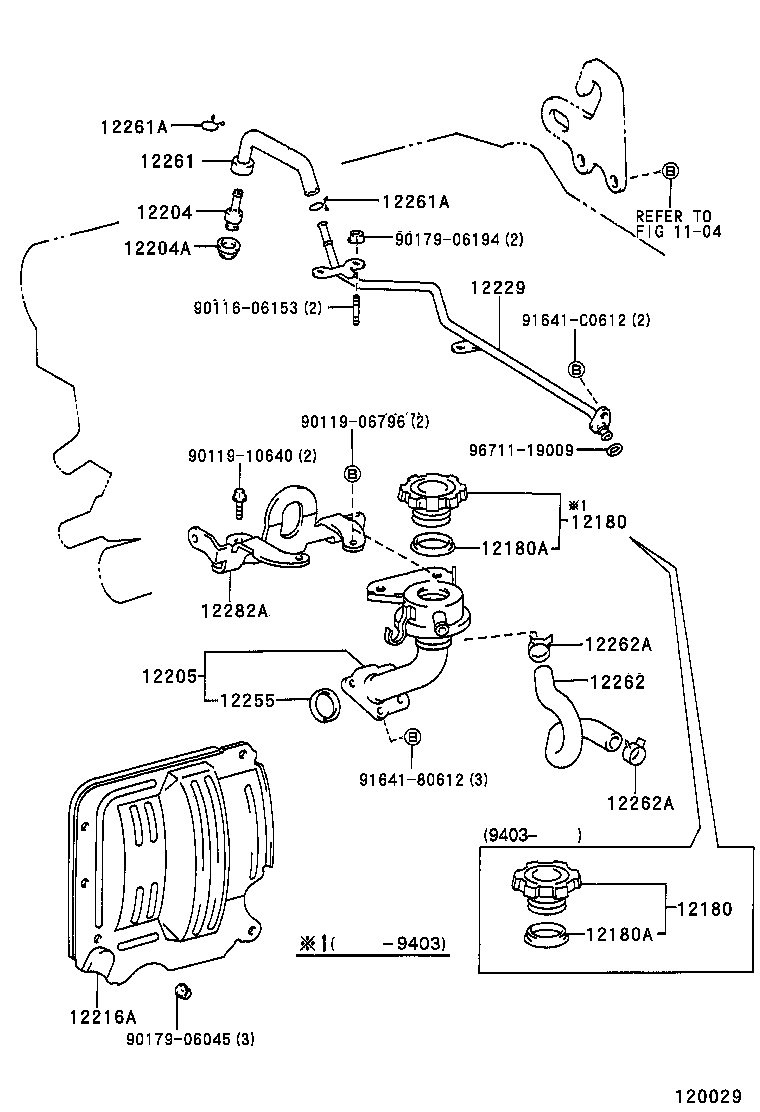

 ESTIMA EMINA LUCIDA |  VENTILATION HOSE ** Refer Fig 12180 - CAP ASSY, OIL FILLER 12180 - CAP ASSY, OIL FILLER 12180A - GASKET, OIL FILLER CAP 12180A - GASKET, OIL FILLER CAP 12204 - VALVE SUB-ASSY, VENTILATION 12204A - GROMMET(FOR VENTILATION SYSTEM) 12205 - CASE SUB-ASSY, VENTILATION 12216A - PLATE, OIL BAFFLE 12229 - PIPE, VENTILATION 12255 - GASKET, VENTILATION 12261 - HOSE, VENTILATION 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12262 - HOSE, VENTILATION, NO.2 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12282A - HANGER, ENGINE, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
