TOYOTA SUPRA JZA80-ALFVZ / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

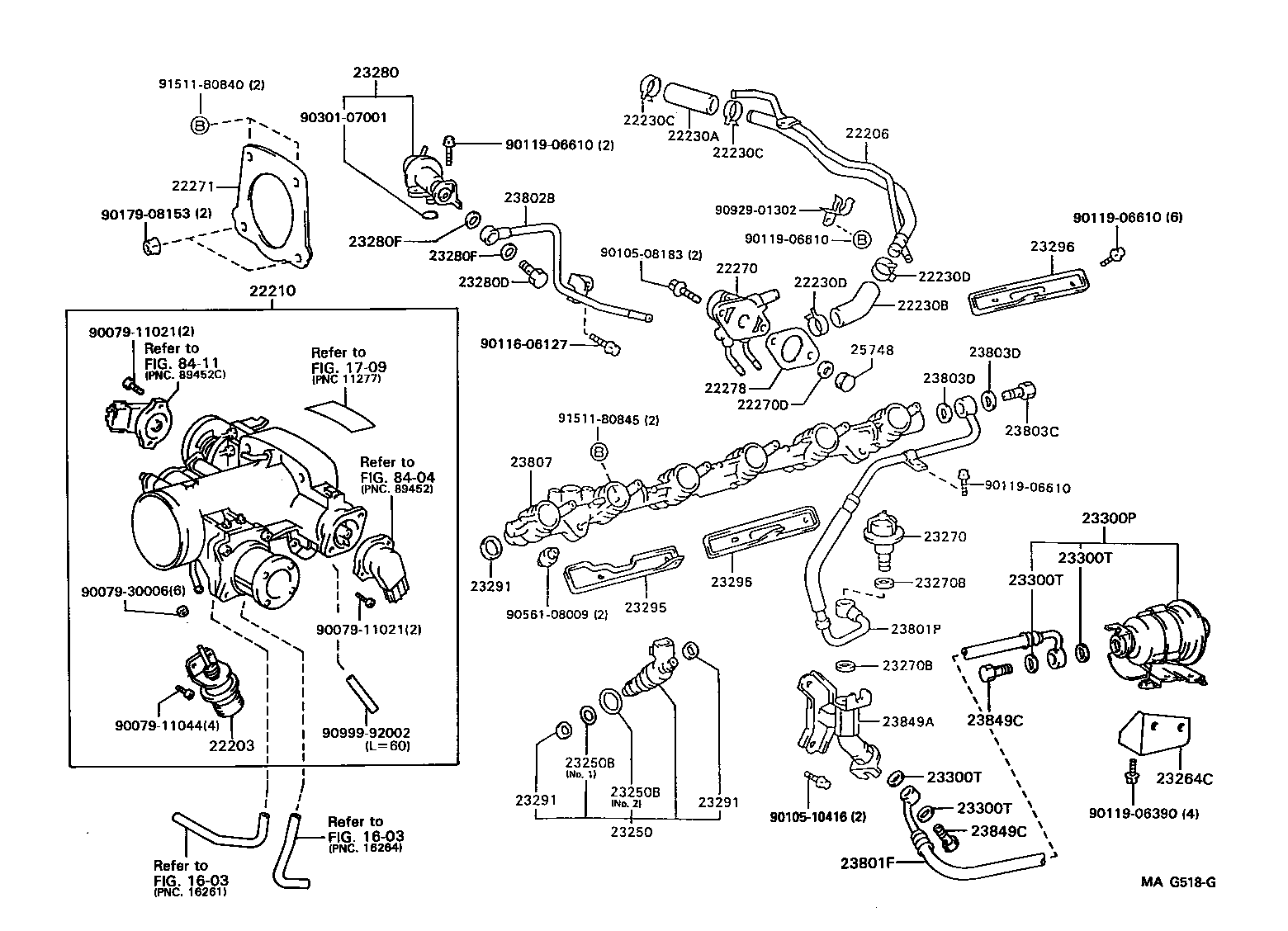

ILLUST NO. 1 OF 2(9305-9709)2JZGTE

SUPRA | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) 22206 - PIPE SUB-ASSY, IDLE SPEED CONTROL 22210 - BODY ASSY, THROTTLE 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22270D - WASHER, SEAL(FOR IDLE SPEED CONTROL VALVE) 22271 - GASKET, THROTTLE BODY 22278 - GASKET, IDLE SPEED CONTROL VALVE 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250B - RING, O(FOR FUEL INJECTOR) 23264C - BRACKET, FUEL FILTER 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23291 - INSULATOR, INJECTOR VIBRATION 23291 - INSULATOR, INJECTOR VIBRATION 23295 - HOLDER, INJECTOR, NO.1 23296 - HOLDER, INJECTOR, NO.2 23296 - HOLDER, INJECTOR, NO.2 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802B - PIPE SUB-ASSY, FUEL, NO.2 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23849A - SUPPORT, FUEL PIPE 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) 25748 - VALVE, CHECK(FOR IDLE SPEED CONTROL) ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
