TOYOTA DYNA 200 TOYOACE G25 BU102D-TUMMS / POWERTRAIN-CHASSIS / HOIST CYLINDER TRUNNION LIFT ARM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

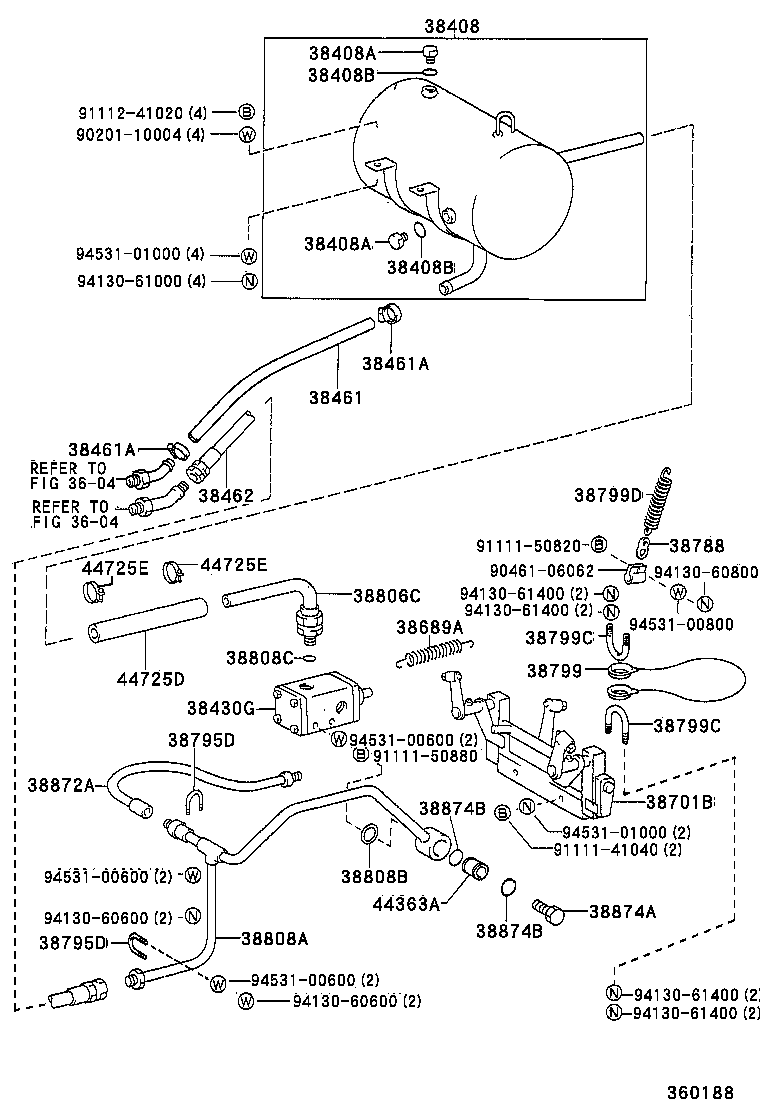

HOIST CYLINDER TRUNNION LIFT ARM

(9505-9807)DM3

 DYNA 200 TOYOACE G25 |  HOIST CYLINDER TRUNNION LIFT ARM ** Refer Fig ** Refer Fig 38408 - TANK SUB-ASSY, POWER 38408A - PLUG (FOR POWER TANK) 38408A - PLUG (FOR POWER TANK) 38408B - RING, O (FOR POWER TANK PLUG) 38408B - RING, O (FOR POWER TANK PLUG) 38430G - VALVE ASSY, POWER 38461 - HOSE, POWER OIL PUMP SUCTION 38461A - CLAMP (FOR POWER OIL PUMP SUCTION) 38461A - CLAMP (FOR POWER OIL PUMP SUCTION) 38462 - HOSE, POWER OIL PUMP DELIVERY 38689A - SPRING, TENSION (FOR STOP LEVER RETURN) 38701B - ARM SUB-ASSY, LIFT 38788 - HOOK, WIRE JOINT 38795D - BOLT, U (FOR DELIVERY PIPE) 38795D - BOLT, U (FOR DELIVERY PIPE) 38799 - ROPE, WIRE 38799C - BOLT, U (FOR LIFT ARM) 38799C - BOLT, U (FOR LIFT ARM) 38799D - SPRING, TENSION (FOR LIFT ARM) 38806C - PIPE SUB-ASSY, HOIST CYLINDER SUCTION, NO.1 38808A - PIPE SUB-ASSY, HOIST CYLINDER DELIVERY 38808B - RING, 0 (FOR HOIST CYLINDER DELIVERY) 38808C - RING, O (FOR HOIST CYLINDER SUCTION) 38872A - PIPE, HOIST CYLINDER 38874A - NIPPLE, HOIST CYLINDER 38874B - RING O (FOR HOIST CYLINDER NIPPLE) 38874B - RING O (FOR HOIST CYLINDER NIPPLE) 44363A - STRAINER, OIL(FOR HOIST CYLINDER PIPE) 44725D - HOSE, SUCTION(FOR POWER OIL PUMP) 44725E - CLAMP(FOR POWER OIL PUMP SUCTION HOSE) 44725E - CLAMP(FOR POWER OIL PUMP SUCTION HOSE)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
