TOYOTA DYNA 200 TOYOACE G25 BU162A-TMMMS3 / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

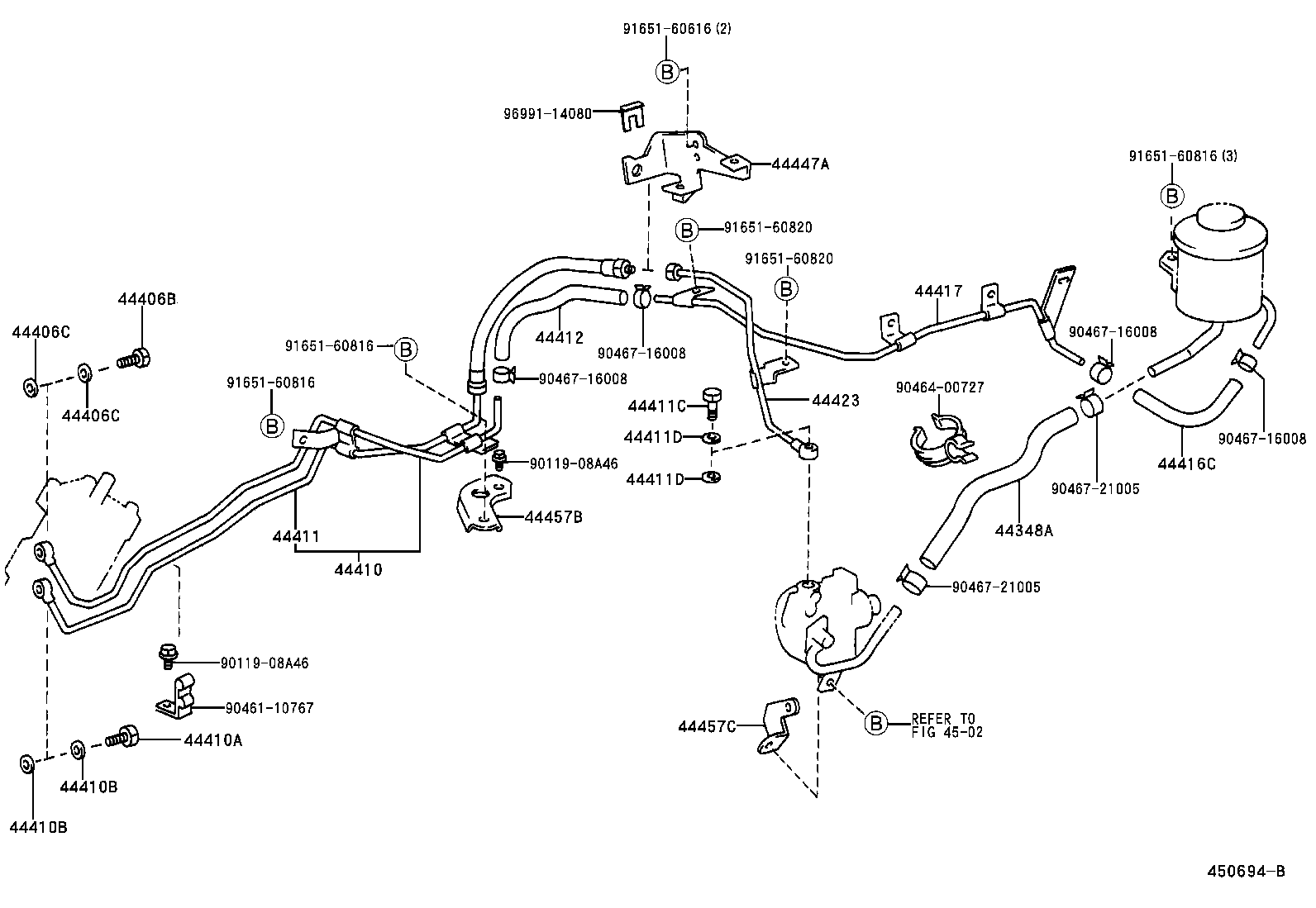

POWER STEERING TUBE

(9505- )BU162,172,182

DYNA 200 TOYOACE G25 | POWER STEERING TUBE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44406B - BOLT, UNION(FOR RETURN TUBE) 44406C - GASKET(FOR RETURN TUBE) 44406C - GASKET(FOR RETURN TUBE) 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44411 - HOSE, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44412 - HOSE, RETURN 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) 44417 - TUBE, RETURN, NO.2 44423 - TUBE, OIL PUMP TO GEAR BOX 44447A - BRACKET, HOSE SUPPORT, NO.1 44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
