TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

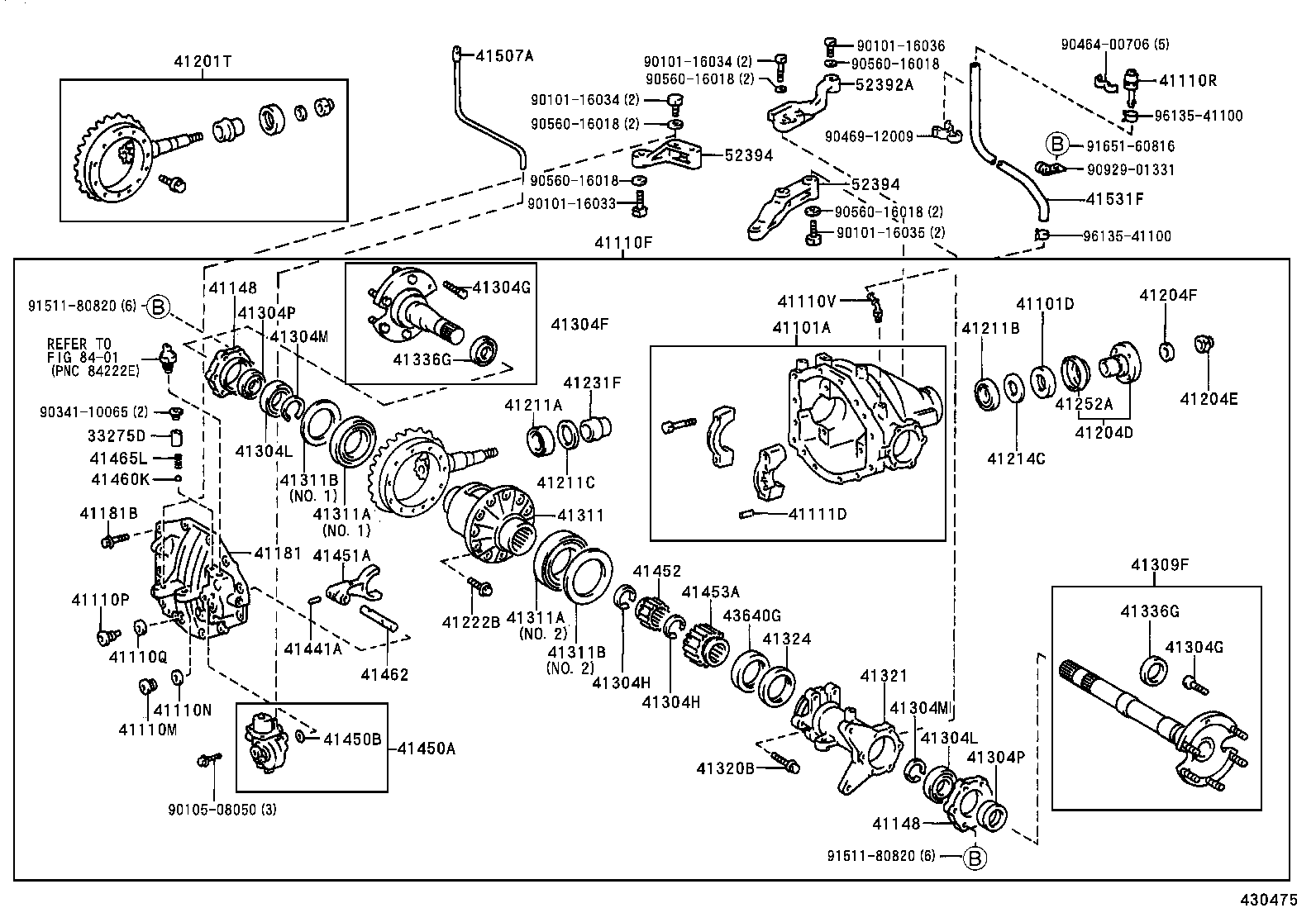

FRONT AXLE HOUSING DIFFERENTIAL

(9701- )BU297

DYNA 200 TOYOACE G25 | FRONT AXLE HOUSING DIFFERENTIAL 33275D - SEAT, SHIFT DETENT BALL SPRING 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT 41110M - PLUG, FRONT DIFFERENTIAL FILLER 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG 41110P - PLUG, FRONT DIFFERENTIAL DRAIN 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) 41110V - UNION (FOR FRONT DIFFERENTIAL) 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) 41148 - RETAINER, DIFFERENTIAL BEARING 41148 - RETAINER, DIFFERENTIAL BEARING 41181 - COVER, FRONT DIFFERENTIAL CARRIER 41181B - BOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) 41211C - GEAR, DIFFERENTIAL RING 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH 41304G - BOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT) 41304G - BOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT) 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) 41304L - BEARING (FOR FRONT DIFFERNTIAL SIDE GEAR SHAFT RH) 41304L - BEARING (FOR FRONT DIFFERNTIAL SIDE GEAR SHAFT RH) 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) 41309F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH 41311 - CASE, FRONT DIFFERENTIAL 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) 41320B - BOLT (FOR FRONT DIFFERENTIAL TUBE) 41321 - TUBE, DIFFERENTIAL EXTENSION FLANGE 41324 - GUIDE, FRONT DIFFERENTIAL OIL SEAL 41336G - COVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) 41336G - COVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) 41441A - PIN, SLOTTED SPRING (FOR DIFFERENTIAL SHIFT FORK) 41450A - ACTUATOR, DIFFERENTIAL LOCK SHIFT, NO.2 41450B - RING, O (FOR DIFFERENTIAL LOCK SHAFT RETAINER) 41451A - FORK, FRONT DIFFERENTIAL LOCK SHIFT 41452 - PIECE, DIFFERENTIAL LOCK SPLINE 41453A - SLEEVE, FRONT DIFFERENTIAL LOCK 41460K - BALL (FOR FRONT DIFFERENTIAL LOCK CYLINDER) 41462 - SHAFT, FRONT DIFFERENTIAL LOCK SHIFT FORK 41465L - SPRING, COMPRESSION(FOR FRONT DIFFERENTIAL LOCK RETAINER) 41507A - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER, NO.2 41531F - HOSE, FRONT DIFFERENTIAL VACUUM, NO.1 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) 52392A - SUPPORT, FRONT DIFFERENTIAL, NO.1 52394 - SUPPORT, FRONT DIFFERENTIAL, NO.3 52394 - SUPPORT, FRONT DIFFERENTIAL, NO.3 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
