TOYOTA IPSUM CXM10G-ARSDT / POWERTRAIN-CHASSIS / CONTROL SHAFT CROSSSHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CONTROL SHAFT CROSSSHAFT

(9709- )CXM10

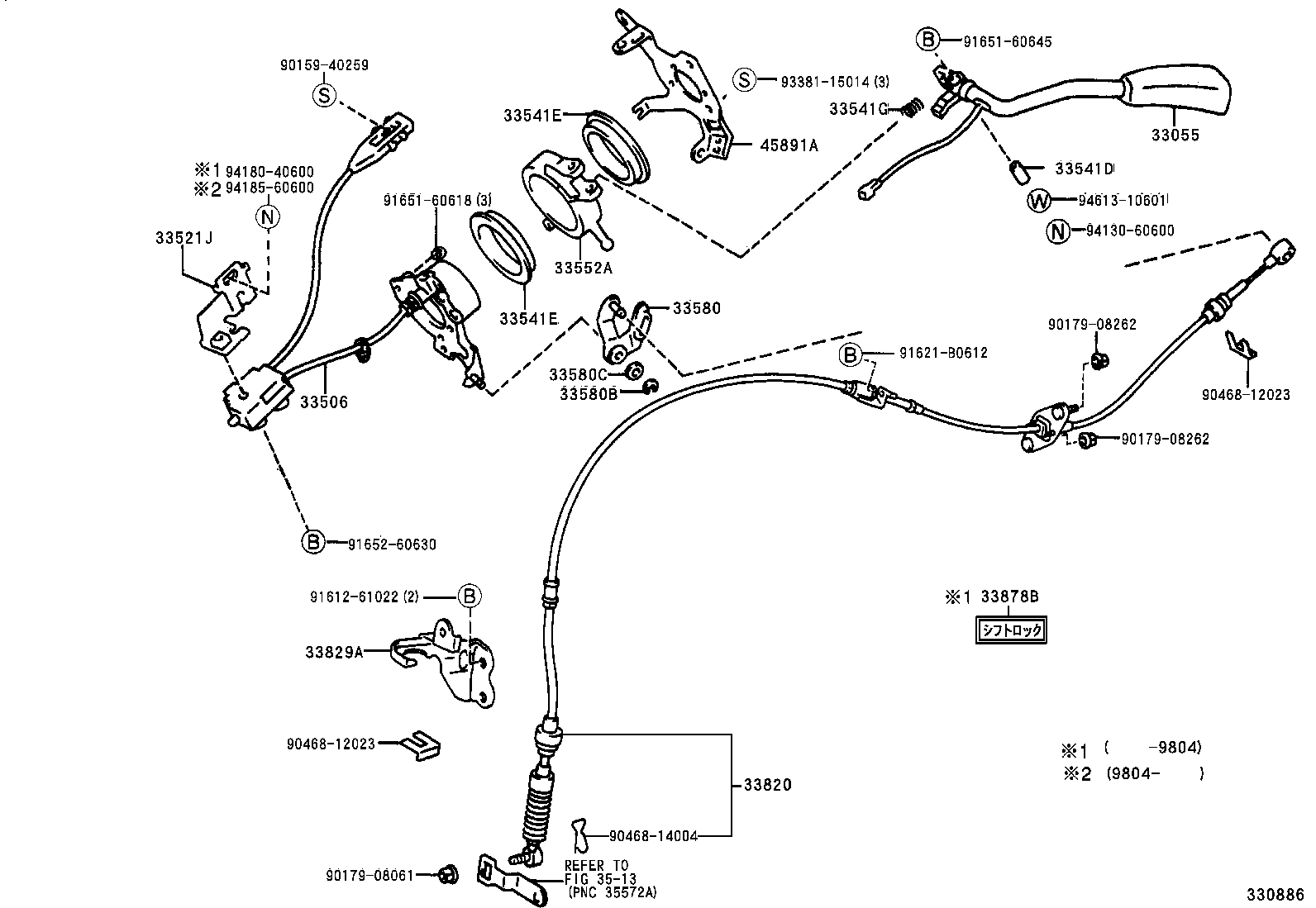

IPSUM | CONTROL SHAFT CROSSSHAFT 33055 - LEVER SUB-ASSY, COLUMN SHIFT 33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) 33521J - HOUSING, SHIFT LEVER (FOR COLUMN SHIFT) 33541D - COLLAR (FOR COLUMN SHIFT LEVER) 33541E - BUSH (FOR COLUMN SHIFT LEVER) 33541E - BUSH (FOR COLUMN SHIFT LEVER) 33541G - SPRING, COMPRESSION (FOR COLUMN SHIFT LEVER) 33552A - ARM, SHIFT LEVER 33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT) 33580B - RING, SHAFT SNAP (FOR SHIFTING BELLCRANK) 33580C - WASHER, PLATE (FOR SHIFTING BELL CRANK) 33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT) 33829A - SUPPORT, TRANSMISSION CONTROL CABLE 33878B - LABEL, SHIFT LOCK INFORMATION, NO.2(FOR COLUMN SHIFT) ** Refer Fig 45891A - BRACKET, TURN SIGNAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
