TOYOTA STARLET NP90-AHPDS / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

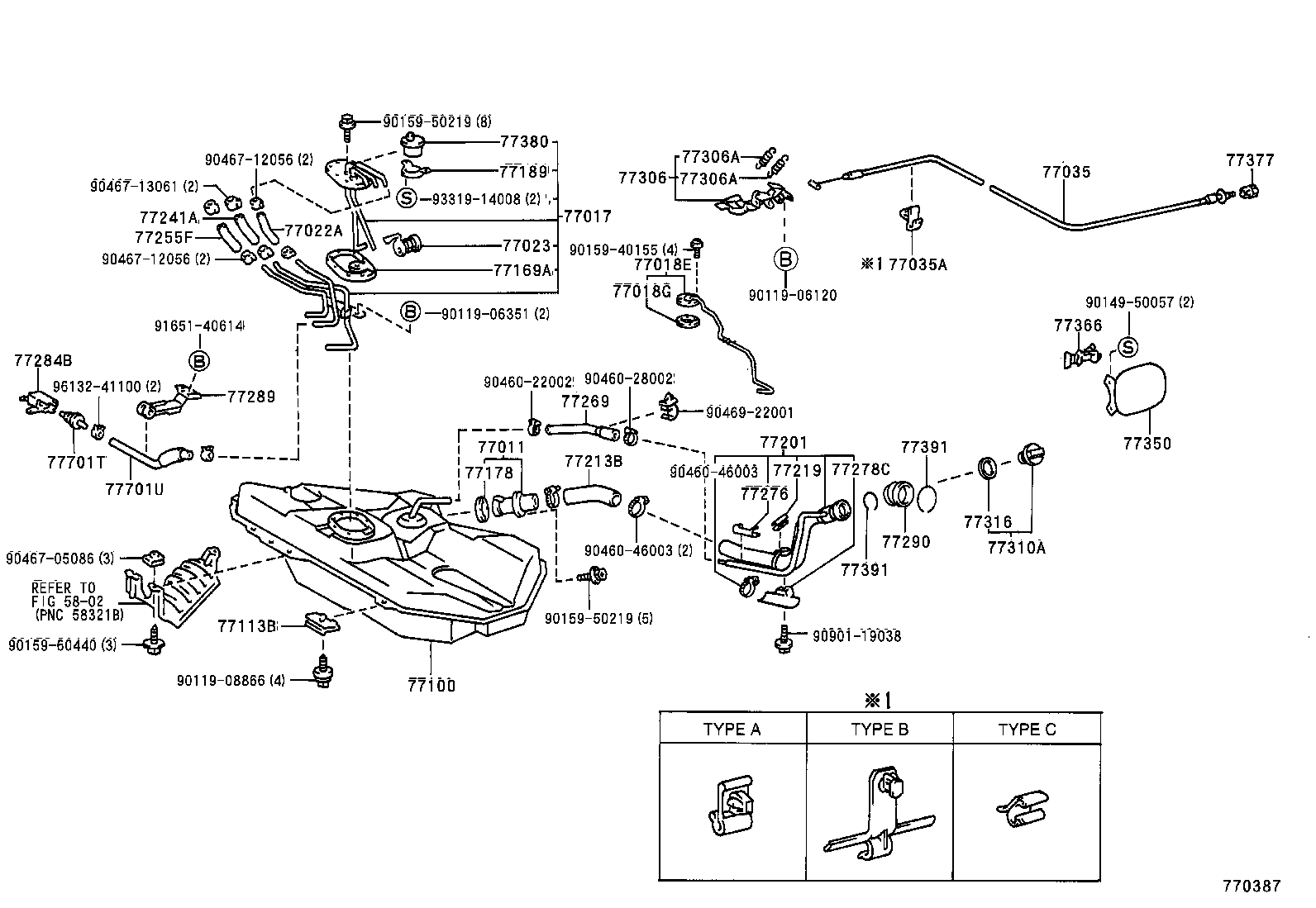

ILLUST NO. 1 OF 2(9601-9704)NP90

STARLET | FUEL TANK TUBE ** Refer Fig 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT 77018G - GASKET, FUEL TANK EVAP/VENT TUBE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77100 - TANK ASSY, FUEL 77113B - PLATE, FUEL TANK SIDE 77169A - GASKET, FUEL SUCTION TUBE SET 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77189 - RETAINER, FUEL CHECK VALVE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77213B - HOSE, FUEL TANK TO FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77269 - TUBE, FUEL CONNECTING 77276 - PROTECTOR, FUEL HOSE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77284B - PROTECTOR, FUEL TUBE, NO.3 77289 - HOLDER, FUEL TANK PIPE SETTING 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77306A - SPRING, FUEL LID OPEN LEVER 77306A - SPRING, FUEL LID OPEN LEVER 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77391 - RING, FUEL INLET BOX 77391 - RING, FUEL INLET BOX 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77701U - HOSE, FUEL (FOR CHECK VALVE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
