TOYOTA ARISTO JZS161-BEPVZ / BODY / PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT

(9708- )

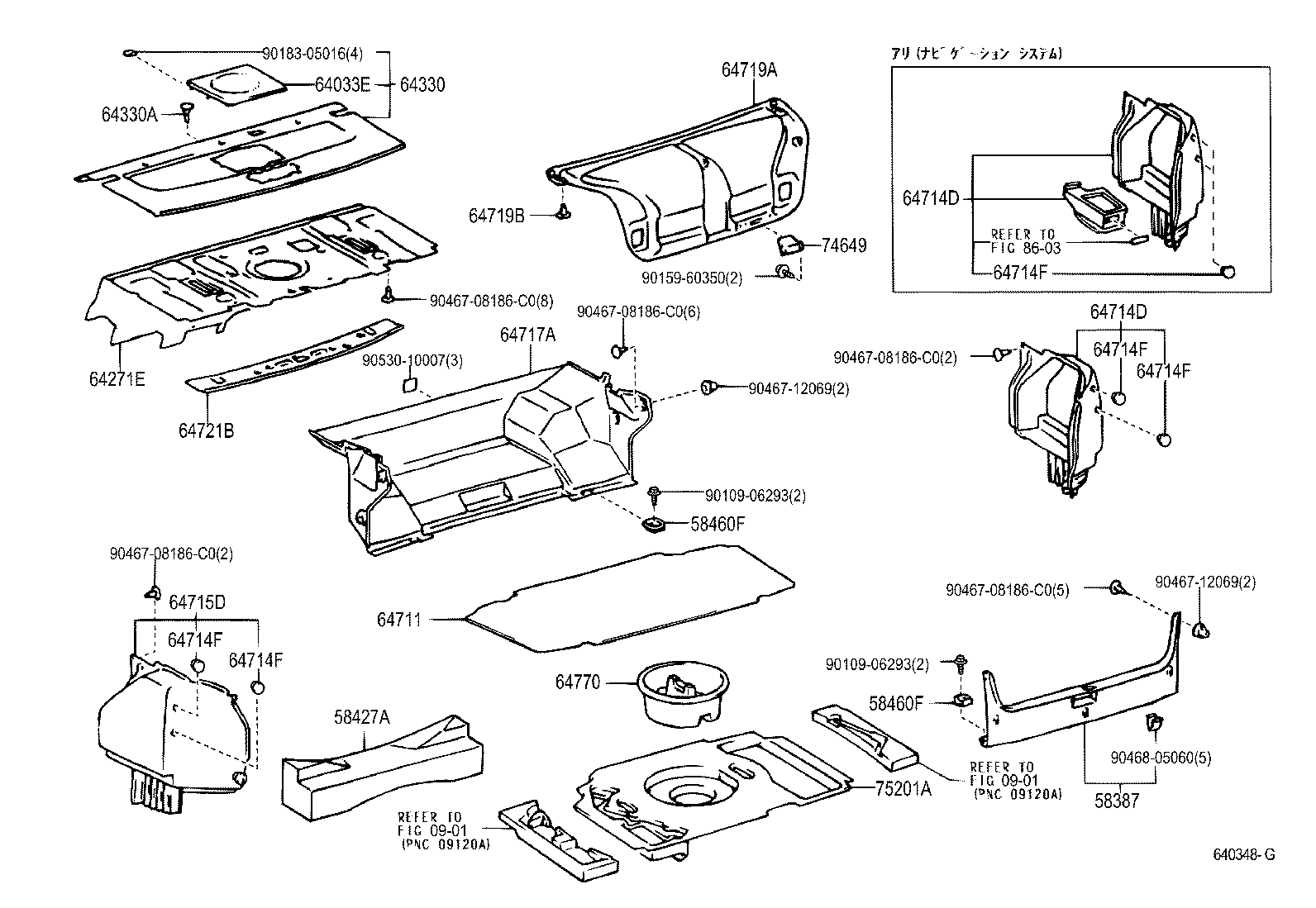

 ARISTO |  PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT ** Refer Fig ** Refer Fig 58387 - PLATE, REAR FLOOR FINISH 58427A - SPACER, REAR FLOOR BOARD 58460F - STRIKER ASSY, LUGGAGE HOLD BELT 58460F - STRIKER ASSY, LUGGAGE HOLD BELT 64033E - GRILLE SUB-ASSY, REAR SPEAKER 64271E - PANEL, ROOM PARTITION 64330 - PANEL ASSY, PACKAGE TRAY TRIM 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) 64711 - MAT, LUGGAGE COMPARTMENT FLOOR 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH 64714F - PLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER) 64714F - PLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER) 64714F - PLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER) 64714F - PLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER) 64714F - PLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER) 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT 64719A - COVER, LUGGAGE COMPARTMENT DOOR 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 64770 - COVER ASSY, SPARE WHEEL 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST 75201A - BOX, TOOL ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
