TOYOTA CROWN CROWN MAJESTA UZS155-CTPZK / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

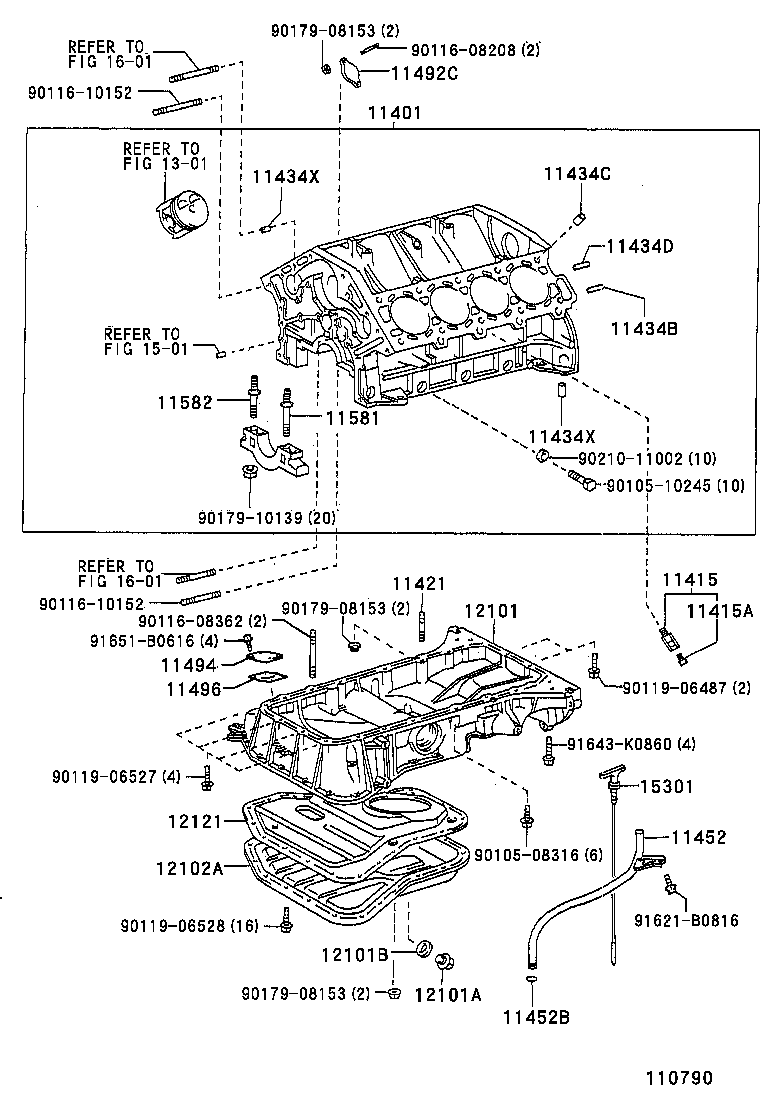

CYLINDER BLOCK

(9707- )1UZFE..UZS155

 CROWN CROWN MAJESTA |  CYLINDER BLOCK 11401 - BLOCK SUB-ASSY, CYLINDER 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11421 - BOLT, STUD(FOR OIL PAN) 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) 11434X - PIN, RING(FOR CHAIN CACE) 11434X - PIN, RING(FOR CHAIN CACE) 11452 - GUIDE, OIL LEVEL GAGE 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 11492C - PLATE, WATER SEAL 11494 - PLATE, OIL HOLE COVER 11496 - GASKET, OIL HOLE COVER PLATE 11581 - BOLT, CRANKSHAFT BEARING CAP, NO.1 11582 - BOLT, CRANKSHAFT BEARING CAP, NO.2 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12102A - PAN SUB-ASSY, OIL, NO.2 12121 - PLATE, OIL PAN BAFFLE, NO.1 ** Refer Fig ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
