TOYOTA ESTIMA EMINA LUCIDA TCR11G-RFSZK / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

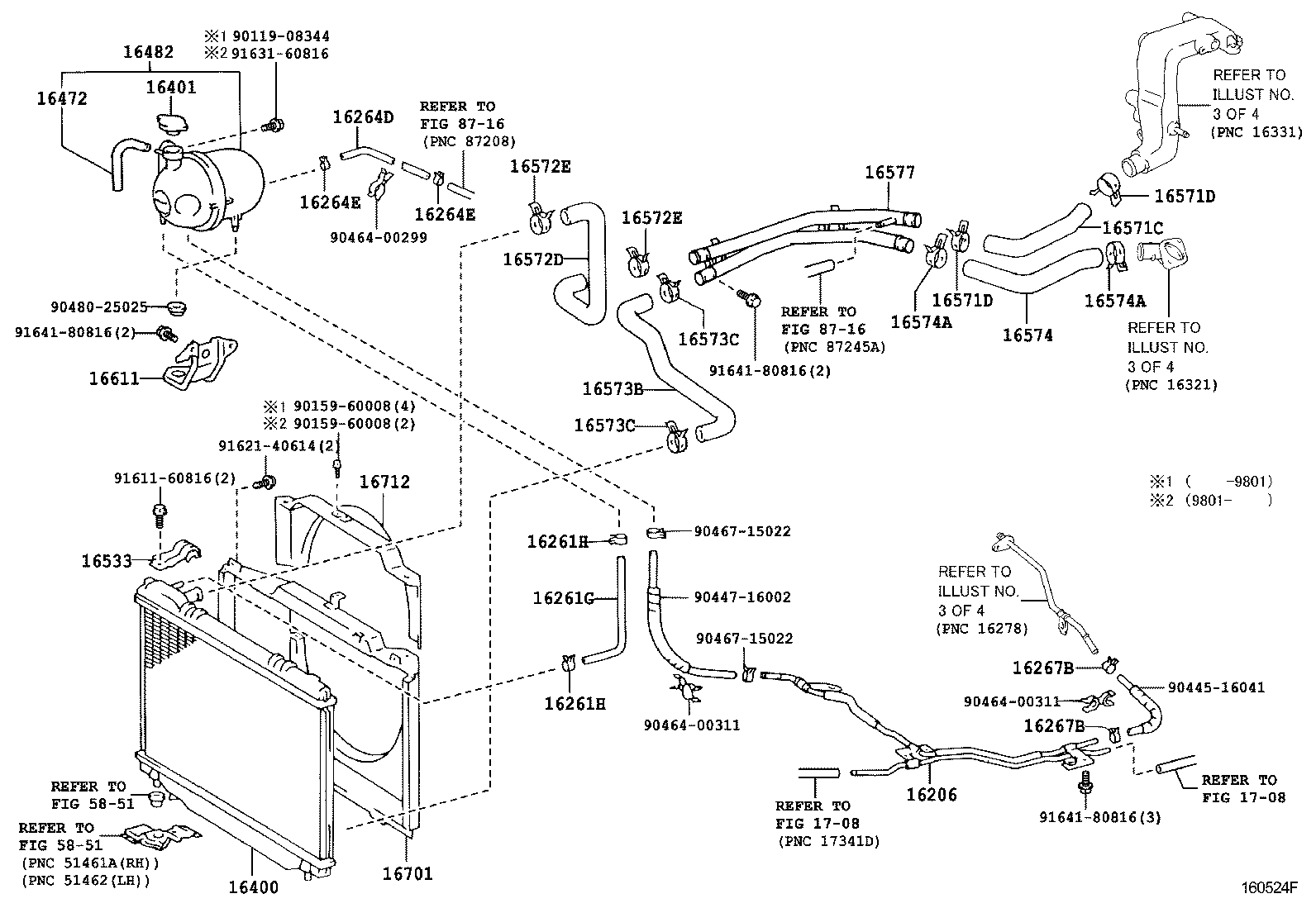

ILLUST NO. 1 OF 4(9707- )2TZFE

ESTIMA EMINA LUCIDA | RADIATOR WATER OUTLET 16206 - PIPE SUB-ASSY, WATER BY-PASS 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16264D - HOSE, WATER BY-PASS, NO.2 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16267B - CLIP(FOR WATER BY-PASS HOSE) 16267B - CLIP(FOR WATER BY-PASS HOSE) 16400 - RADIATOR ASSY 16401 - CAP SUB-ASSY, RADIATOR 16472 - HOSE, BREATHER 16482 - TANK SUB-ASSY, RADIATOR RESERVE 16533 - SUPPORT, RADIATOR, UPPER 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16574 - HOSE, RADIATOR, NO.4 16574A - CLIP, RADIATOR HOSE, NO.4 16574A - CLIP, RADIATOR HOSE, NO.4 16577 - PIPE, RADIATOR, NO.7 16611 - BRACKET, RADIATOR RESERVE TANK 16701 - SHROUD SUB-ASSY, FAN 16712 - SHROUD, FAN, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
