TOYOTA MR2 SW20-ACMZZ / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

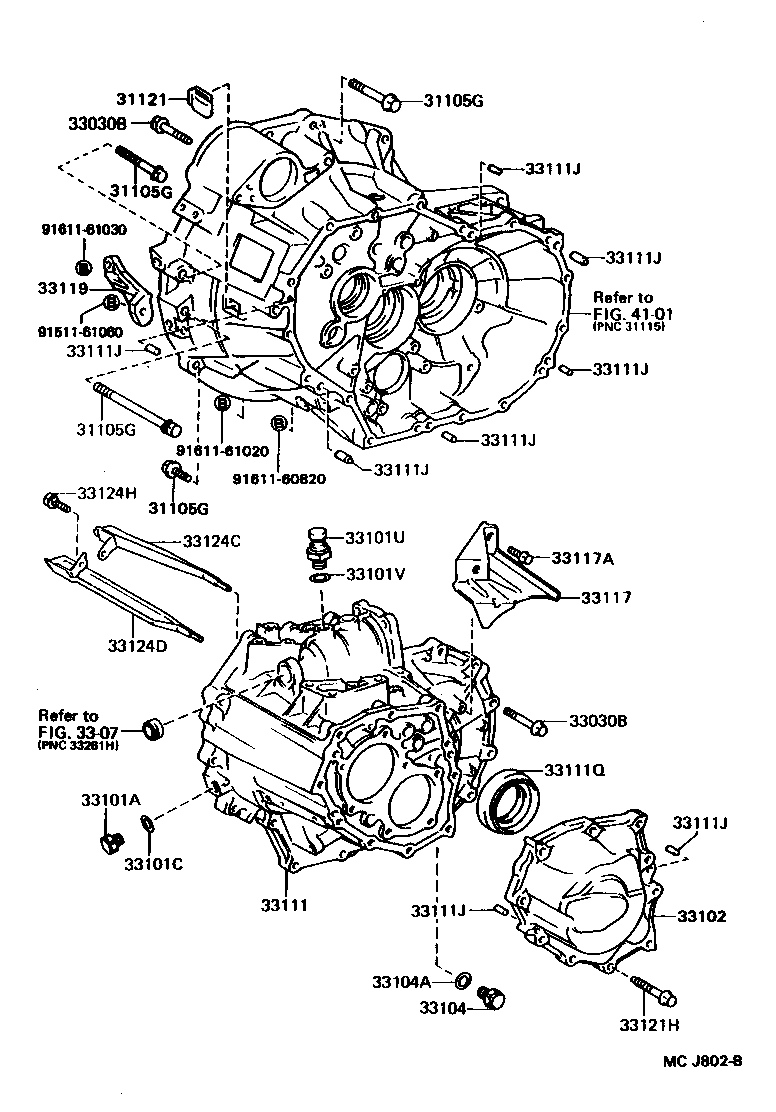

CLUTCH HOUSING TRANSMISSION CASE MTM

E153 (8912- )GT

MR2 | CLUTCH HOUSING TRANSMISSION CASE MTM 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 31121 - COVER, CLUTCH HOUSING, NO.1 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) ** Refer Fig 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE 33104 - PLUG SUB-ASSY, DRAIN(MTM) 33104A - GASKET, DRAIN PLUG(MTM) 33111 - CASE, MANUAL TRANSMISSION 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) 33117 - PROTECTOR, MANUAL TRANSMISSION CASE 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) 33119 - PLATE, STIFFENER, LH(MTM) 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) 33124C - PIPE, OIL RECEIVER, NO.1(MTM) 33124D - PIPE, OIL RECEIVER, NO.2(MTM) 33124H - BOLT(FOR OIL RECEIVER PIPE) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
