TOYOTA VISTA VISTA ARDEO ZZV50G-BWSMK / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

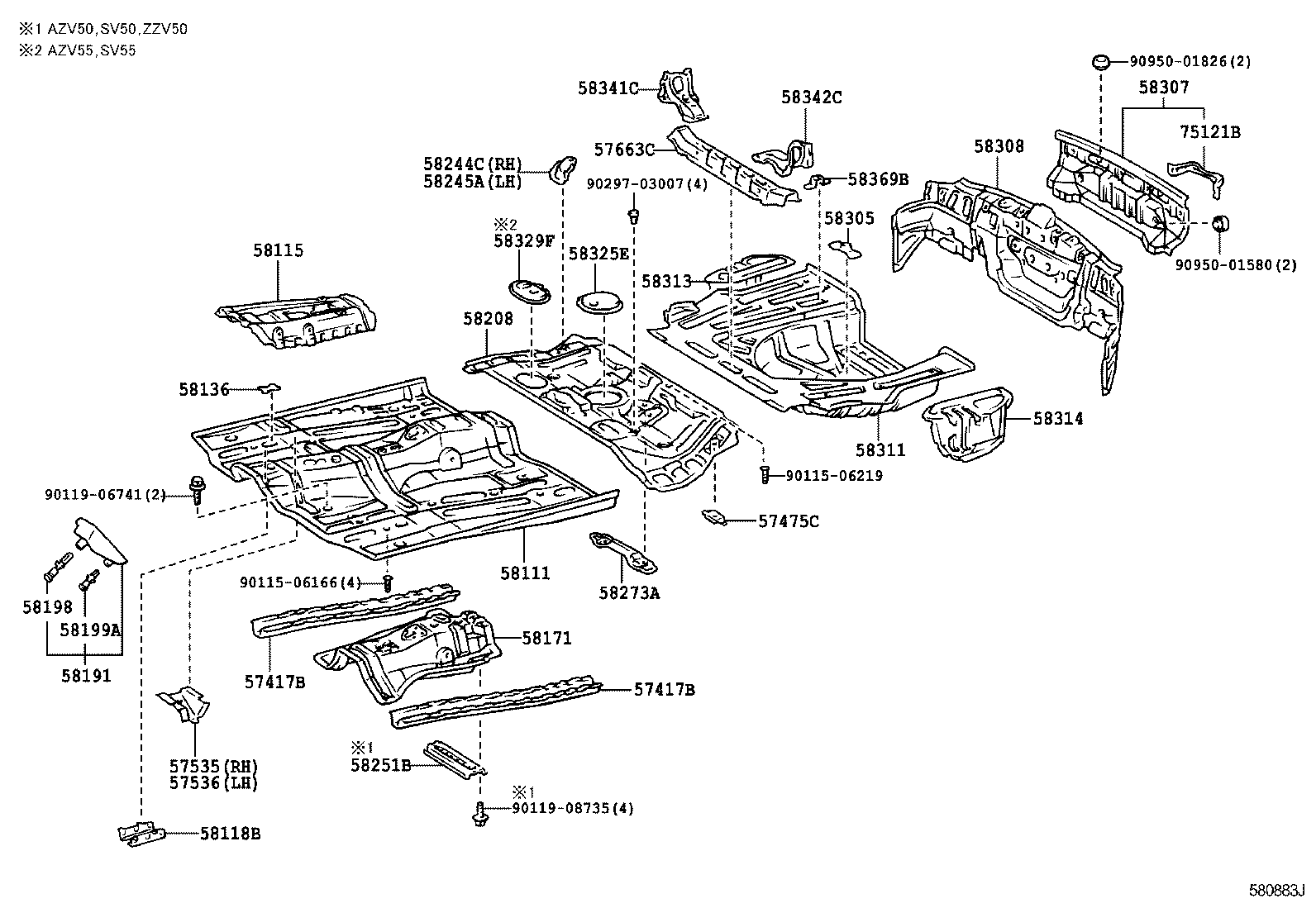

ILLUST NO. 1 OF 2(9806- )WG

 VISTA VISTA ARDEO |  FLOOR PAN LOWER BACK PANEL 57417B - REINFORCEMENT, FRONT FLOOR UNDER 57417B - REINFORCEMENT, FRONT FLOOR UNDER 57475C - PLATE, FRONT FLOOR CROSSMEMBER 57535 - BRACE, FRONT FLOOR, RH 57536 - BRACE, FRONT FLOOR, LH 57663C - MEMBER, REAR FLOOR CROSS, CENTER 58111 - PAN, FRONT FLOOR 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT 58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2 58136 - COVER, FRONT FLOOR HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58191 - FOOTREST, FRONT FLOOR 58198 - CLIP, FOOTREST 58199A - CLIP, FOOTREST, NO.2 58208 - PAN, CENTER FLOOR 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH 58245A - BRACKET, REAR SEAT HINGE, CENTER NO.1 58251B - BRACE, FLOOR PANEL, FRONT 58273A - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, RH 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH 58369B - BRACKET, FUEL TUBE, NO.3 75121B - BRACKET, REAR LICENSE PLATE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
