TOYOTA CROWN CROWN MAJESTA UZS157-CTAQK / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CONSOLE BOX BRACKET

(9707- )A,C,E,F

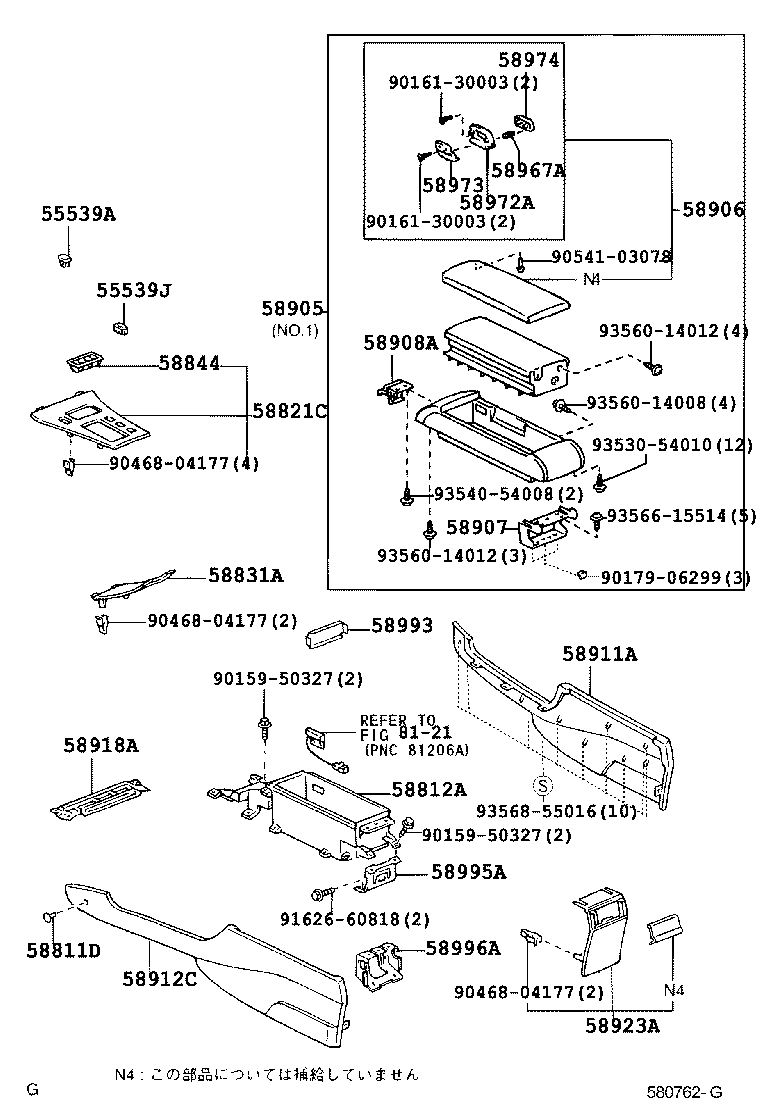

CROWN CROWN MAJESTA | CONSOLE BOX BRACKET 55539A - COVER, SPARE SWITCH HOLE 55539J - COVER, SPARE SWITCH HOLE 58811D - CLIP(FOR CONSOLE BOX) 58812A - BOX, CONSOLE, LOWER 58821C - PANEL, CONSOLE, UPPER 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT 58844 - BEZEL, CONSOLE BOX 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58906 - DOOR SUB-ASSY, UPPER CONSOLE 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 58911A - PANEL, BOX SIDE, NO.1 58912C - PANEL, BOX SIDE, NO.2 58918A - BRACKET, BOX SUPPORT 58923A - PANEL, CONSOLE REAR END 58967A - SPRING, CONSOLE DOOR STOPPER 58972A - BASE, CONSOLE COMPARTMENT DOOR LOCK 58973 - PIN, CONSOLE COMPARTMENT DOOR LOCK 58974 - PLATE, CONSOLE COMPARTMENT DOOR LOCK 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
