TOYOTA DYNA 200 TOYOACE G25 BU102D-TUMMS / POWERTRAIN-CHASSIS / HOIST CYLINDER TRUNNION LIFT ARM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

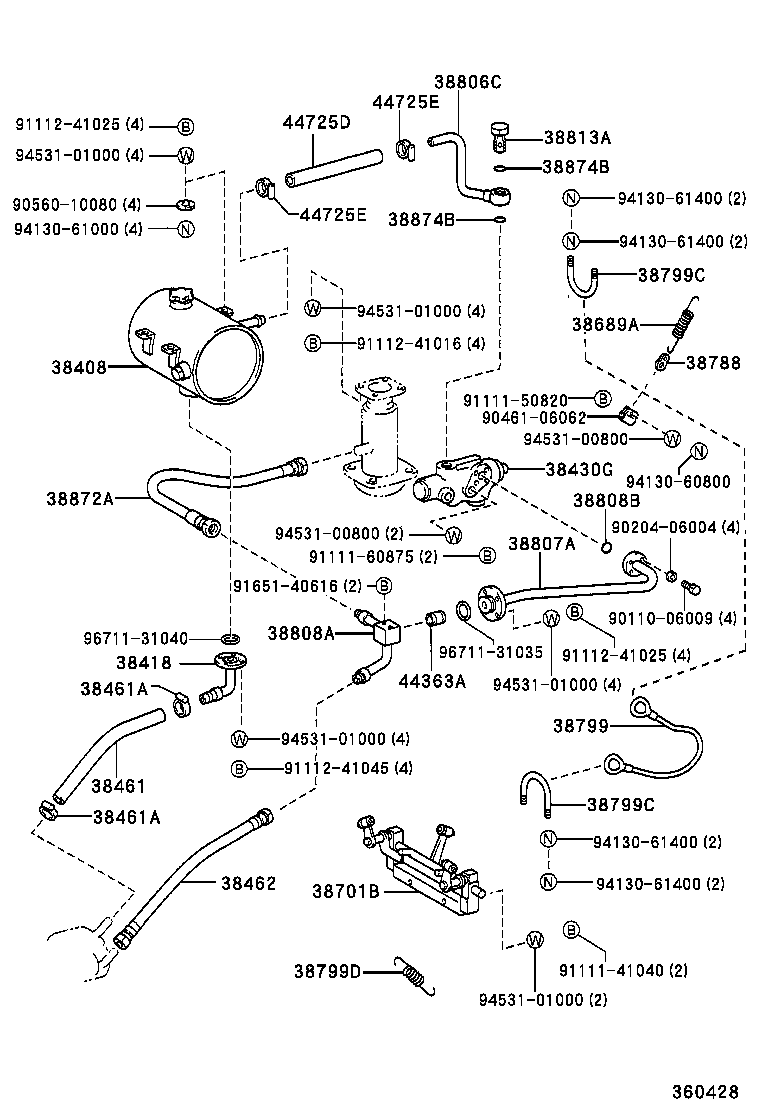

HOIST CYLINDER TRUNNION LIFT ARM

(9807- )DM3

DYNA 200 TOYOACE G25 | HOIST CYLINDER TRUNNION LIFT ARM 38408 - TANK SUB-ASSY, POWER 38418 - PIPE, OIL TANK OUTLET 38430G - VALVE ASSY, POWER 38461 - HOSE, POWER OIL PUMP SUCTION 38461A - CLAMP (FOR POWER OIL PUMP SUCTION) 38461A - CLAMP (FOR POWER OIL PUMP SUCTION) 38462 - HOSE, POWER OIL PUMP DELIVERY 38689A - SPRING, TENSION (FOR STOP LEVER RETURN) 38701B - ARM SUB-ASSY, LIFT 38788 - HOOK, WIRE JOINT 38799 - ROPE, WIRE 38799C - BOLT, U (FOR LIFT ARM) 38799C - BOLT, U (FOR LIFT ARM) 38799D - SPRING, TENSION (FOR LIFT ARM) 38806C - PIPE SUB-ASSY, HOIST CYLINDER SUCTION, NO.1 38807A - PIPE SUB-ASSY, HOIST CYLINDER SUCTION, NO.2 38808A - PIPE SUB-ASSY, HOIST CYLINDER DELIVERY 38808B - RING, 0 (FOR HOIST CYLINDER DELIVERY) 38813A - FLANGE, HOIST CYLINDER BOTTOM 38872A - PIPE, HOIST CYLINDER 38874B - RING O (FOR HOIST CYLINDER NIPPLE) 38874B - RING O (FOR HOIST CYLINDER NIPPLE) 44363A - STRAINER, OIL(FOR HOIST CYLINDER PIPE) 44725D - HOSE, SUCTION(FOR POWER OIL PUMP) 44725E - CLAMP(FOR POWER OIL PUMP SUCTION HOSE) 44725E - CLAMP(FOR POWER OIL PUMP SUCTION HOSE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
