TOYOTA DYNA 200 TOYOACE G25 BU222-TKFMX / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

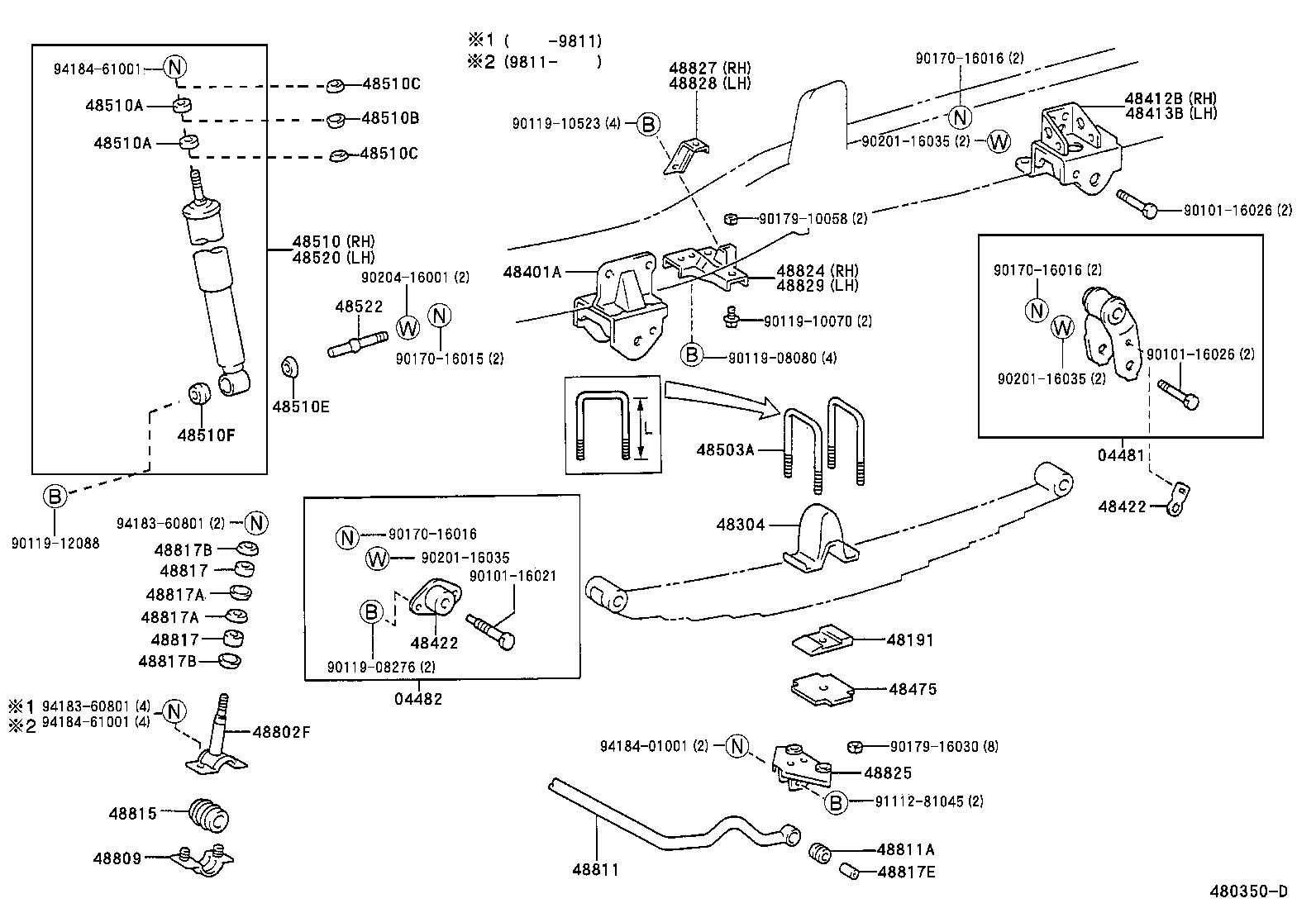

FRONT SPRING SHOCK ABSORBER

ILLUST NO. 1 OF 2(9505- )BU202,212,222

DYNA 200 TOYOACE G25 | FRONT SPRING SHOCK ABSORBER 04481 - SHACKLE KIT, FRONT SPRING 04482 - PIN KIT, FRONT SPRING 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 48401A - BRACKET SUB-ASSY, SPRING, NO.1 48412B - BRACKET, SPRING, NO.2 RH 48413B - BRACKET, SPRING, NO.2 LH 48422 - SUPPORT, FRONT SPRING PIN 48422 - SUPPORT, FRONT SPRING PIN 48475 - PLATE, DISTANCE(FOR FRONT) 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48510A - CUSHION, FRONT SHOCK ABSORBER 48510A - CUSHION, FRONT SHOCK ABSORBER 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 48510F - CUSHION, SHOCK ABSORBER 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT 48802F - LINK SUB-ASSY, FRONT STABILIZER 48809 - BRACKET SUB-ASSY, STABILIZER 48811 - BAR, STABILIZER, FRONT 48811A - BUSH(FOR FRONT STABILIZER BAR) 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48817 - CUSHION, FRONT STABILIZER 48817 - CUSHION, FRONT STABILIZER 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) 48817E - SPACER(FOR STABILIZER BAR) 48824 - BRACKET, STABILIZER, FRONT 48825 - BRACKET, STABILIZER, NO.2 48827 - BRACKET, FRONT STABILIZER, NO.2 RH 48828 - BRACKET, FRONT STABILIZER, NO.2 LH 48829 - BRACKET, STABILIZER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
