TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / POWERTRAIN-CHASSIS / AIR BRAKE SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

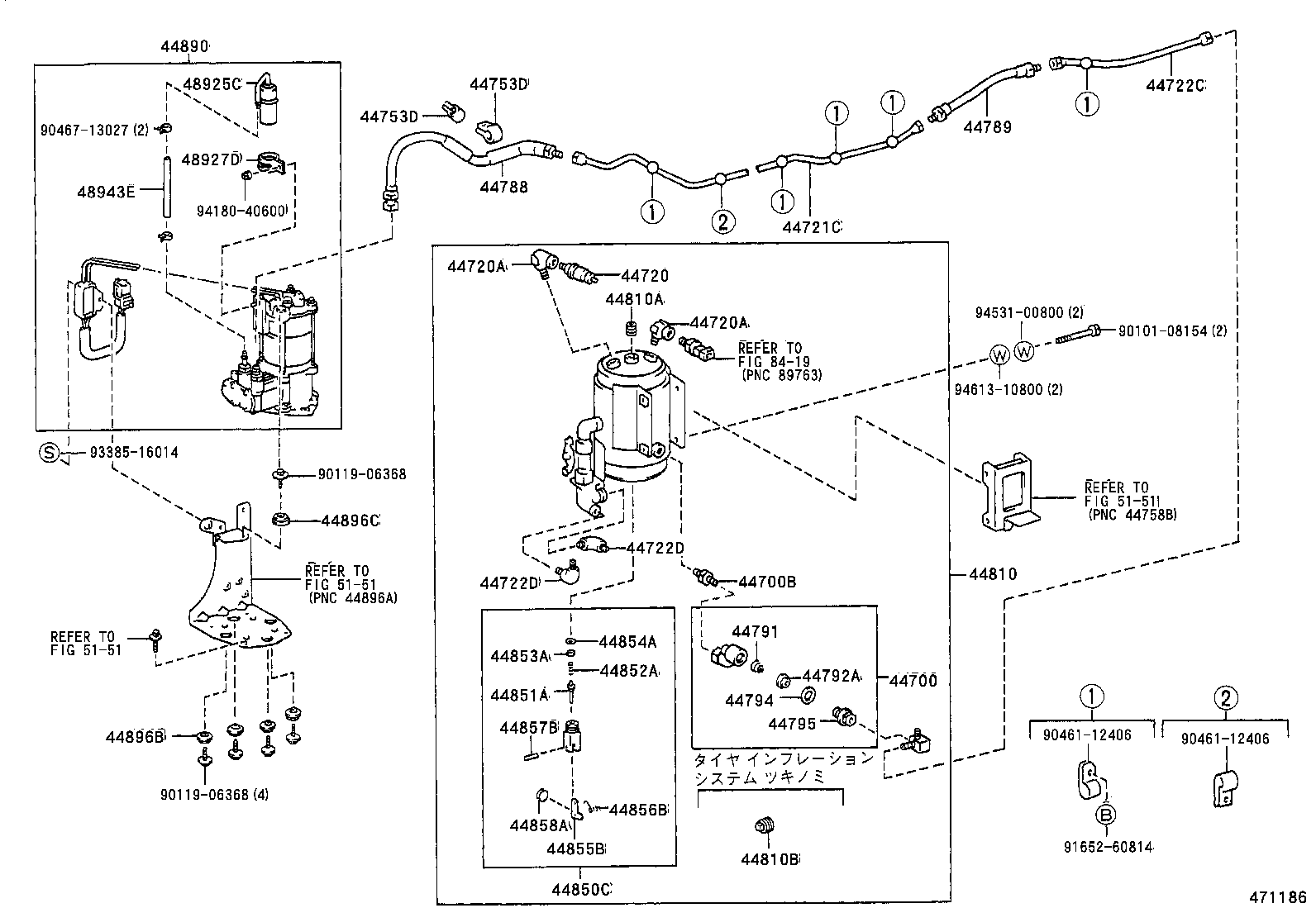

AIR BRAKE SYSTEM

(9701- )BU297

DYNA 200 TOYOACE G25 | AIR BRAKE SYSTEM 44700 - VALVE ASSY, AIR BRAKE CHECK 44700B - CONECTOR, STRAIGHT(FOR AIR BRAKE CHECK VALVE) 44720 - VALVE ASSY, AIR SAFETY 44720A - CONECTOR, ELBOW(FOR AIR SAFETY VALVE) 44720A - CONECTOR, ELBOW(FOR AIR SAFETY VALVE) 44721C - TUBE, AIR CONTROL, NO.1 44722C - TUBE, AIR CONTROL, NO.2 44722D - ELBOW(FOR AIR CONTROL TUBE) 44722D - ELBOW(FOR AIR CONTROL TUBE) 44753D - CLAMP, AIR TUBE 44753D - CLAMP, AIR TUBE 44788 - HOSE, AIR BRAKE, NO.1 44789 - HOSE, AIR BRAKE, NO.2 44791 - SPRING, AIR BRAKE CHECK VALVE 44792A - VALVE, AIR BRAKE CHECK 44794 - RING, AIR BRAKE CHECK VALVE 44795 - UNION, AIR BRAKE CHECK VALVE 44810 - RESERVOIR ASSY, AIR 44810A - PLUG NO.1(FOR AIR RESERVOIR) 44810B - PLUG NO.2(FOR AIR RESERVOIR) 44850C - COCK ASSY, DRAIN 44851A - VALVE, DRAIN COCK(FOR AIR RESERVOIR) 44852A - SPRING, DRAIN COCK(FOR AIR RESERVOIR) 44853A - WASHER, DRAIN COCK(FOR AIR RESERVOIR) 44854A - RING, DRAIN COCK(FOR AIR RESERVOIR) 44855B - LEVER, DRAIN COCK(FOR AIR RESERVOIR) 44856B - SPRING, DRAIN COCK LEVER(FOR AIR RESERVOIR) 44857B - PIN, DRAIN COCK LEVER(FOR AIR RESERVOIR) 44858A - RING, DRAIN COCK LEVER SET(FOR AIR RESERVOIR) 44890 - COMPRESSOR ASSY, AIR 44896B - BUSH, AIR BRAKE COMPRESSOR BRACKET, NO.1 44896C - BUSH, AIR BRAKE COMPRESSOR BRACKET, NO.2 48925C - FILTER, AIR BRAKE COMPRESSOR 48927D - BRACKET, AIR BRAKE COMPRESSOR FILTER 48943E - HOSE(FOR FILTER TO COMPRESSOR) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
