TOYOTA PRIUS NHW10-AEEEB / TOOL-ENGINE-FUEL / ENGINE OIL PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

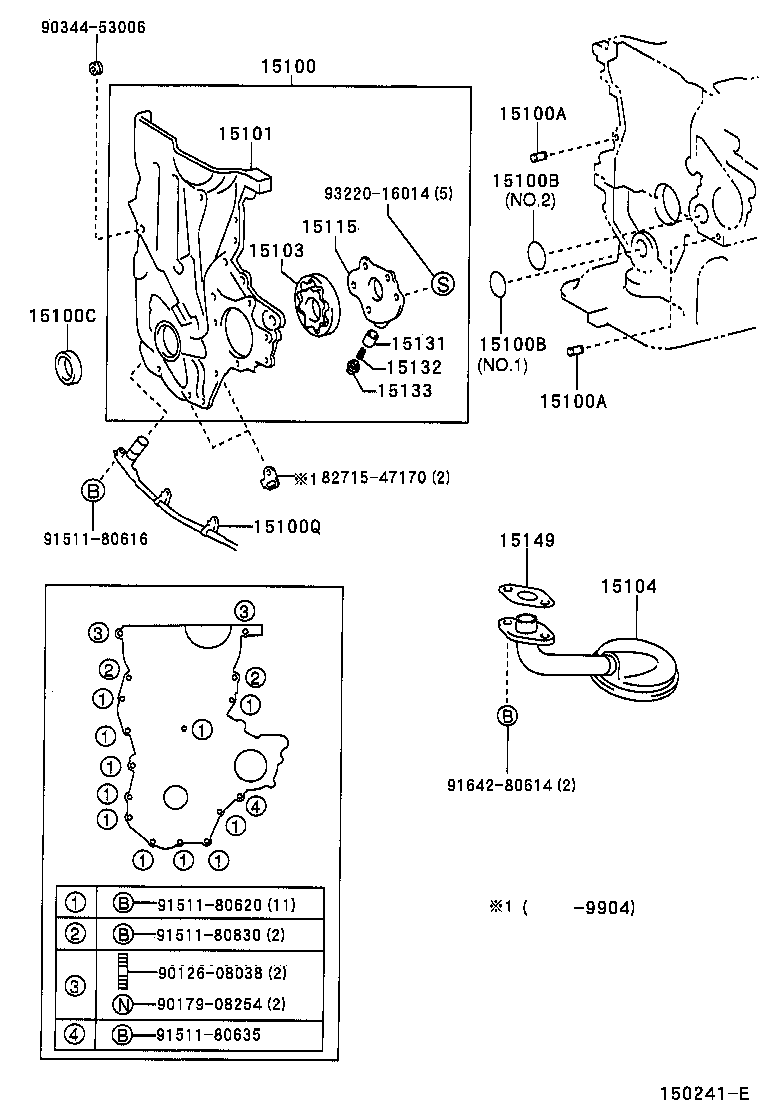

ENGINE OIL PUMP

(9712-0005)

PRIUS | ENGINE OIL PUMP 15100 - PUMP ASSY, OIL 15100A - PIN, RING(FOR OIL PUMP SET) 15100A - PIN, RING(FOR OIL PUMP SET) 15100B - RING, O(FOR OIL PUMP) 15100B - RING, O(FOR OIL PUMP) 15100C - SEAL(FOR OIL PUMP) 15100Q - SENSOR, CRANK POSITION 15101 - BODY SUB-ASSY, OIL PUMP 15103 - GEAR SET, OIL PUMP 15104 - STRAINER SUB-ASSY, OIL 15115 - COVER, OIL PUMP 15131 - VALVE, OIL PUMP RELIEF 15132 - SPRING, OIL PUMP RELIEF VALVE 15133 - PLUG, OIL PUMP RELIEF VALVE 15149 - GASKET, OIL STRAINER FLANGE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
