TOYOTA PROGRES JCG15-AEPVF / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

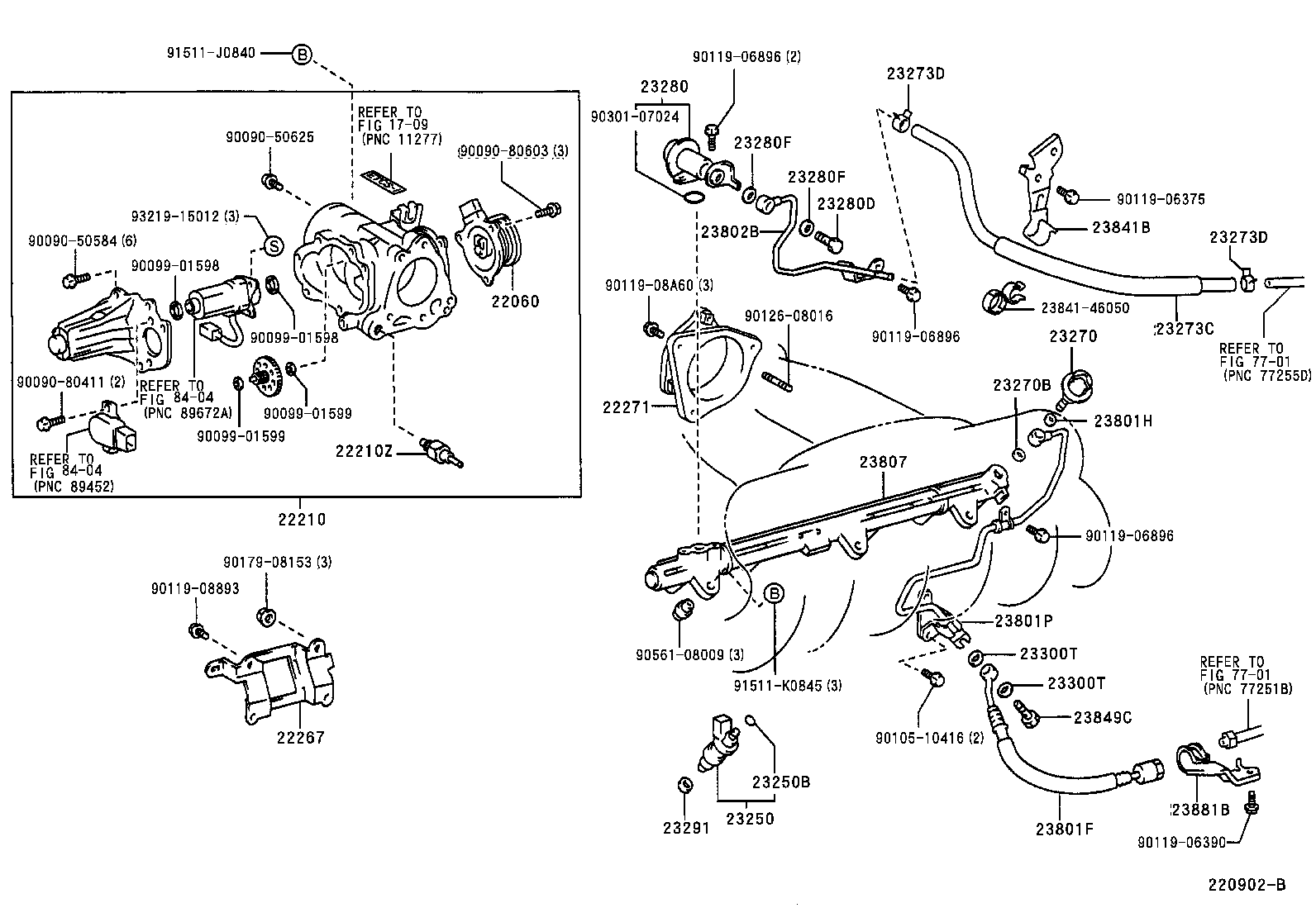

ILLUST NO. 1 OF 2(9912-0104)1JZGE..JCG15

PROGRES | FUEL INJECTION SYSTEM ** Refer Fig 22060 - LEVER ASSY, THROTTLE W/SENSOR 22210 - BODY ASSY, THROTTLE 22210Z - THERMOSTAT, MANIFOLD 22267 - BRACKET, THROTTLE BODY 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23273C - HOSE, FUEL, NO.2 23273D - CLIP(FOR FUEL HOSE NO.2) 23273D - CLIP(FOR FUEL HOSE NO.2) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802B - PIPE SUB-ASSY, FUEL, NO.2 23807 - PIPE SUB-ASSY, FUEL DELIVERY ** Std Part 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) 23881B - BRACKET, FUEL HOSE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
