TOYOTA REGIUS TOURING HIACE RCH42V-SRSDE / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

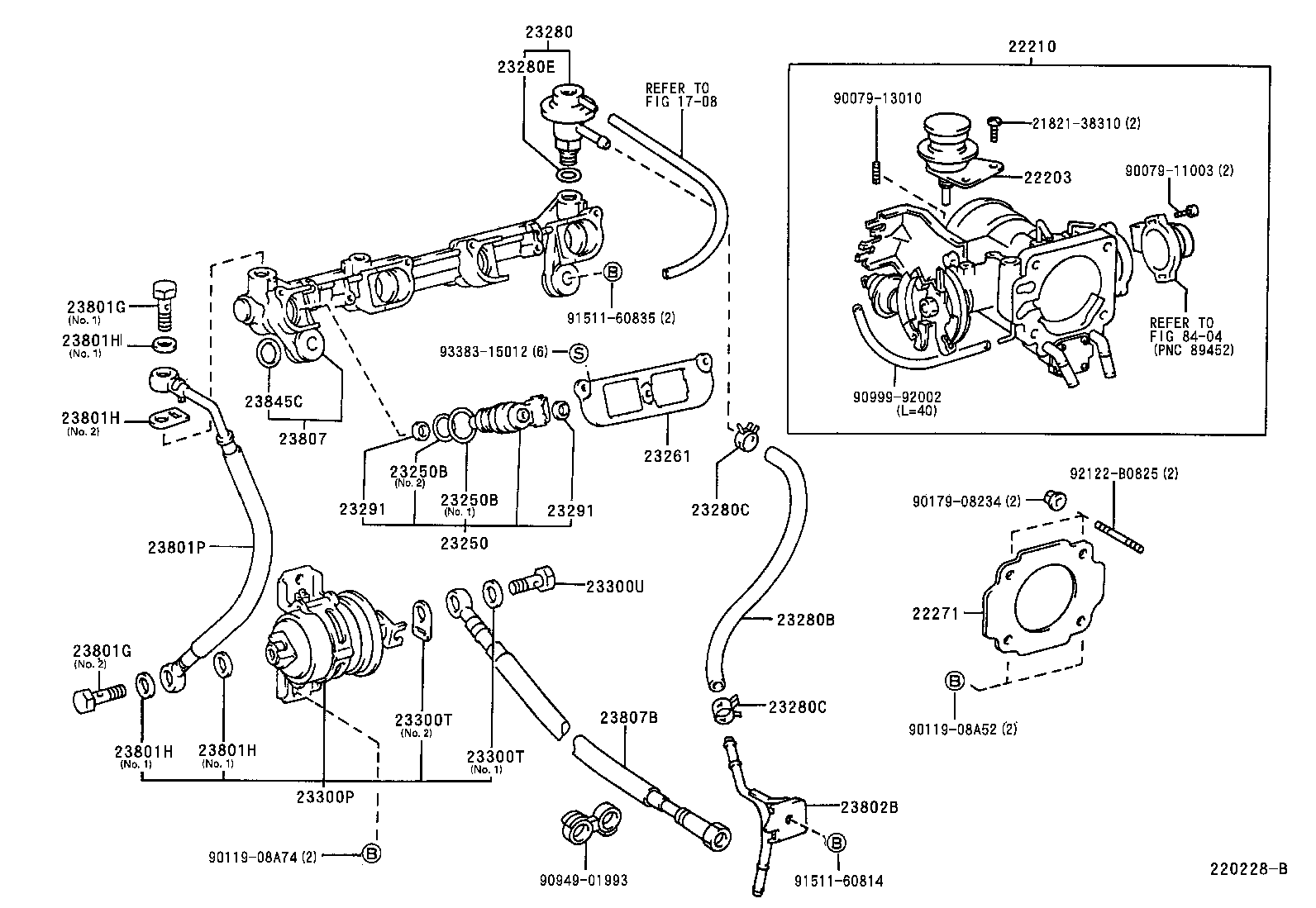

ILLUST NO. 1 OF 2(9706- )1RZE

REGIUS TOURING HIACE | FUEL INJECTION SYSTEM ** Refer Fig ** Std Part 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) 22210 - BODY ASSY, THROTTLE 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250B - RING, O(FOR FUEL INJECTOR) 23261 - COVER, INJECTOR 23280 - REGULATOR ASSY, FUEL PRESSURE 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23291 - INSULATOR, INJECTOR VIBRATION 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23801G - BOLT, UNION(FOR FUEL PIPE) 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802B - PIPE SUB-ASSY, FUEL, NO.2 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807B - HOSE, FUEL DELIVERY PIPE 23845C - INSULATOR, FUEL PIPE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
