TOYOTA SOARER JZZ30-ACMVZ / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

(9105- )

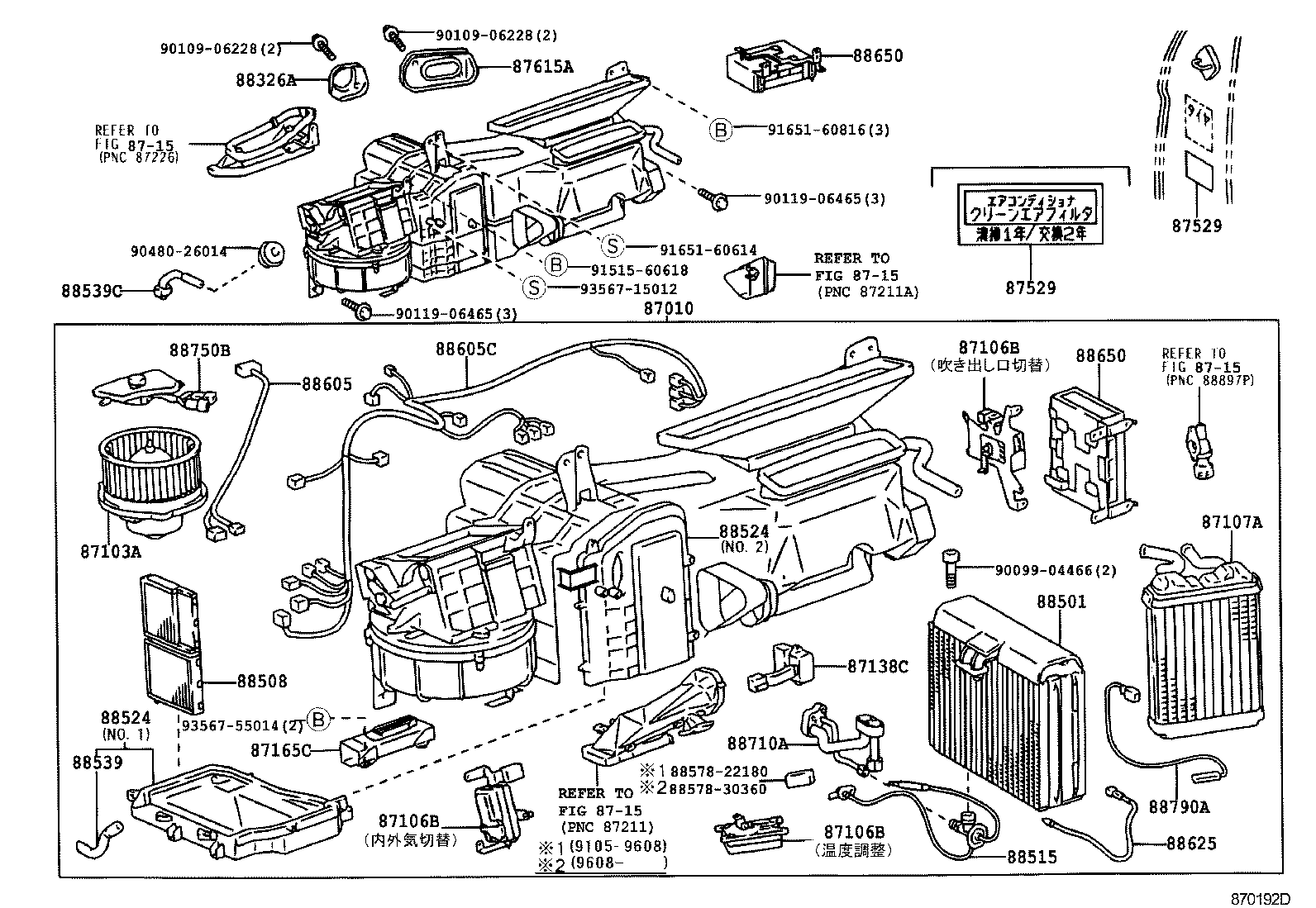

SOARER | HEATING AIR CONDITIONING COOLER UNIT 87010 - UNIT ASSY, AIR CONDITIONER 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87138C - RESISTOR, BLOWER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87165C - CONTROL, BLOWER MOTOR 87529 - PLATE, AIR FILTER CAUTION 87529 - PLATE, AIR FILTER CAUTION 87615A - RETAINER, INSULATOR 88326A - PLATE, COVER 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88508 - FILTER SUB-ASSY, CLEAN AIR 88515 - VALVE, COOLER EXPANSION 88524 - PANEL, COOLING BOX, BOTTOM 88524 - PANEL, COOLING BOX, BOTTOM 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88539C - HOSE, COOLER UNIT DRAIN, NO.2 ** Std Part ** Std Part 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 88625 - THERMISTOR, COOLER, NO.1 88650 - AMPLIFIER ASSY, COOLER STABILIZER 88650 - AMPLIFIER ASSY, COOLER STABILIZER 88710A - TUBE ASSY, AIRCONDITIONER 88750B - TRANSISTOR ASSY, BLOWER RESISTOR 88790A - SENSOR, THERMO ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
