TOYOTA CROWN CROWN MAJESTA GS171-AEPSK / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VALVE BODY OIL STRAINER ATM

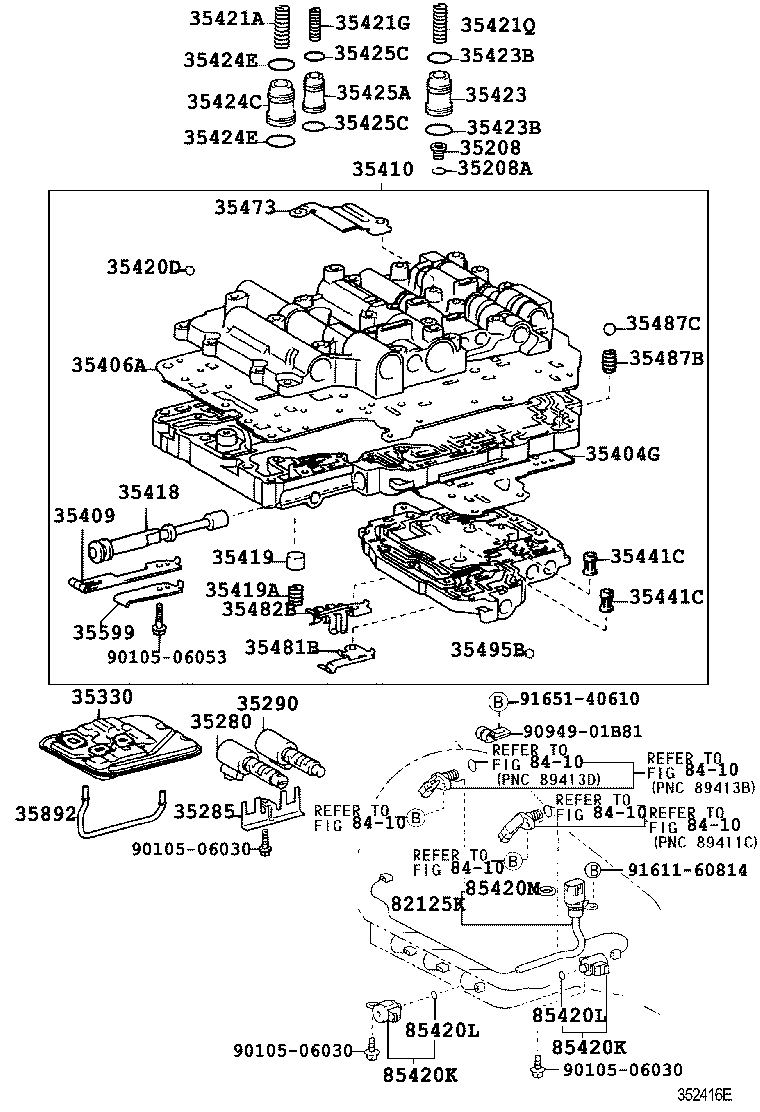

A42DE ILLUST NO. 1 OF 4(9909-0108)GS171

CROWN CROWN MAJESTA | VALVE BODY OIL STRAINER ATM 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) 35280 - SOLENOID ASSY, LOCK UP CONTROL 35285 - PLATE, SOLENOID LOCK 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL 35330 - STRAINER ASSY, VALVE BODY OIL 35404G - PLATE SUB-ASSY, VALVE BODY, NO.2 35406A - PLATE SUB-ASSY, VALVE BODY 35409 - SPRING SUB-ASSY, MANUAL DETENT 35410 - BODY ASSY, TRANSMISSION VALVE 35418 - VALVE, MANUAL 35419 - VALVE, CHECK, NO.1 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35420D - BALL (FOR LOWER VALVE BODY) 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) 35423 - PISTON, B-2 ACCUMULATOR 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35424C - PISTON, C-1 ACCUMULATOR 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35441C - STRAINER, SOLENOID OIL 35441C - STRAINER, SOLENOID OIL 35473 - COVER, TRANSMISSION VALVE BODY 35481B - CLAMP, VALVE BODY WIRE HARNESS 35482B - CLAMP, TEMPERATURE SENSOR 35487B - BALL, CHECK, NO.4 35487C - SPRING, COMPRESSION (FOR CHECK BALL) 35495B - BALL, CHECK, NO.1 35599 - COVER, MANUAL DETENT SPRING 35892 - TUBE, OVERDRIVE BRAKE 82125K - WIRE, TRANSMISSION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85420K - SOLENOID ASSY, TRANSMISSION 85420K - SOLENOID ASSY, TRANSMISSION 85420L - RING, O(FOR TRANSMISSION SOLENOID) 85420L - RING, O(FOR TRANSMISSION SOLENOID) 85420M - RING, O(FOR SPEED SENSOR) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
