TOYOTA DYNA TOYOACE XZU411-TPFMS3 / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

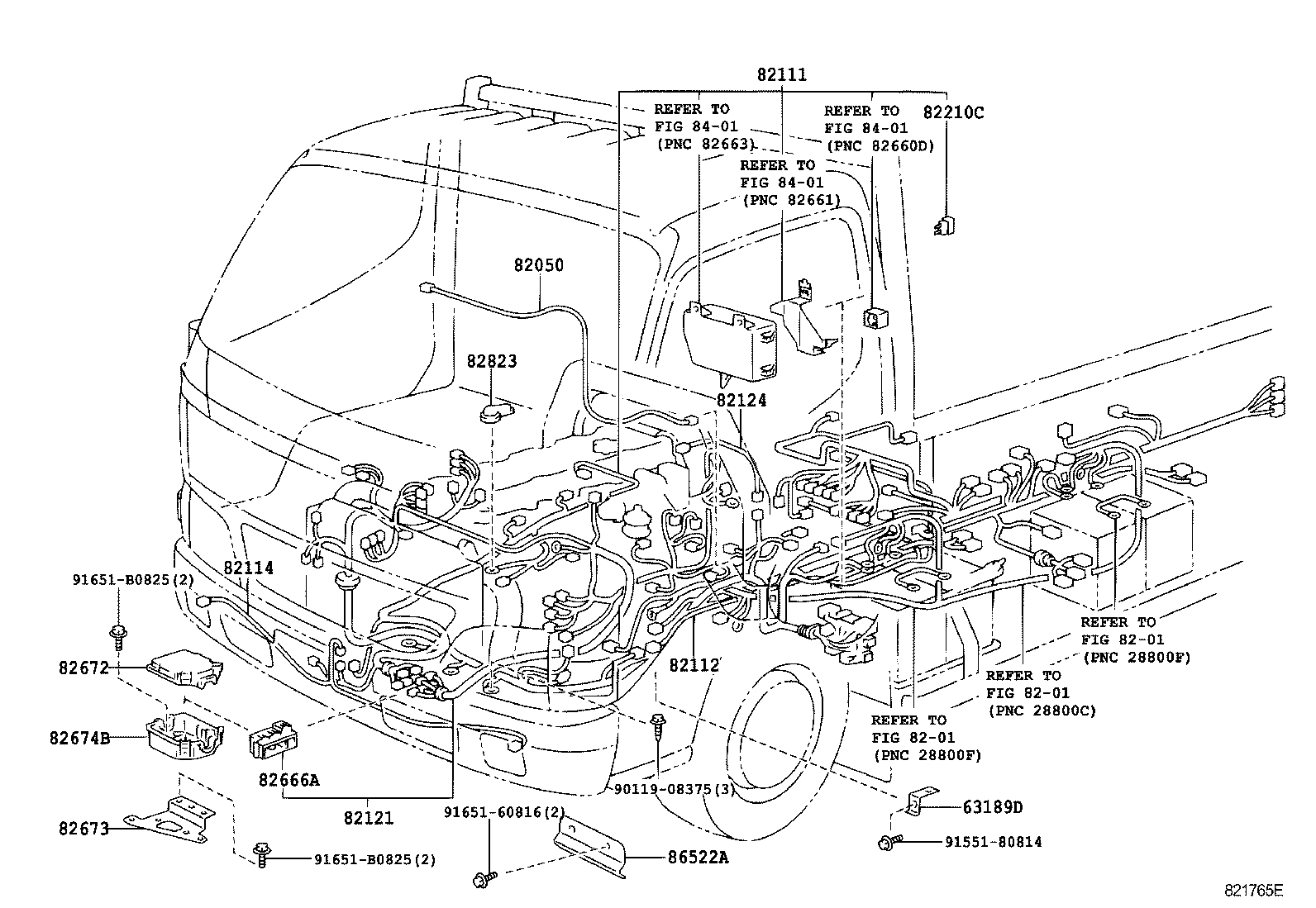

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 1 OF 6(9905-0406)XZU382,401,402,411,412,421..DSL,DSLL

DYNA TOYOACE | WIRING CLAMP 63189D - BRACKET, WIRING HARNESS CONNECTOR ** Refer Fig ** Refer Fig ** Refer Fig 82050 - WIRE ASSY, ENGINE 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82114 - WIRE, ENGINE ROOM, NO.4 82121 - WIRE, ENGINE 82124 - WIRE, ENGINE, NO.4 82210C - FUSIBLE LINK 82666A - HOLDER, CONNECTOR NO.2 82672 - COVER, JUNKTION BLOCK 82673 - BRACKET, JUNCTION BLOCK 82674B - COVER, JUNCTION BLOCK, LOWER 82823 - CAP, TERMINAL, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig 86522A - PROTECTOR, HORN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
