TOYOTA HILUX RZN147-TRMDE3 / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

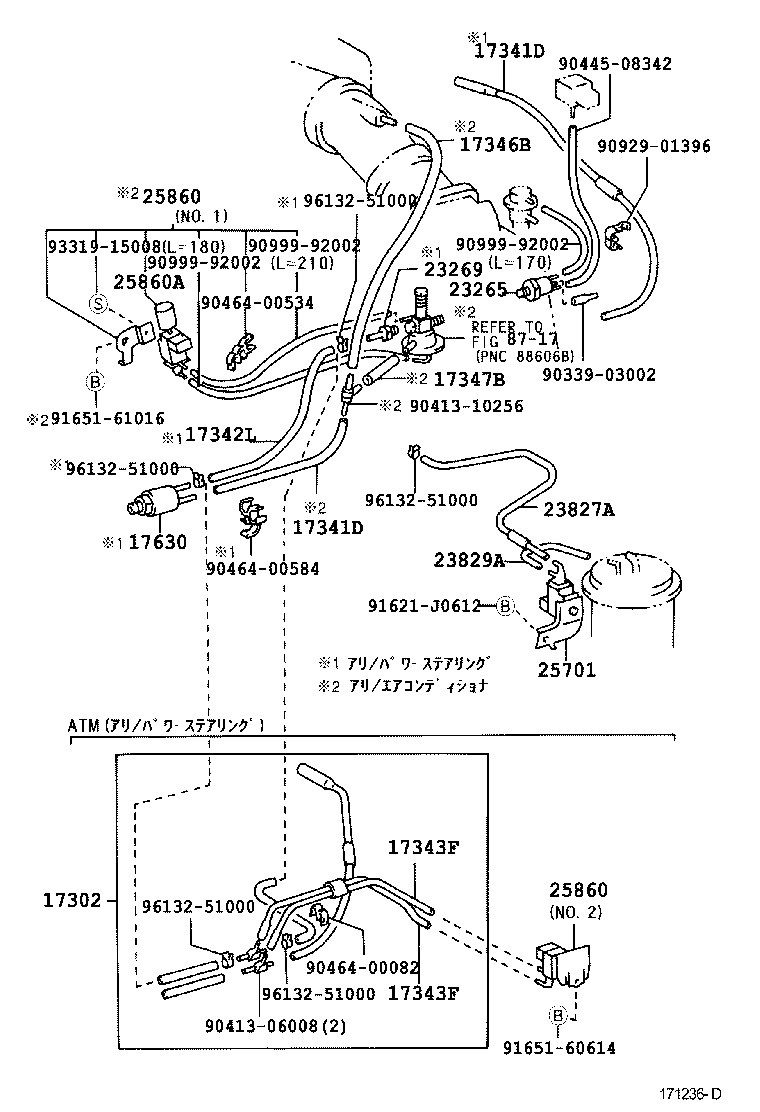

VACUUM PIPING

(9708-0308)1RZE

 HILUX |  VACUUM PIPING 17302 - HOSE SUB-ASSY, AIR 17341D - HOSE, NO.1(FOR IDLE-UP) 17341D - HOSE, NO.1(FOR IDLE-UP) 17342L - HOSE, AIR, NO.2 17343F - HOSE, AIR, NO.3 17343F - HOSE, AIR, NO.3 17346B - HOSE, AIR, NO.6 17347B - HOSE, AIR, NO.7 17630 - VALVE ASSY, AIR CONTROL 23265 - FILTER, GAS, NO.1 23269 - UNION(FOR GAS FILTER) 23827A - HOSE, FUEL VAPOR FEED, NO.2 23829A - HOSE, FUEL VAPOR FEED 25701 - VALVE SET, EMISSION CONTROL 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860A - VALVE, VACUUM SWITCHING, NO.1 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
