TOYOTA QUICK DELI URBAN SUP BU280K-QLQDC / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VANE PUMP RESERVOIR POWER STEERING

(0001-0610)LPG

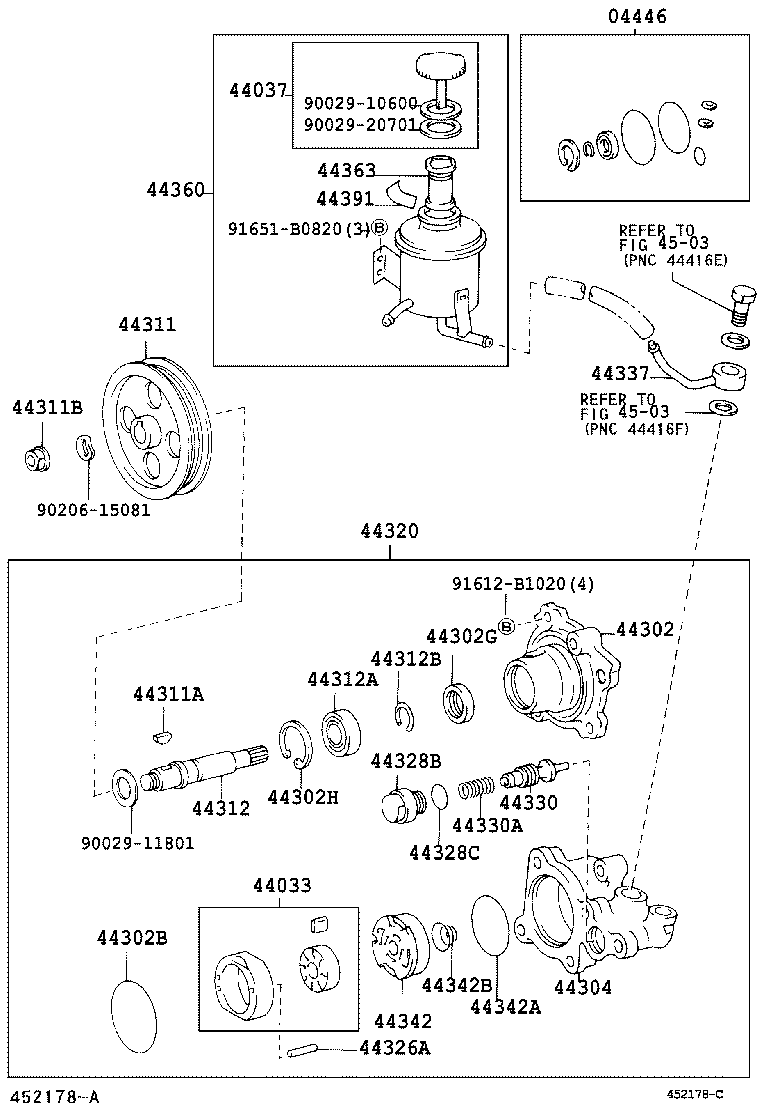

QUICK DELI URBAN SUP | VANE PUMP RESERVOIR POWER STEERING 04446 - GASKET KIT, POWER STEERING PUMP 44033 - ROTOR SUB-ASSY, W/CAM & VANE 44037 - COVER SUB-ASSY, OIL RESERVOIR 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR 44311 - PULLEY, VANE PUMP 44311A - KEY, VANE PUMP PULLEY 44311B - NUT(FOR VANE PUMP PULLEY) 44312 - SHAFT, VANE PUMP 44312A - BEARING(FOR VANE PUMP SHAFT) 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 44320 - PUMP ASSY, VANE 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44328B - END, VANE PUMP HOUSING 44328C - RING, O(FOR PUMP HOUSING END) 44330 - VALVE ASSY, FLOW CONTROL 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44337 - UNION, POWER STEERING SUCTION PORT 44342 - PLATE, VANE PUMP SIDE, REAR 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) 44360 - RESERVOIR ASSY, VANE PUMP OIL 44363 - STRAINER, OIL(FOR VANE PUMP) 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
