TOYOTA QUICK DELI URBAN SUP BU280K-QLQDC / TOOL-ENGINE-FUEL / LPG CARBURETOR FUEL PIPE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

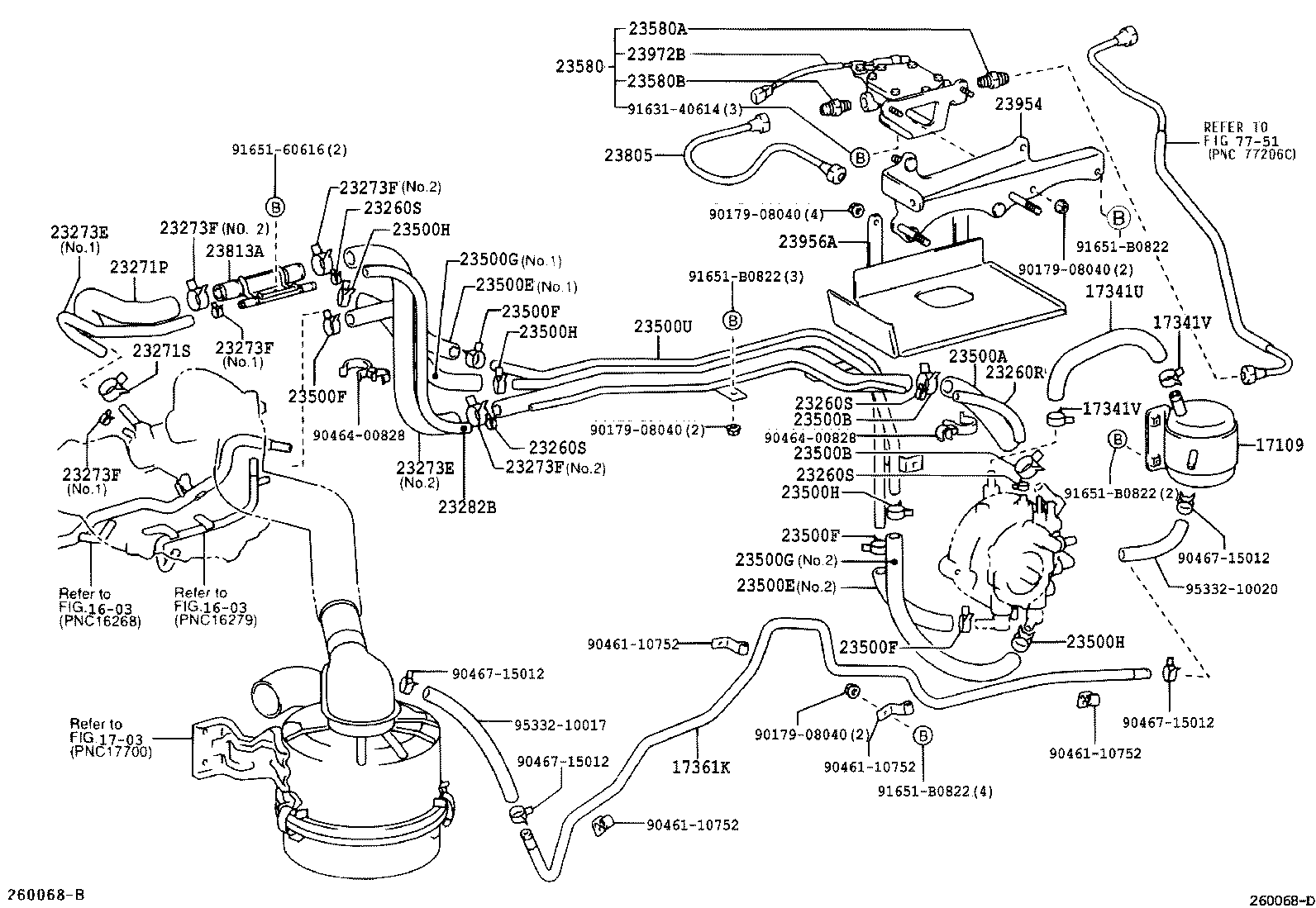

LPG CARBURETOR FUEL PIPE

(0001-0306)3RZFPE

QUICK DELI URBAN SUP | LPG CARBURETOR FUEL PIPE ** Refer Fig ** Refer Fig ** Refer Fig 17109 - TANK SUB-ASSY, INTAKE AIR SURGE 17341U - HOSE, AIR, NO.1(FOR LPG REGULATOR) 17341V - CLIP(FOR LPG REGULATOR AIR HOSE) 17341V - CLIP(FOR LPG REGULATOR AIR HOSE) 17361K - TUBE, AIR(FOR LPG REGULATOR) 23260R - HOSE, LPG INJECTOR 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) 23271P - HOSE, FUEL, NO.1(FOR REGULATOR TO FUEL PIPE) 23271S - CLAMP OR CLIP(FOR FUEL HOSE NO.1) 23273E - HOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR) 23273E - HOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR) 23273F - CLAMP OR CLIP(FOR FUEL HOSE NO.3) 23273F - CLAMP OR CLIP(FOR FUEL HOSE NO.3) 23273F - CLAMP OR CLIP(FOR FUEL HOSE NO.3) 23273F - CLAMP OR CLIP(FOR FUEL HOSE NO.3) 23273F - CLAMP OR CLIP(FOR FUEL HOSE NO.3) 23282B - HOSE, FUEL, NO.4 (FOR LPG FUEL PIPE TO LPG CARBURETOR) 23500A - HOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) 23500B - CLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) 23500B - CLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) 23500E - HOSE, WATER(FOR LPG REGULATOR INLET) 23500E - HOSE, WATER(FOR LPG REGULATOR INLET) 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) 23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET) 23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET) 23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE) 23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE) 23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE) 23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE) 23500U - PIPE, WATER BY-PASS, NO.2(FOR LPG) 23580 - PREHEATER ASSY, LPG 23580A - UNION, FUEL PIPE(FOR INLET) 23580B - UNION, FUEL PIPE(FOR OUTLET) 23805 - PIPE SUB-ASSY, LPG REGULATOR 23813A - PIPE, LPG FUEL 23954 - BRACKET, LPG REGULATOR 23956A - COVER, LPG REGULATOR 23972B - BRACKET, LPG PREHEATER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
