TOYOTA ORIGIN JCG17-BEPXF / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

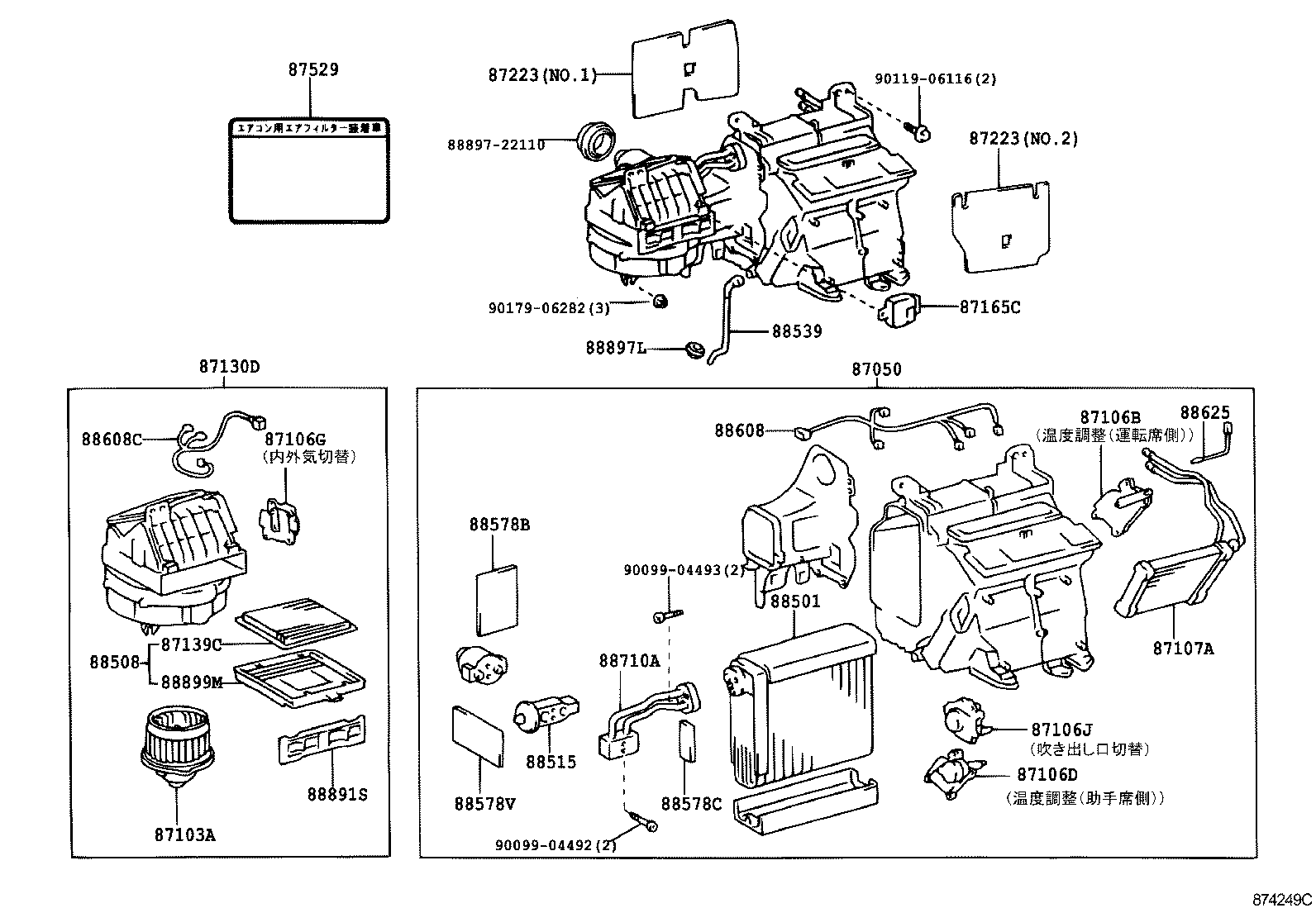

HEATING AIR CONDITIONING COOLER UNIT

ILLUST NO. 1 OF 2(0008- )

ORIGIN | HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) 87106D - SERVO SUB-ASSY, DAMPER, NO.1 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87130D - BLOWER ASSY 87139C - FILTER, CLEAN AIR 87165C - CONTROL, BLOWER MOTOR 87223 - PAD, AIR DUCT 87223 - PAD, AIR DUCT 87529 - PLATE, AIR FILTER CAUTION 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88508 - FILTER SUB-ASSY, CLEAN AIR 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88578B - PACKING, COOLING UNIT, NO.1 88578C - PACKING, COOLING UNIT, NO.2 88578V - PACKING, COOLING UNIT, NO.3 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 88625 - THERMISTOR, COOLER, NO.1 88710A - TUBE ASSY, AIRCONDITIONER 88891S - COVER, COOLER, NO.1 ** Std Part 88897L - GROMMET (FOR DRAIN HOSE) 88899M - PLATE, COVER(FOR AIR FILTER) ** Std Part ** Std Part ** Std Part ** Std Part
