TOYOTA REGIUS TOURING HIACE RCH42V-SRSDE / TOOL-ENGINE-FUEL / TIMING GEAR COVER REAR END PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

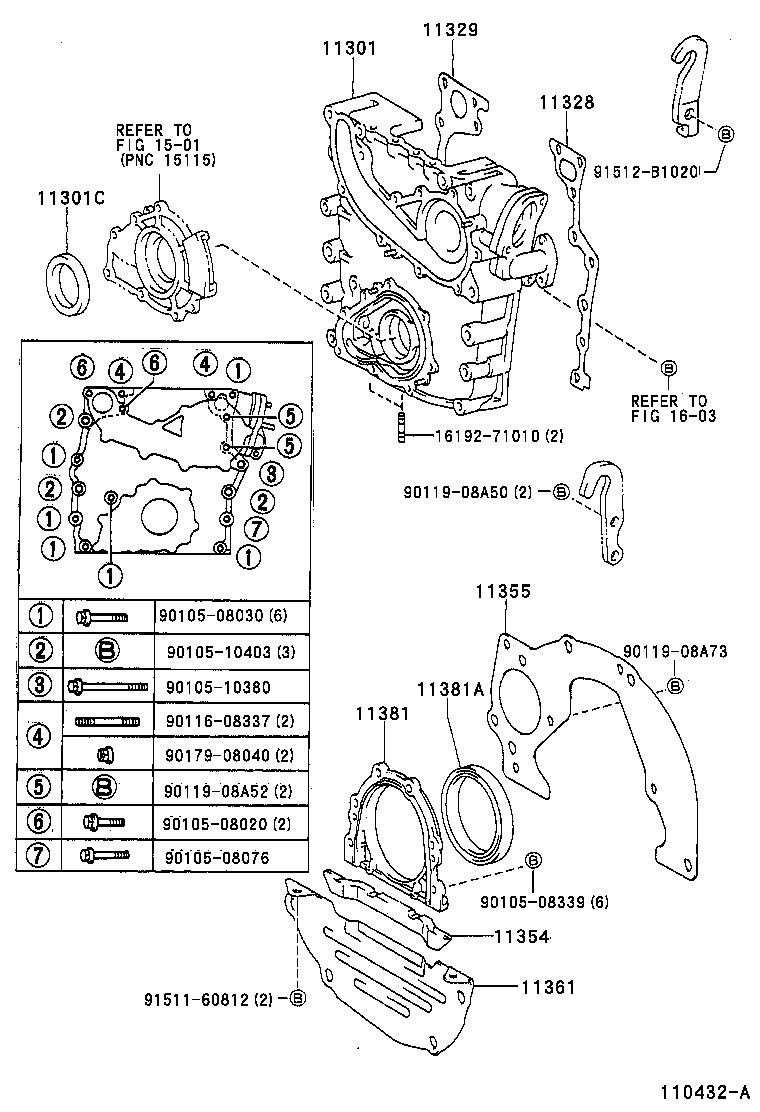

TIMING GEAR COVER REAR END PLATE

(9706- )1RZE

REGIUS TOURING HIACE | TIMING GEAR COVER REAR END PLATE 11301 - CASE SUB-ASSY, TIMING GEAR 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) 11328 - GASKET, TIMING GEAR OR CHAIN COVER 11329 - GASKET, TIMING GEAR REAR COVER 11354 - SEAL, FLYWHEEL HOUSING DUST 11355 - PLATE, REAR END 11361 - COVER, FLYWHEEL HOUSING UNDER 11381 - RETAINER, ENGINE REAR OIL SEAL 11381A - SEAL, ENGINE REAR OIL ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
