TOYOTA ALTEZZA ALTEZZA GITA SXE10-AEFVF / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

VINSB1ED76L00E071131
Build Date07/2011
ModelADT270L-AWFEYW
BodyWG WAGON
SpecificationWG LEFT-HAND DRIVE VEHICLES
GradeSOL SOL TYPE
MarketEU EUROPE
Engine1ADFTV 2000CC DIESEL TURBO
Fuel systemDCR DIESEL COMMON RAIL INJECTION SYSTEM
TransimissionMTM MANUAL TRANSMISSION
Gear Shift Type6F MTM, 6-SPEED FLOOR SHIFT
Frame NumberADT270-E071131
Color Code1F7 Classic Silver Metallic
Trim CodeFA20

Toyota - LEXUS genuine parts

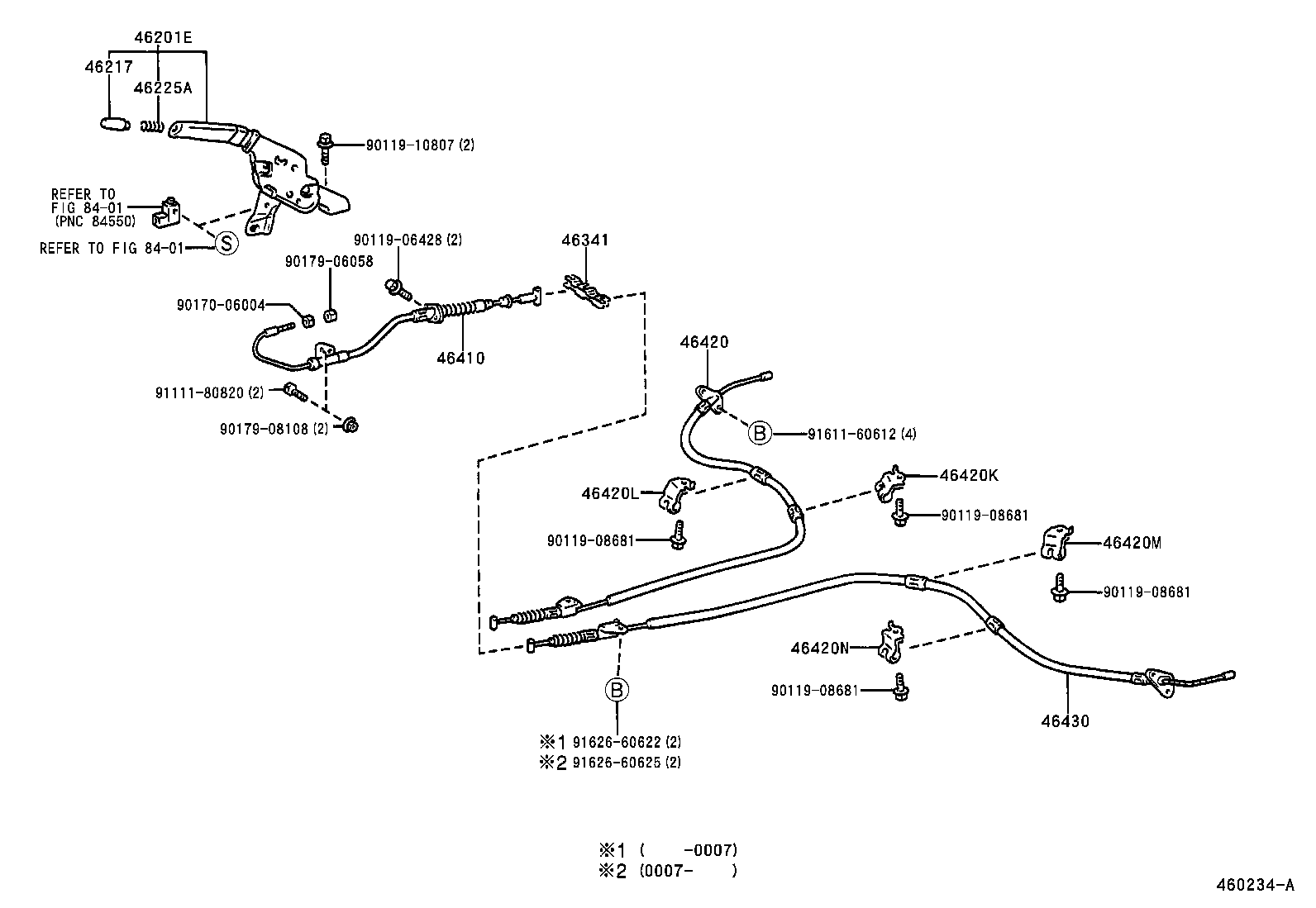

PARKING BRAKE CABLE

ILLUST NO. 1 OF 2(9810- )

ALTEZZA ALTEZZA GITA | PARKING BRAKE CABLE 46201E - LEVER SUB-ASSY, PARKING BRAKE 46217 - KNOB, PARKING BRAKE RELEASE ROD 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) 46341 - EQUALIZER, PARKING BRAKE 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) 46420M - CLAMP, NO.6(FOR PARKING BRAKE CABLE) 46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
