TOYOTA CALDINA ST246W-DWPZZ / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CYLINDER HEAD

(0209- )3SGTE

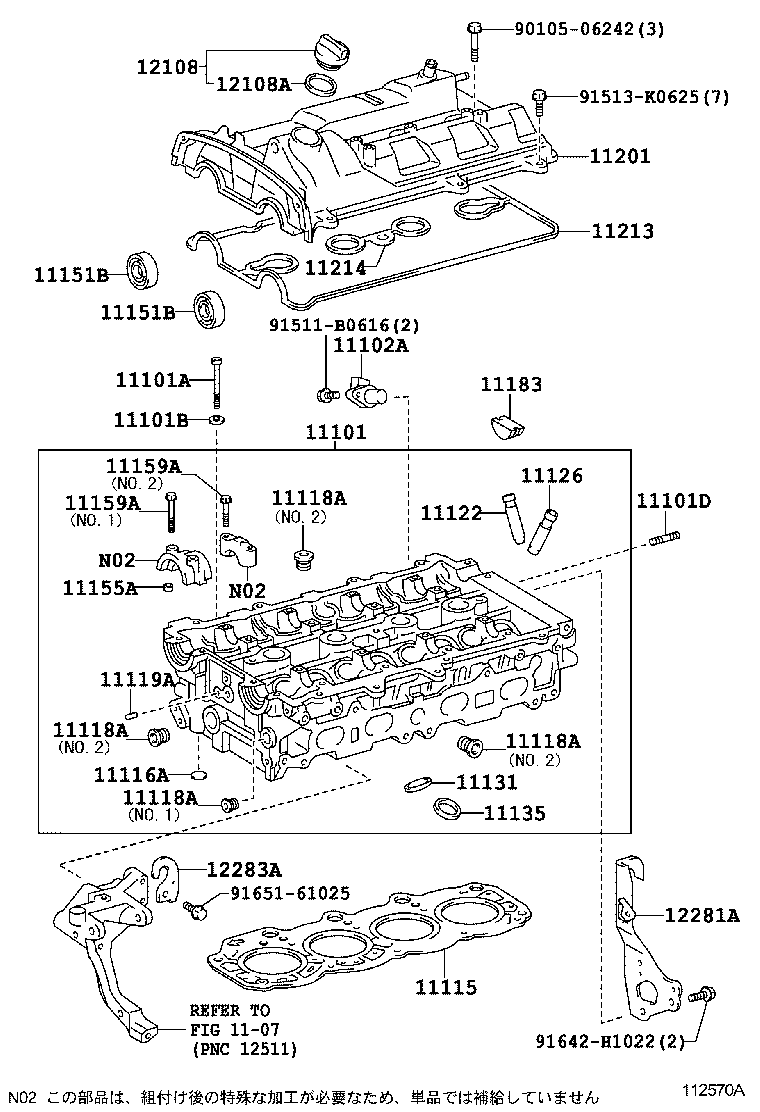

CALDINA | CYLINDER HEAD ** Refer Fig 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101D - BOLT, STUD(FOR WATER OUTLET) 11102A - SENSOR, CAMSHAFT POSITION 11115 - GASKET, CYLINDER HEAD 11116A - PLUG, TIGHT, NO.1 11118A - PLUG, STRAIGHT, NO.1 11118A - PLUG, STRAIGHT, NO.1 11118A - PLUG, STRAIGHT, NO.1 11118A - PLUG, STRAIGHT, NO.1 11119A - PIN, STRAIGHT, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) 11155A - PIN, RING W/HEAD 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11183 - PLUG, SEMICIRCULAR 11201 - COVER SUB-ASSY, CYLINDER HEAD 11213 - GASKET, CYLINDER HEAD COVER 11214 - GASKET, CYLINDER HEAD COVER, NO.2 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12281A - HANGER, ENGINE, NO.1 12283A - HANGER, ENGINE, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
