TOYOTA GAIA SXM15G-BPSEK / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

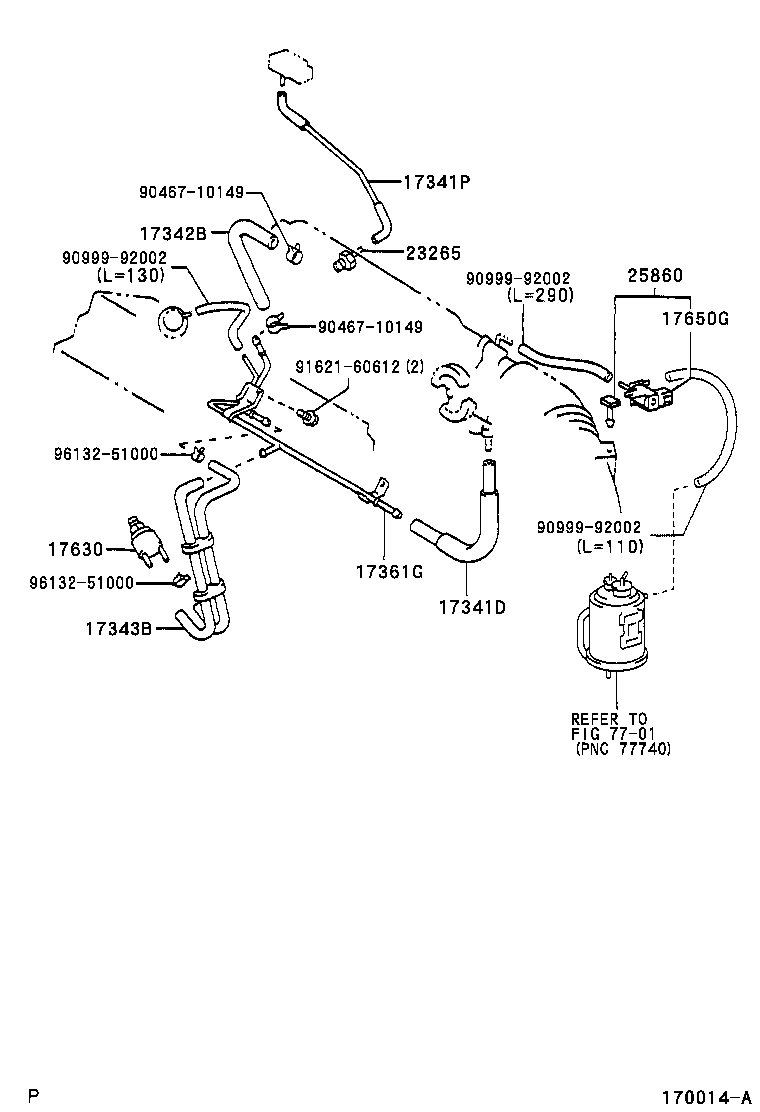

VACUUM PIPING

(9805- )3SFE

 GAIA |  VACUUM PIPING 17341D - HOSE, NO.1(FOR IDLE-UP) 17341P - HOSE, AIR 17342B - HOSE, NO.2(FOR IDLE-UP) 17343B - HOSE, NO.3(FOR IDLE-UP) 17361G - TUBE, AIR(FOR IDLE-UP) 17630 - VALVE ASSY, AIR CONTROL 17650G - VALVE, DUTY VACUUM SWITCHING 23265 - FILTER, GAS, NO.1 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
