TOYOTA HILUX LN167-PRMDS / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

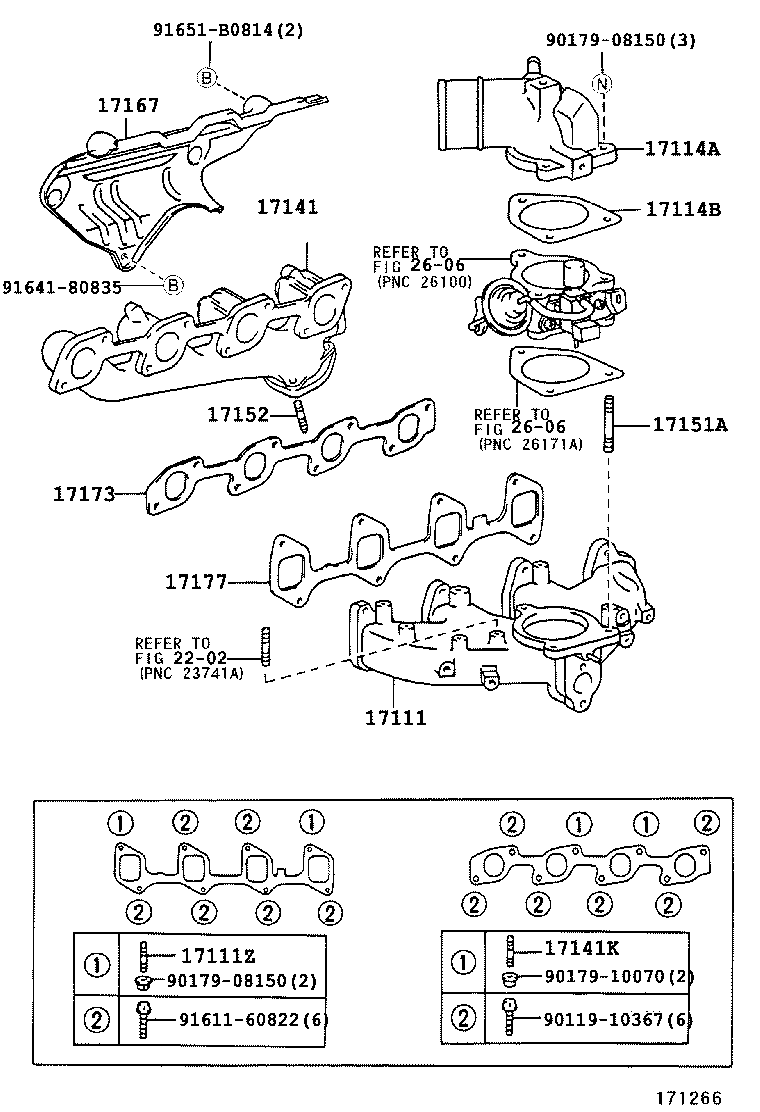

MANIFOLD

(9708- )5L

 HILUX |  MANIFOLD 17111 - MANIFOLD, INTAKE 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 17114A - FLANGE, INTAKE 17114B - GASKET, INTAKE FLANGE 17141 - MANIFOLD, EXHAUST 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) 17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI) 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
