TOYOTA PRONARD MCX20-AESGK / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

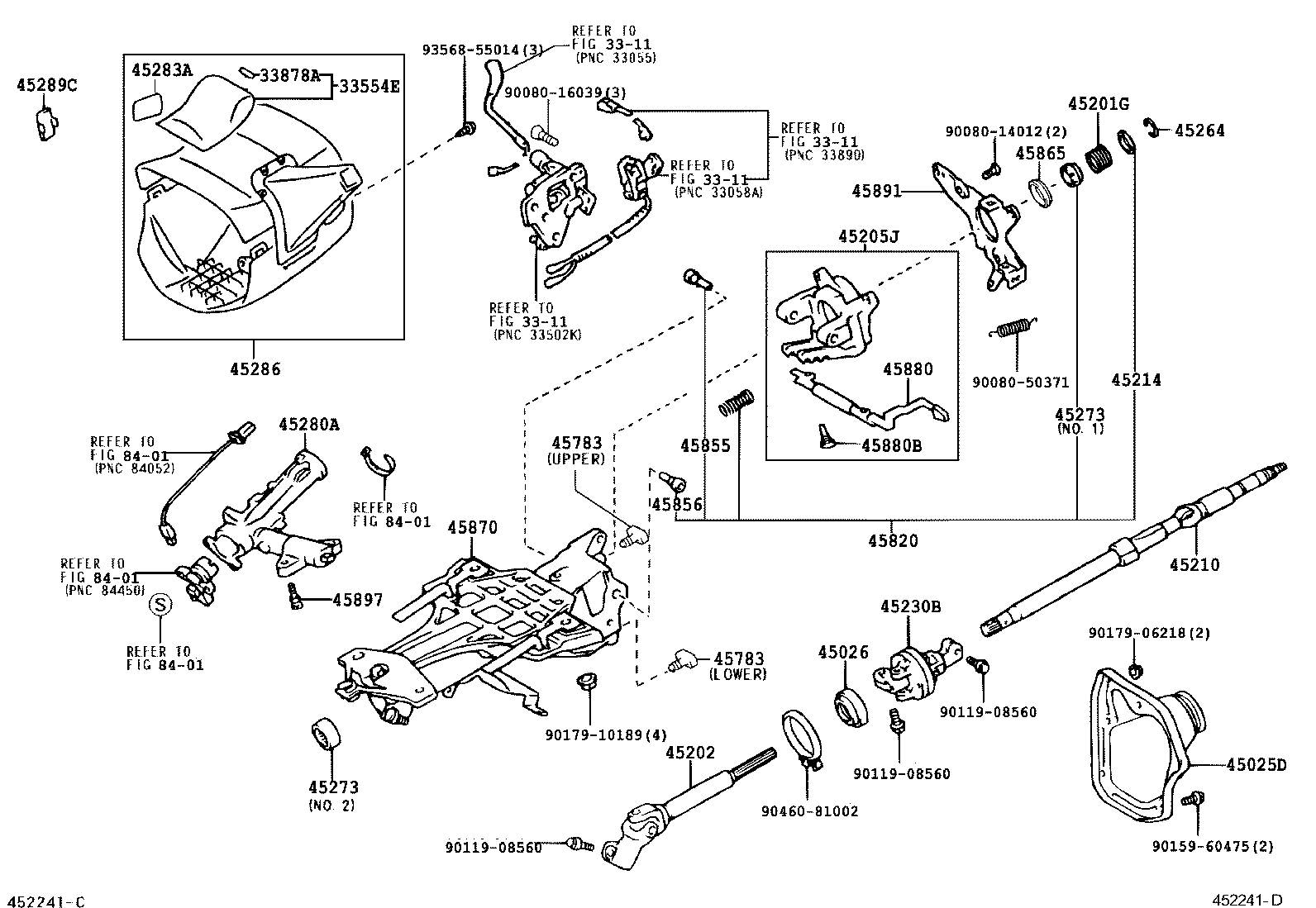

STEERING COLUMN SHAFT

(0002- )4HC

PRONARD | STEERING COLUMN SHAFT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 33554E - COVER, SHIFT LOCK RELEASE BUTTON 33878A - LABEL, SHIFT LOCK INFORMATION, NO.2 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER 45210 - SHAFT ASSY, STEERING MAIN 45214 - RETAINER, MAIN SHAFT SPRING 45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL 45264 - RING, STEERING COLUMN, NO.2 45273 - BUSH, STEERING MAIN SHAFT 45273 - BUSH, STEERING MAIN SHAFT 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION 45286 - COVER, STEERING COLUMN 45289C - COVER, STEERING COLUMN, LWR NO.2 45783 - STOPPER, TILT STEERING, NO.1 45783 - STOPPER, TILT STEERING, NO.1 45820 - SPRING ASSY, TILT STEERING SUPPORT 45855 - BOLT, TILT STEERING, NO.1 45856 - BOLT, TILT STEERING, NO.2 45865 - COLLAR, STEERING MAIN SHAFT 45870 - TUBE ASSY, STEERING COLUMN 45880 - LEVER ASSY, STEERING TILT 45880B - SCREW(FOR STEERING TILT LEVER) 45891 - BRACKET, TURN SIGNAL 45897 - BOLT, STEERING LOCK SET ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
